66.03.00 - Front Coque Elements

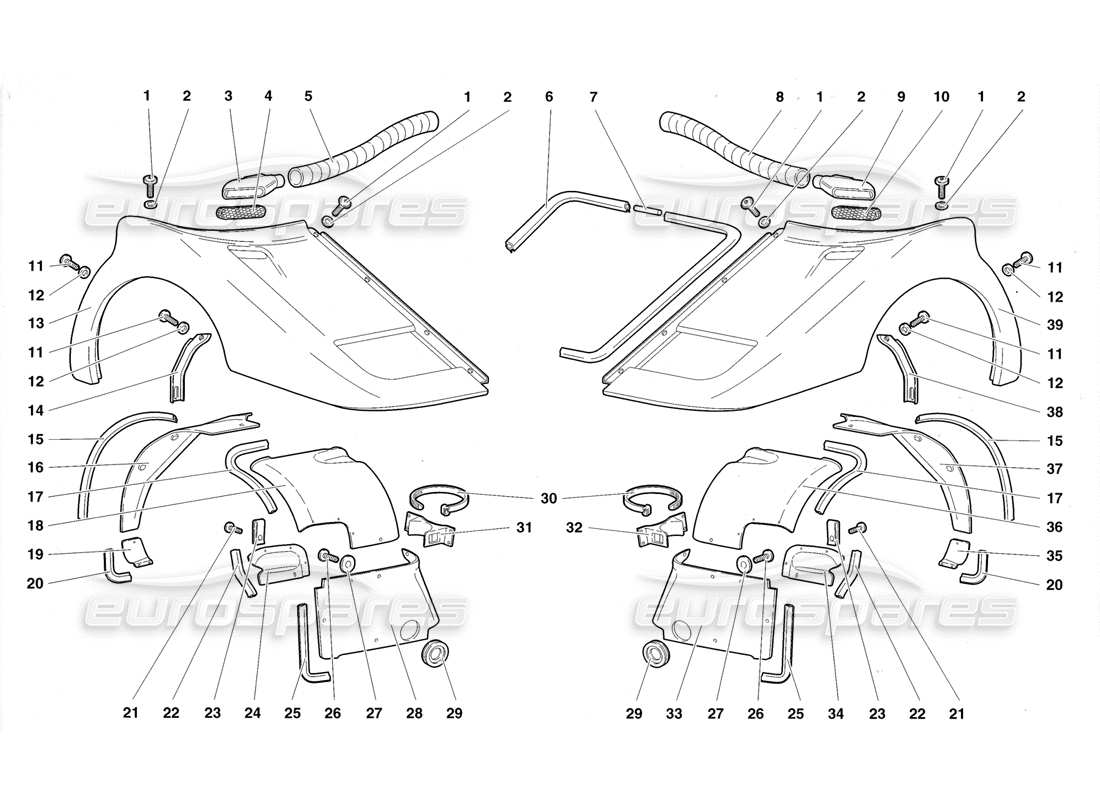

Lamborghini Diablo Roadster (1998) Front Coque Elements Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008700685
SCREW
VITE
Supersession
Supersession
# 002
MPN: 008400629
WASHER
RONDELLA
from £0.89
from £0.89
# 003
MPN: 009453002
RIGHT AIR INTAKE
PRESA D'ARIA DX
from £282.73
from £282.73
# 004
MPN: 009430122
RIGHT NET
RETE DX
from £62.51
from £62.51
# 005
MPN: 009453129
RIGHT PIPE
TUBO DX
from £174.12
from £174.12
# 006
MPN: 009490111
GASKET
Guarnizione
from £25.17
from £25.17
# 007
MPN: 009490112
JOINING SLEEVE
CONNECTION ELEMENT
from £14.80
from £14.80
# 008
MPN: 009453130
LEFT PIPE
TUBO SX
from £189.05
from £189.05
# 009
MPN: 009453003
LEFT AIR INTAKE
PRESA D'ARIA SX
from £574.58
from £574.58
# 010
MPN: 009430123
LEFT NET
RETESX
from £60.87
from £60.87
# 011
MPN: 008100601
SCREW
VITE
Supersession
Supersession
# 012
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 013
MPN: 009410000
R. FR.MUDGU./FEN.
PARAFANGO ANT. DX
from £4,510.36
from £4,510.36
# 013
MPN: 009410000
R. FR.MUDGU./FEN.
(Valid for U.S.A. 1998) PARAFANGO ANT. DX
from £4,510.36
from £4,510.36
# 013
MPN: 009410000
R. FR.MUDGU./FEN.
(Valid for CANADA 1998) PARAFANGO ANT. DX
from £4,510.36
from £4,510.36
# 013
MPN: 009410000A
REPAIR PANEL
RIGHT
from £624.75
from £624.75
# 014
MPN: 009410109
RIGHT BRACKET
STAFFA DX
from £145.70
from £145.70
# 015
MPN: 009411410
GASKET
Guarnizione
from £57.13
from £57.13
# 016
MPN: 009411402
FR. WHEELBOX
PASSARUOTA ANT. DX POST.
from £210.55
from £210.55
# 017
MPN: 009411417
GASKET
Guarnizione
from £45.74
from £45.74
# 018
MPN: 009411401
FR. WHEELBOX
PASSARUOTA ANT. DX SUP.
from £1,067.84
from £1,067.84
# 019
MPN: 009411425
RIGHT PANEL
PANNELLO DX
from £53.65
from £53.65
# 020
MPN: 009411427
GASKET
Guarnizione
from £38.77
from £38.77
# 021
MPN: 008700455
SCREW
VITE
Supersession
Supersession
# 022
MPN: 009411416
GASKET
Guarnizione
from £24.46
from £24.46
# 023
MPN: WHT000916A
CLIP
MOLLETTA
from £9.30
from £9.30
# 024
MPN: 009411412
RIGHT LID INSPECTION
SPORTELLO ISPEZIONE DX
from £50.76
from £50.76
# 025
MPN: 009411408
GASKET
Guarnizione
from £10.45
from £10.45
# 026
MPN: 008700659
SCREW
VITE
from £0.48
from £0.48
# 027
MPN: 008400623
WASHER
RONDELLA
Supersession
Supersession
# 028
MPN: 009411423
RIGHT FR. WHEELBOX
PASSARUOTA ANT. DX
from £123.96
from £123.96
# 029
MPN: 009411418
GASKET
Guarnizione
from £19.15
from £19.15
# 030
MPN: 008830306
STRAP
FASCETTA
Supersession
Supersession
# 031
MPN: 410805890
RIGHT RETAINER
CAVALLOTTO DX
from £198.01
from £198.01
# 032
MPN: 009411422
LEFT RETAINER
CAVALLOTTO SX
Supersession
Supersession
# 033
MPN: 009411424
LEFT FR. WHEELBOX
PASSARUOTA ANT. SX
from £123.96
from £123.96
# 034
MPN: 009411413
LEFT LID INSPECTION
SPORTELLO ISPEZIONE SX
from £50.76
from £50.76
# 035
MPN: 009411426
LEFT PANEL
PANNELLO SX
from £49.03
from £49.03
# 036
MPN: 009411404
FR. WHEELBOX
PASSARUOTA ANT. SX SUP.
from £1,067.84
from £1,067.84
# 037
MPN: 009411405
FR. WHEELBOX
PASSARUOTA ANT. SX POST.
from £499.76
from £499.76
# 038
MPN: 009410110
LEFT BRACKET
STAFFA SX
from £145.70
from £145.70
# 039
MPN: 009410001
LEFT FR.MUDGU./FEN.
PARAFANGO ANT. SX
from £2,480.70
from £2,480.70
# 039
MPN: 009410001
LEFT FR.MUDGU./FEN.
(Valid for U.S.A.1998) PARAFANGO ANT. SX
from £2,480.70
from £2,480.70
# 039
MPN: 009410001
LEFT FR.MUDGU./FEN.
(Valid for CANADA.1998) PARAFANGO ANT. SX
from £2,480.70
from £2,480.70
# 039
MPN: 009410001A
REPAIR PANEL
LEFT
from £1,295.00
from £1,295.00
