lamborghini diablo roadster (1998) coque elements -right flank parts diagram

66.05.00 - Coque Elements -Right Flank

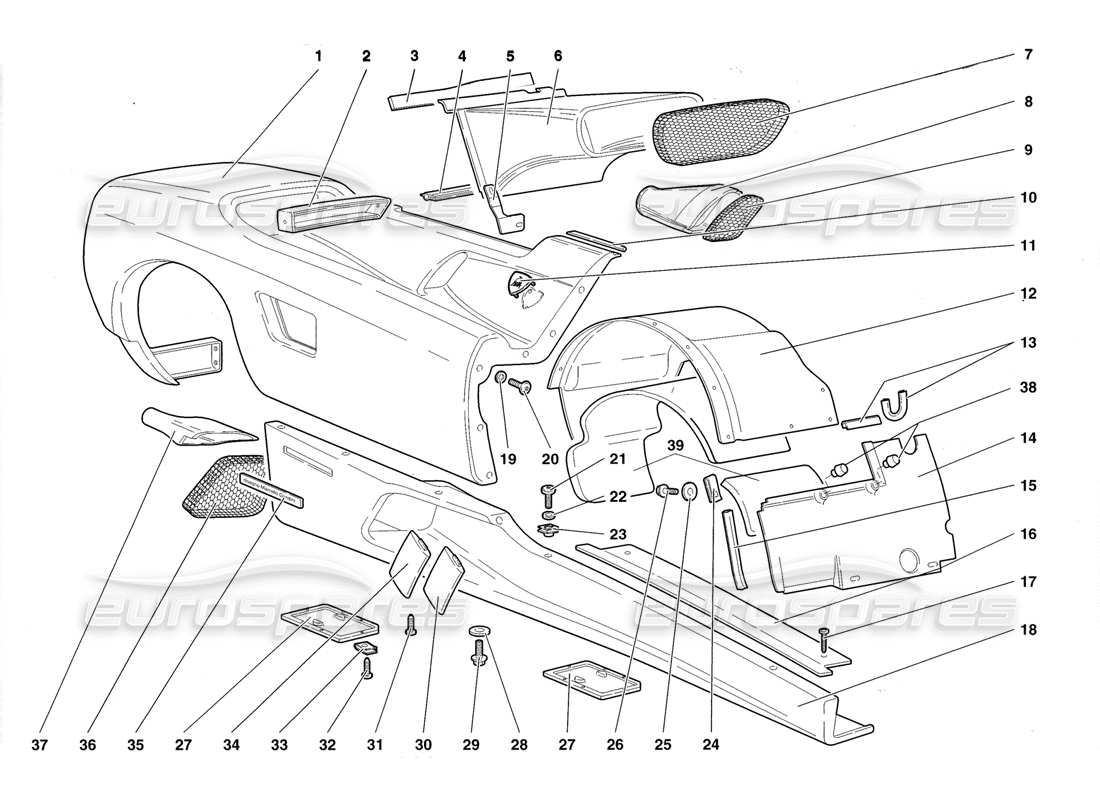

Lamborghini Diablo Roadster (1998) Coque Elements -Right Flank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 009910002
      REAR WING
      from £6,438.03
      from £6,438.03
      RH REAR MUDGUARD Genuine Lamborghini - New (to order)
      # 002
      MPN: 009910207
      GRILLE
      GRIGLIA
      from £104.89
      from £104.89
      AIR RADIATOR VENT RHGRID Genuine Lamborghini - New (to order)
      # 003
      MPN: 004531592
      GASKET
      Guarnizione
      from £6.06
      from £6.06
      AERSTOP FAN/12 MM 5 X 30 X 450 Genuine Lamborghini - New (to order)
      # 004
      MPN: 007090117
      GASKET
      GASKET .
      from £33.98
      from £33.98
      SEAL Genuine Lamborghini - New (to order)
      # 005
      MPN: 004135637
      BRACKET
      STAFFA
      from £47.51
      from £47.51
      RH COOLANT RADIATOR SIDE BRACK ET Genuine Lamborghini - New (to order)
      # 006
      MPN: 009953102
      CONVEYOR
      CONVOGLIATORE
      from £295.96
      from £295.96
      RH RADIATOR AIR MANIFOLD Genuine Lamborghini - New (to order)
      RH RADIATOR AIR MANIFOLD Genuine Lamborghini - Used In stock
      # 007
      MPN: 009910202
      NET
      RETE
      from £74.54
      from £74.54
      RH REAR MUDGUARD NET Genuine Lamborghini - New (to order)
      # 008
      MPN: 009953100
      CONVEYOR
      CONVOGLIATORE
      from £190.70
      from £190.70
      AIR CLEANER RH MANIFOLD Genuine Lamborghini - New (to order)
      # 009
      MPN: 009910204
      NET
      RETE
      from £55.05
      from £55.05
      REAR MUDGUARD RH NET Genuine Lamborghini - New (to order)
      # 010
      MPN: 009907107
      SHIELD
      PROTEZIONE
      from £11.16
      from £11.16
      RH COVER REAR MUDGUARD Genuine Lamborghini - New (to order)
      # 011
      MPN: 006127985
      ORNAMENT
      FREGIO
      from £212.88
      from £212.88
      Genuine Lamborghini (no longer available to order)
      NOSE BADGE Eurospares Approved Part - New In stock
      # 012
      MPN: 009911500
      REAR WHEELBOX
      PASSARUOTA POST.
      from £272.79
      from £272.79
      RH REAR WHEELHOUSE Genuine Lamborghini - New In stock
      # 013
      MPN: 009411513
      GASKET
      Guarnizione
      from £105.93
      from £105.93
      LEFT AND RIGHT REAR BULKHEAD SEAL Genuine Lamborghini - New (to order)
      # 014
      MPN: 009911502
      PROTECTION
      PARASASSI
      from £294.85
      from £294.85
      RH REAR WHEELHOUSE APRON Genuine Lamborghini - New (to order)
      # 015
      MPN: 009411511
      GASKET
      Guarnizione
      from £71.22
      from £71.22
      RH/LH REAR W/HOUSE GRIT SEAL Genuine Lamborghini - New (to order)
      # 016
      MPN: 009458614
      DOORSILL MOULDING
      BATTICALCAGNO
      from £495.81
      from £495.81
      RH DOOR FOOTBOARD Genuine Lamborghini - New (to order)
      # 017
      MPN: 008700334
      SCREW
      VITE
      from £0.53
      from £0.53
      PARKER SCREW 2.9 X 22 Genuine Lamborghini - New In stock
      # 018
      MPN: 009910300
      SIDE PANEL
      BRANCARDO
      from £3,484.51
      from £3,484.51
      RH SKIRT (FIBREGLASS) Genuine Lamborghini - New (to order)
      # 019
      MPN: 008400629
      WASHER
      RONDELLA
      from £0.94
      from £0.94
      NYLON WASHER 6.4X14X1.2 NFE 27 611 Genuine Lamborghini - New In stock
      # 020
      MPN: 008700685
      SCREW
      VITE
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 021
      MPN: 008700685
      SCREW
      VITE
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 022
      MPN: 008400629
      WASHER
      RONDELLA
      from £0.98
      from £0.98
      NYLON WASHER 6.4X14X1.2 NFE 27 611 Genuine Lamborghini - New In stock
      # 023
      MPN: N90327506
      CLIP
      from £0.60
      from £0.60
      SPEED NUT Genuine Lamborghini - New In stock
      # 024
      MPN: WHT000916A
      CLIP
      MOLLETTA
      from £9.60
      from £9.60
      SPEED NUT Genuine Lamborghini - New (to order)
      # 025
      MPN: 008400508
      WASHER
      RONDELLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 026
      MPN: 008700449
      SCREW
      VITE
      from £1.95
      from £1.95
      SCREW 1/56819/01 RIF. FIAT Genuine Lamborghini - New In stock
      # 027
      MPN: 009410306
      INSPECTION LID
      SPORTELLO ISPEZIONE
      from £43.78
      from £43.78
      CONDITIONED AIR VALVE LID ON R IGHT SKIR Genuine Lamborghini - New (to order)
      # 028
      MPN: WHT002961
      WASHER
      RONDELLA
      from £0.53
      from £0.53
      This part replaces part number 008400607
      WASHER Genuine Lamborghini - New In stock
      # 029
      MPN: WHT003069
      SCREW
      VITE
      from £28.40
      from £28.40
      SCREW Genuine Lamborghini - New In stock
      # 030
      MPN: 009410309
      FIN
      ALETTA
      from £3,674.73
      from £3,674.73
      RH SKIRT AIR INTAKE FRONT FIN Genuine Lamborghini - New (to order)
      # 031
      MPN: WHT003304
      SCREW
      VITE
      from £0.53
      from £0.53
      LOCK SCREW 2.9X16DIN7981/CR B LACK Genuine Lamborghini - New In stock
      # 032
      MPN: WHT003114
      SCREW
      VITE
      from £3.42
      from £3.42
      This part replaces part number WHT000766
      PAN HEAD SHEET Genuine Lamborghini - New (to order)
      # 033
      MPN: WHT003424
      CLIP
      MOLLETTA
      from £0.59
      from £0.59
      SPRING Genuine Lamborghini - New In stock
      # 034
      MPN: 009410310
      FIN
      ALETTA
      from £3,674.73
      from £3,674.73
      RH SKIRT AIR INTAKE REAR FIN Genuine Lamborghini - New (to order)
      # 035
      MPN: 009466109
      PLATE
      TARGHETTA MARCELLO GANDINI
      from £175.96
      from £175.96
      MARCELLO GANDINI PLATE Genuine Lamborghini - New In stock
      # 036
      MPN: 009430147
      NET
      RETE
      from £74.88
      from £74.88
      RH SKIRT NET Genuine Lamborghini - New (to order)
      # 037
      MPN: 009953104
      CONVEYOR
      CONVOGLIATORE
      from £392.17
      from £392.17
      RIGHT SKIRT AIR MANIFOLD Genuine Lamborghini - New (to order)
      # 038
      MPN: 009421428
      RUBBER PAD
      RUBBER BUFFER
      from £3.36
      from £3.36
      PAD Genuine Lamborghini - New (to order)
      # 039
      MPN: 009455517
      RIGHT LINING
      (Valid for SWITZERLAND1998) ISOLAMENTO DX
      from £52.99
      from £52.99
      REAR RH WHEEL ARCH INSULATION Genuine Lamborghini - New (to order)
