lamborghini diablo roadster (1998) roof parts diagram

67.01.00 - ROOF

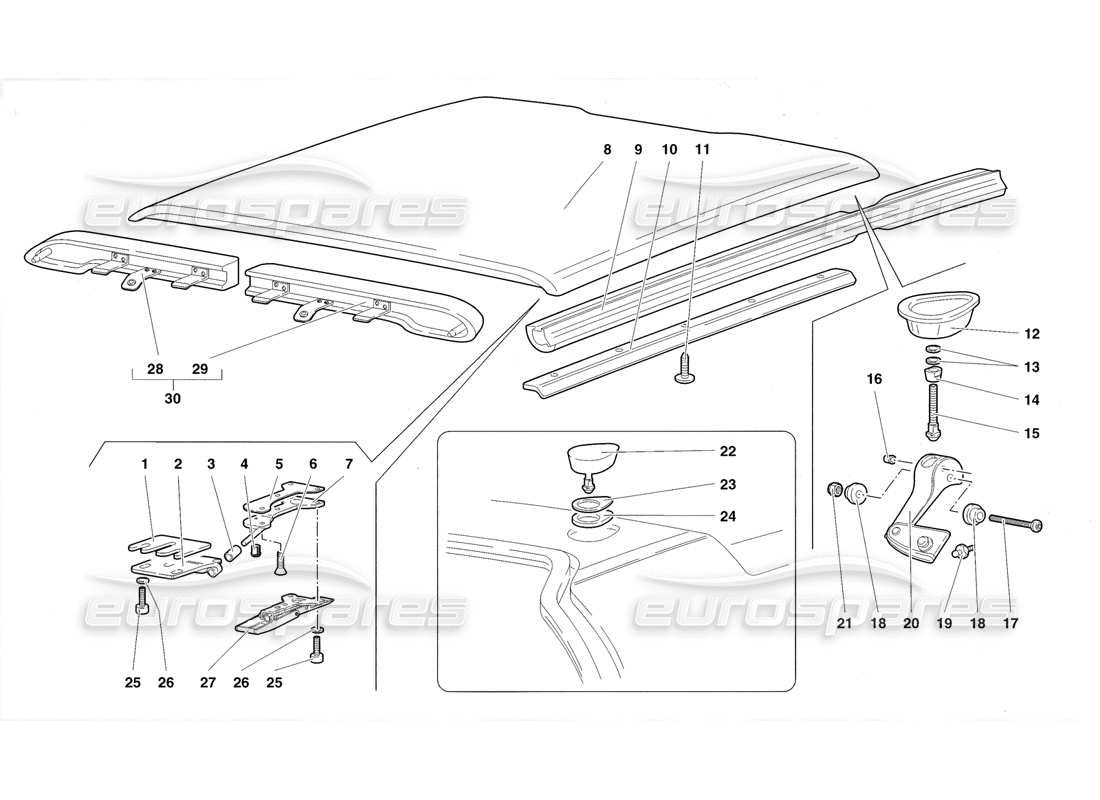

Lamborghini Diablo Roadster (1998) Roof Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 009907324
SHIM
SPESSORE Dl REGISTRO 1 MM
from £26.74
from £26.74
FRONT ROOF POSITION ROD 1MM Genuine Lamborghini - New (to order)
# 002
MPN: 009907302
RIGHT LOCK STRIKER
RISCONTRO DX
from £383.06
from £383.06
RH ROOF CATCH STRIKER Genuine Lamborghini - New (to order)
# 002
MPN: 009907307
LEFT LOCK STRIKER
RISCONTRO SX
from £383.06
from £383.06
LH ROOF CATCH STRIKER Genuine Lamborghini - New (to order)
# 003
MPN: 009907338
BUSHING
BOCCOLA
from £24.71
from £24.71
BUSH Genuine Lamborghini - New (to order)
# 004
MPN: 009907312
MAGNET
MAGNET ON ROOF BRACKET
from £6.43
from £6.43
ROOF ROD MAGNET Genuine Lamborghini - New (to order)
# 005
MPN: 009907323
SHIM
SPESSORE Dl REGISTRO 1 MM
from £8.00
from £8.00
REAR ROOF POSITION ROD 1MM Genuine Lamborghini - New (to order)
# 006
MPN: 008740509
SCREW
VITE
from £0.53
from £0.53
STAINLESS STEEL SCREW M5X20 U NI 5933 Genuine Lamborghini - New (to order)
# 007
MPN: 009907308
RIGHT BRACKET
STAFFA DX POSIZ.TETTUCCIO
from £84.58
from £84.58
RH ROOF POSITION ROD Genuine Lamborghini - New (to order)
# 007
MPN: 009907309
LEFT BRACKET
STAFFA SX POSIZ.TETTUCCIO
from £42.78
from £42.78
LH ROOF POSITION ROD Genuine Lamborghini - New (to order)
# 008
MPN: 0067001676
FOLDING TOP
MOVING ROOF
from £5,763.95
from £5,763.95
SUNROOF ASSEMBLY Genuine Lamborghini - New In stock
# 009
MPN: 0067001680
LEFT ROOF GASKET
GUARNIZ. SXTETTO
from £421.20
from £421.20
SAMPLE AT FI.RE.GOM.35745 Genuine Lamborghini - New (to order)
# 009
MPN: 0067004591
RIGHT ROOF GASKET
from £421.20
from £421.20
RIGHT SIDE ROOF SEAL Genuine Lamborghini - New (to order)
# 010
MPN: 0067003220
CHANNEL
PROFILATO
from £47.27
from £47.27
SUNROOF PANEL FASTENING SEAL Genuine Lamborghini - New (to order)
# 011
MPN: 008700463
SELF-LOCKING SCREW
VITE AUTOFILETTANTE
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 012
MPN: 009907316
RIGHT BOOT
CUFFIA DX
from £41.21
from £41.21
RH BOOT Genuine Lamborghini - New (to order)
# 012
MPN: 009907317
LEFT BOOT
CUFFIA SX
from £32.29
from £32.29
LH BOOT Genuine Lamborghini - New (to order)
# 013
MPN: 008400816
WASHER
RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 014
MPN: 009907320
LOCK NUT
CONTRODADO
from £60.19
from £60.19
ROOF PIN ADJUSTMENT LOCK NUT Genuine Lamborghini - New (to order)
# 015
MPN: 009907311
PIN
ROOF HOOK PIN
from £489.18
from £489.18
REAR ROOF CATCH PIN Genuine Lamborghini - New (to order)
# 016
MPN: 009907111
DOWEL
POSITIONER
from £6.76
from £6.76
HADLER POSITIONING DEVICE 22 0 8 406 Genuine Lamborghini - New (to order)
# 017
MPN: 008740653
SCREW
VITE
from £1.26
from £1.26
BLACK STAINLESS STEEL SCREW M6 X40ISO738 Genuine Lamborghini - New (to order)
# 018
MPN: 009907112
BUSHING
BOCCOLA
from £1.25
from £1.25
BUSHING Genuine Lamborghini - New (to order)
# 019
MPN: 009907103
SELF-LOCKING SCREW
VITE AUTOFILETTANTE
from £18.54
from £18.54
ROD D. 4.2X10 Genuine Lamborghini - New (to order)
# 020
MPN: 009907008
RIGHT HANDLE
MANIGLIADX
from £136.61
from £136.61
RH ROOF LOCK ASSEMBLY Genuine Lamborghini - New (to order)
# 020
MPN: 009907009
LEFT HANDLE
MANIGLIASX
from £233.45
from £233.45
LH ROOF LOCK ASSEMBLY Genuine Lamborghini - New (to order)
# 021
MPN: 008240610
SELF LOCKING NUT
DADO AUTOBLOCCANTE
Lamborghini PART 008240610 Genuine Lamborghini - New (to order)
# 022
MPN: 009907004
RIGHT PLUG
TAPPO DX
from £301.76
from £301.76
RH ROOF CAP ASSEMBLY Genuine Lamborghini - New (to order)
# 022
MPN: 009907005
LEFT PLUG
TAPPO SX
from £301.76
from £301.76
LH ROOF CAP ASSEMBLY Genuine Lamborghini - New (to order)
# 023
MPN: 009907006
SHIM
SPESSORE Dl REGISTRO 1,5 MM
from £0.87
from £0.87
ROOF HOLES 1.5MM Genuine Lamborghini - New In stock
# 024
MPN: 009907007
SHIM
SPESSORE Dl REGISTRO 3 MM
from £2.74
from £2.74
ROOF HOLES 3MM Genuine Lamborghini - New (to order)

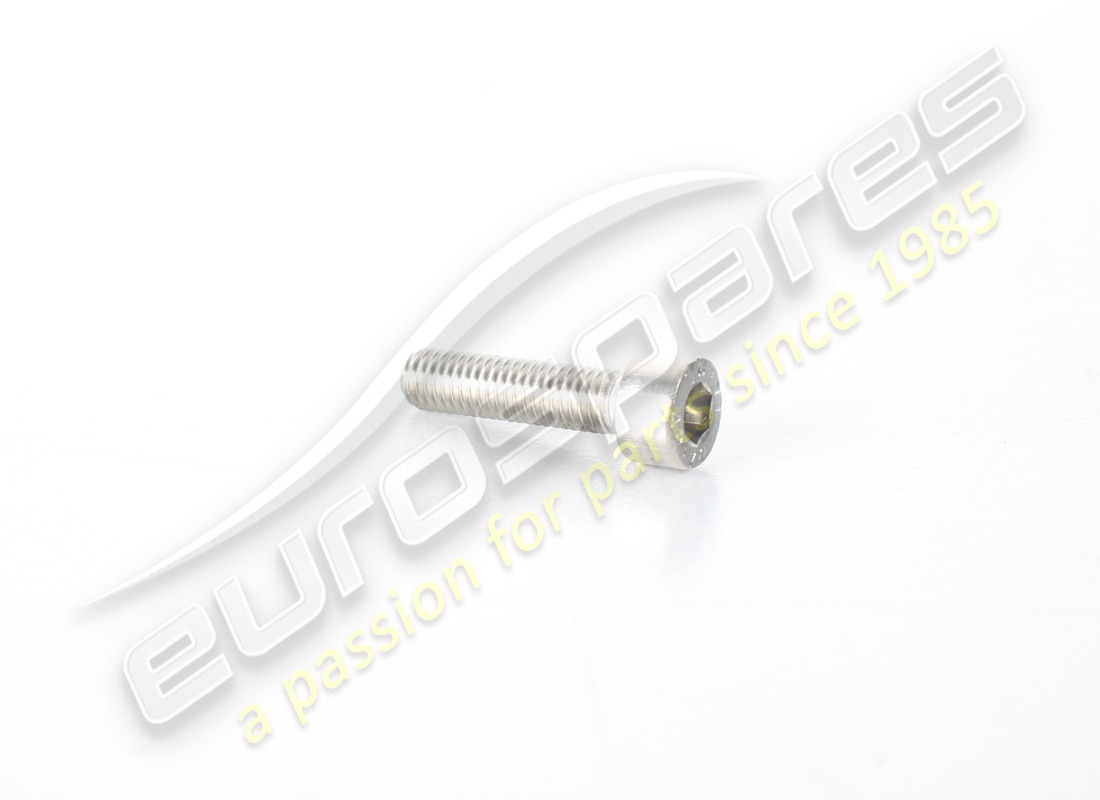

# 025
MPN: 008740531
SCREW
VITE
from £0.52
from £0.52
VITE TCEI M5X20 INOX 5931 Genuine Lamborghini - New In stock
# 026
MPN: WHT001187
WASHER
RONDELLA
from £0.52
from £0.52
This part replaces part number 008400502
WASHER 10X5.3X1 UNI 6952 CAT-A Genuine Lamborghini - New In stock
# 027
MPN: 009907327
ROOF LOCKING HOOK
GANCIO FISS. TETTO
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 028
MPN: 0067001479
RIGHT HOOK SHIELD
PROTEZ. GANCIO DX
from £394.28
from £394.28
RH WINDSCREEN CROSS MEMBER PRO TECTION Genuine Lamborghini - New (to order)
# 029
MPN: 0067001480
LEFT HOOK SHIELD
PROTEZ. GANCIO SX
from £394.28
from £394.28
LH WINDSCREEN CROSS MEMBER PRO TECTION Genuine Lamborghini - New In stock
# 030
MPN: 0067003150
KIT SHIELD
PROTECTION KIT
Lamborghini PART 0067003150 Genuine Lamborghini - New (to order)
