lamborghini diablo roadster (1998) doors parts diagram

72.01.00 - Doors

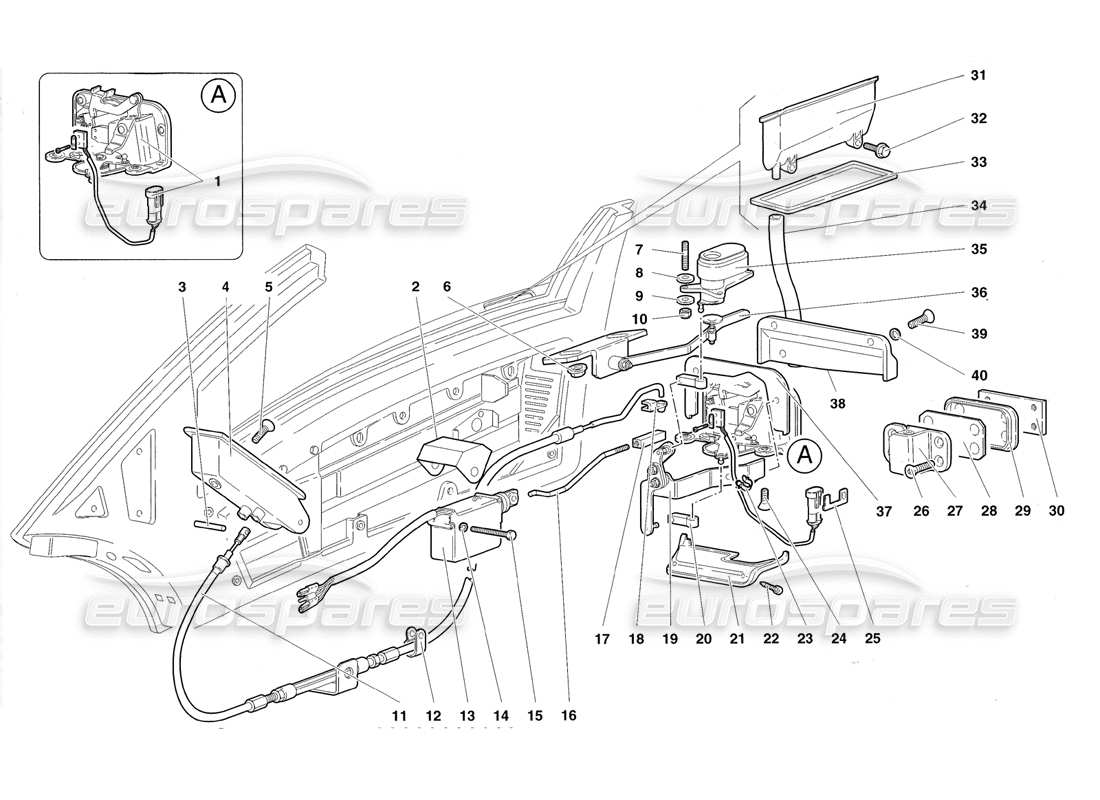

Lamborghini Diablo Roadster (1998) Doors Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 009921219
          lock
          SERRATURA DX
          from £1,167.27
          from £1,167.27
          RH FITTED DOOR LOCK ASSEMBLY Genuine Lamborghini - New (to order)
          # 001
          MPN: 009921220
          lock
          SERRATURA SX
          from £1,167.27
          from £1,167.27
          LH FITTED DOOR LOCK ASSEMBLY Genuine Lamborghini - New (to order)
          # 002
          MPN: 009921112
          SHIELD
          PROTEZIONE DX
          from £53.89
          from £53.89
          STAFFA DX DU TRAV.PORTA X ATT. Genuine Lamborghini - New (to order)
          # 002
          MPN: 009921113
          SHIELD
          PROTEZIONE SX
          from £9.83
          from £9.83
          BRACKET Genuine Lamborghini - New (to order)
          # 003
          MPN: 008850304
          PIN
          PERNO
          from £1.36
          from £1.36
          PIN 3 H8 L=25 UNI 177 Genuine Lamborghini - New In stock
          # 004
          MPN: 410823537
          HANDLE
          from £766.08
          from £766.08
          INTERNAL DOOR HANDLE Genuine Lamborghini - New (to order)
          # 006
          MPN: 008200614
          NUT
          DADO
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 007
          MPN: 008300403
          STUD
          PRIGIONIERO (L=21 MM)
          from £16.59
          from £16.59
          SPECIAL STUD M4X17 FRPM 4-19 Genuine Lamborghini - New (to order)
          # 007
          MPN: 009921221
          STUD
          PRIGIONIERO(L=18MM)
          from £2.69
          from £2.69
          STUD FRP M4X18 Genuine Lamborghini - New (to order)
          # 008
          MPN: 008400401
          WASHER
          RONDELLA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 009
          MPN: 008400401
          WASHER
          RONDELLA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 010
          MPN: WHT002959
          NUT
          DADO
          from £0.53
          from £0.53
          LOCK NUT NYLONSTOP Genuine Lamborghini - New In stock
          # 011
          MPN: 009921010
          RIGHT CABLE
          CAVO DX
          from £54.39
          from £54.39
          RH DOOR LOCK WIRE ASSEMBLY Genuine Lamborghini - New (to order)
          # 011
          MPN: 009921011
          LEFT CABLE
          CAVO SX
          from £54.39
          from £54.39
          LH DOOR LOCK WIRE ASSEMBLY Genuine Lamborghini - New (to order)
          # 012
          MPN: 008830907
          STRAP
          FASCETTA
          from £0.52
          from £0.52
          CENTRAL DOOR LOCKINGSYSTEM WIR ING CLAMP Genuine Lamborghini - New In stock
          # 013
          MPN: 0R1320007
          LHS DOOR ACTUATOR
          from £555.96
          from £555.96
          KIT ATTUATORE PORTA SINISTRA Genuine Lamborghini - New (to order)
          # 013
          MPN: 0R1320008
          RHS DOOR ACTUATOR
          from £262.86
          from £262.86
          RHS DOOR ACTUATOR Genuine Lamborghini - New (to order)
          # 014
          MPN: 008400401
          WASHER
          RONDELLA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 015
          MPN: 008100404
          SCREW
          VITE
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 016
          MPN: 009921204
          RIGHT TIE ROD
          TIRANTE DX
          from £13.90
          from £13.90
          RH LOCK/ACTUATOR TIE-ROD Genuine Lamborghini - New (to order)
          # 016
          MPN: 009921211
          LEFT TIE ROD
          TIRANTE SX
          from £13.90
          from £13.90
          LH LOCK/ACTUATOR TIE-ROD Genuine Lamborghini - New (to order)
          # 017
          MPN: 007021016
          PAWL
          NOTTOLINO
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 018
          MPN: 009421251
          CLIP
          HOOKING CLAMP
          PAWL Genuine Lamborghini - New (to order)
          # 019
          MPN: 009921225
          RIGHT IDLE LEVER
          RINVIO A LEVA DX
          from £207.95
          from £207.95
          RH DOOR CLOSING LINKAGE Genuine Lamborghini - New (to order)
          # 019
          MPN: 009921226
          LEFT IDLE LEVER
          RINVIO A LEVA SX
          from £153.39
          from £153.39
          LH DOOR CLOSING LINKAGE Genuine Lamborghini - New (to order)
          # 020
          MPN: 009421214
          COUPLING
          TESTINA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 021
          MPN: 410837119
          LEFT SHIELD
          PROTEZIONE SX
          from £35.28
          from £35.28
          see LAMB007 Genuine Lamborghini - New In stock
          # 021
          MPN: 410837120
          RIGHT SHIELD
          PROTEZIONE DX
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 022
          MPN: 008700332
          SCREW
          VITE
          from £0.53
          from £0.53
          PARKER SCREW 2.9 X 13 Genuine Lamborghini - New (to order)
          # 023
          MPN: 008830411
          STRAP
          FASCETTA
          from £0.83
          from £0.83
          SPRING Genuine Lamborghini - New In stock
          # 024
          MPN: 008700638
          SCREW
          VITE
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 025
          MPN: 006137785
          SUPPORT
          SUPPORTO
          from £1.23
          from £1.23
          REAR LIGHT/INDICATORCONNECTOR BRACKET Genuine Lamborghini - New (to order)
          # 026
          MPN: 008700610
          SCREW
          VITE
          from £0.51
          from £0.51
          SCREW 6X22 UNI 5933/8G/ZD Genuine Lamborghini - New In stock
          # 027
          MPN: 410831407A
          LEFT LOCK STRIKER
          from £163.12
          from £163.12
          HINGE HALF LEFT Genuine Lamborghini - New (to order)
          HINGE HALF LEFT Genuine Lamborghini - Used In stock
          # 027
          MPN: 410831408A
          RIGHT LOCK STRIKER
          from £287.71
          from £287.71
          HINGE HALF RIGHT Genuine Lamborghini - New (to order)
          HINGE HALF RIGHT Genuine Lamborghini - Used In stock
          # 028
          MPN: 410837963
          SPACER
          DISTANZIALE
          from £9.81
          from £9.81
          SHIM UNDER IN.LOCK HEAT. Genuine Lamborghini - New (to order)
          # 028
          MPN: 410837964
          SPACER
          DISTANZIALE
          from £9.56
          from £9.56
          SHIM UNDER IN.LOCK HEAT. Genuine Lamborghini - New (to order)
          # 029
          MPN: 410837899
          PLATE
          from £9.34
          from £9.34
          DOOR HEATER TRIM Genuine Lamborghini - New (to order)
          # 030
          MPN: 007021253
          PLATE
          PIASTRA
          from £18.62
          from £18.62
          DOOR LOCK STRIKER FIX.PLATE Genuine Lamborghini - New (to order)
          # 031
          MPN: 009421200
          RIGHT HANDLE
          RIGHT HANDLE
          from £193.69
          from £193.69
          RIGHT DOOR EXTERNAL HANDLE Genuine Lamborghini - New (to order)
          # 031
          MPN: 009421201
          LEFT HANDLE
          MANIGLIA SX
          from £202.77
          from £202.77
          LEFT DOOR EXTERNAL HANDLE Genuine Lamborghini - New In stock
          # 032
          MPN: N10718801
          SCREW
          VITE
          from £0.59
          from £0.59
          HEXAGON BOLT M6 X 16 Genuine Lamborghini - New In stock
          BOLT, HEX. HD. WITH SHOULDER Genuine Porsche Part - New In stock
          # 033
          MPN: 009421712
          RIGHT GASKET
          GUARNIZIONE DX
          from £3.45
          from £3.45
          DOOR HANDLE GASKET Genuine Lamborghini - New (to order)
          # 033
          MPN: 009421713
          LEFT GASKET
          GUARNIZIONE SX
          from £8.34
          from £8.34
          DOOR HANDLE GASKET Genuine Lamborghini - New (to order)
          # 034
          MPN: 009421245
          PIPE
          Tubo
          from £11.28
          from £11.28
          COOLANT DRAIN TUBE Genuine Lamborghini - New (to order)
          # 035
          MPN: 009421267
          RIGHT BUTTON
          RIGHT BUTTON
          from £118.32
          from £118.32
          RH BUTTON Genuine Lamborghini - New (to order)
          # 035
          MPN: 009421268
          LEFT BUTTON
          PULSANTE SX
          Lamborghini PART 009421268 Genuine Lamborghini - New (to order)
          # 036
          MPN: 009921223
          RIGHT IDLE LEVER
          RINVIO A LEVA DX
          from £153.39
          from £153.39
          RH DOOR OPENING LINKAGE Genuine Lamborghini - New (to order)
          # 036
          MPN: 009921224
          LEFT IDLE LEVER
          RINVIO A LEVA SX
          from £153.39
          from £153.39
          LH DOOR OPENING LINKAGE Genuine Lamborghini - New (to order)
          # 037
          MPN: 009421272
          LEFT GASKET
          GUARNIZIONE SX
          RIGHT LOCK GASKET Genuine Lamborghini - New (to order)
          # 037
          MPN: 009421273
          RIGHT GASKET
          GUARNIZIONE DX
          RIGHT GASKET Genuine Lamborghini - New (to order)
          # 038
          MPN: 0072001639
          RIGHT SHIELD
          (Valid for U.S.A.1998) PROTEZIONE SX
          from £192.35
          from £192.35
          LH DOOR LOCK REIN. GUARD Genuine Lamborghini - New (to order)
          # 038
          MPN: 0072001639
          RIGHT SHIELD
          (Valid for AUSTRALIA 1998) PROTEZIONE SX
          from £192.35
          from £192.35
          LH DOOR LOCK REIN. GUARD Genuine Lamborghini - New (to order)
          # 038
          MPN: 0072001639
          RIGHT SHIELD
          (Valid for CANADA 1998) PROTEZIONE SX
          from £192.35
          from £192.35
          LH DOOR LOCK REIN. GUARD Genuine Lamborghini - New (to order)
          # 038
          MPN: 0072001640
          RIGHT SHIELD
          (Valid for U.S.A.1998) PROTEZIONE DX
          from £192.35
          from £192.35
          RH DOOR LOCK REIN. GUARD Genuine Lamborghini - New (to order)
          # 038
          MPN: 0072001640
          RIGHT SHIELD
          (Valid for AUSTRALIA 1998) PROTEZIONE DX
          from £192.35
          from £192.35
          RH DOOR LOCK REIN. GUARD Genuine Lamborghini - New (to order)
          # 038
          MPN: 0072001640
          RIGHT SHIELD
          (Valid for CANADA 1998) PROTEZIONE DX
          from £192.35
          from £192.35
          RH DOOR LOCK REIN. GUARD Genuine Lamborghini - New (to order)
          # 039
          MPN: 008400624
          WASHER
          (Valid for U.S.A. 1998) RONDELLA
          from £2.68
          from £2.68
          FIRAL GENUINE WASHERFR NY-6-13 1033 Genuine Lamborghini - New (to order)
          # 039
          MPN: 008400624
          WASHER
          (Valid for AUSTRALIA 1998)RONDELLA
          from £2.68
          from £2.68
          FIRAL GENUINE WASHERFR NY-6-13 1033 Genuine Lamborghini - New (to order)
          # 039
          MPN: 008400624
          WASHER
          (Valid for CANADA 1998) RONDELLA
          from £2.68
          from £2.68
          FIRAL GENUINE WASHERFR NY-6-13 1033 Genuine Lamborghini - New (to order)
          # 040
          MPN: 008700638
          SCREW
          (Valid for U.S.A.1998) VITE
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 040
          MPN: 008700638
          SCREW
          (Valid for AUSTRALIA 1998) VITE
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 040
          MPN: 008700638
          SCREW
          (Valid for CANADA 1998) VITE
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
