lamborghini diablo roadster (1998) rear hood and wings parts diagram

73.01.00 - Rear Hood and Wings

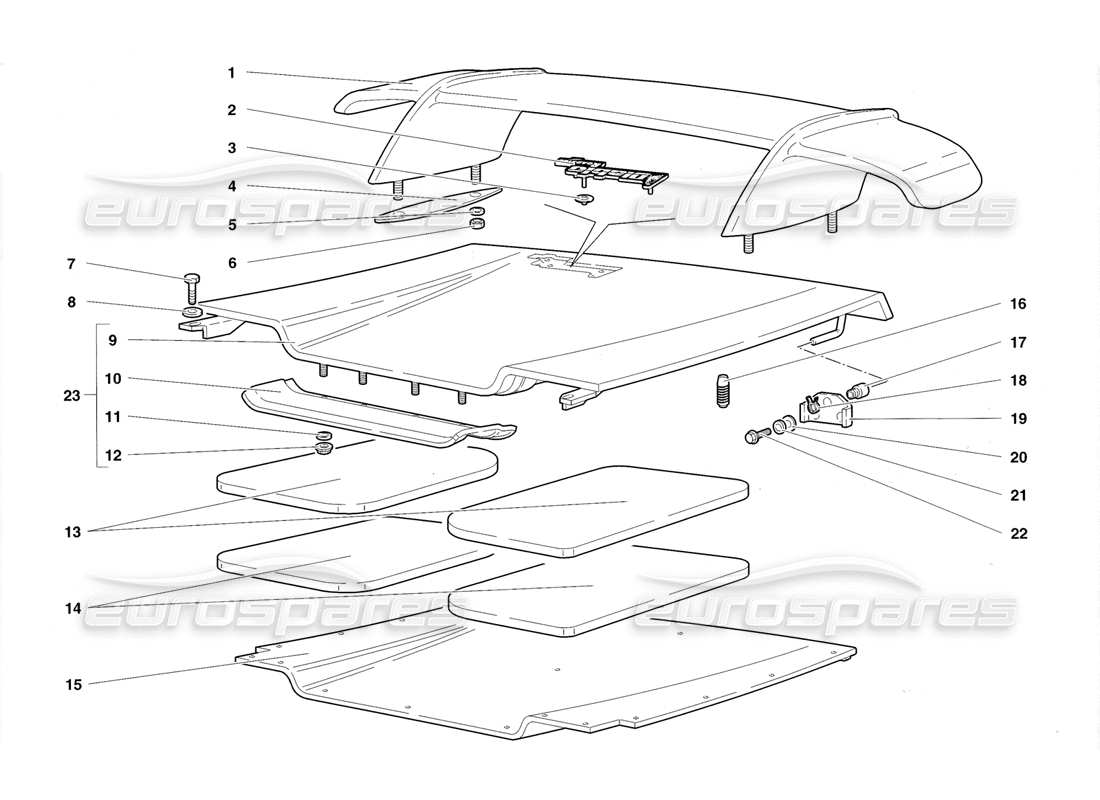

Lamborghini Diablo Roadster (1998) Rear Hood and Wings Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009990000
WING
ALETTONE (OPTIONAL)
from £5,918.48
from £5,918.48
# 001
MPN: 009990000VS
PAINTED WING
ALETTONE VERNICIATO
# 002
MPN: 009966002
ORNAMENT
FREGIO
from £71.06
from £71.06
# 003
MPN: 008410305
CLIP
MOLLETTA
from £0.66
from £0.66
# 004
MPN: 0097001880
GASKET
Guarnizione
from £116.73
from £116.73
# 005
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 006
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 007
MPN: N10718801
SCREW
VITE
from £0.59
from £0.59
# 008
MPN: WHT003093
WASHER
RONDELLA
from £0.53
from £0.53
# 009
MPN: 009929001
REAR BONNET
COFANO POSTERIORE
from £1,911.10
from £1,911.10
# 010
MPN: 009929102
PANEL
PANNELLO
from £87.06
from £87.06
# 011
MPN: 008400508
WASHER
RONDELLA
Supersession
Supersession
# 012
MPN: 008200513
NUT
DADO
Supersession
Supersession
# 013
MPN: 009955411
LINING
ISOLAMENTO
from £61.03
from £61.03
# 014
MPN: 009955410
LINING
ISOLAMENTO
from £82.41
from £82.41
# 015
MPN: 009955412
PANEL
PANNELLO
from £295.17
from £295.17
# 016
MPN: 009460214
RUBBER PAD
RUBBER BUFFER
from £4.88
from £4.88
# 017
MPN: 410814940
BUSHING
BOCCOLA
from £29.96
from £29.96
# 018
MPN: 008830131
STRAP
FASCETTA
Supersession
Supersession
# 019
MPN: 004137074
BRACKET
STAFFA
from £30.73
from £30.73
# 020
MPN: WHT002961
WASHER
RONDELLA
from £0.53
from £0.53
This part replaces part number 008400607
# 021
MPN: 008410602
WASHER
RONDELLA
from £27.52
from £27.52
# 022
MPN: 008100618
SCREW
VITE
Supersession
Supersession
# 023
MPN: 009929000
Rear Hood
use : 009929001 + 009929102
