lamborghini diablo roadster (1998) frame floor panels (valid for uk 1998) parts diagram

74.68.01.00 - Frame Floor Panels (Valid for UK 1998)

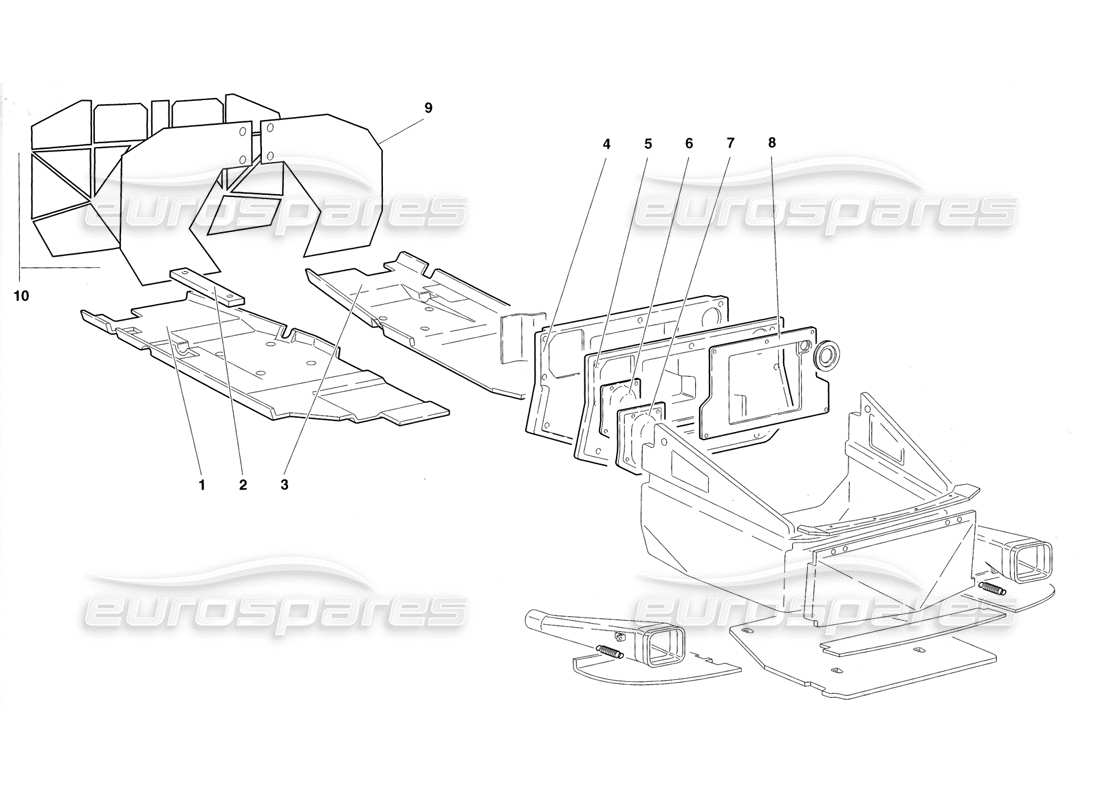

Lamborghini Diablo Roadster (1998) Frame Floor Panels (Valid for UK 1998) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 0068001556
RIGHT SHELF PANEL
(Valid for U.K 1998) PIANALE DX
from £384.71
from £384.71
PIAN.INT.ABIT.LATO DX/GDX Genuine Lamborghini - New (to order)
# 002
MPN: 009435234
SPACER
(Valid for U.K 1998) DISTANZIALE
from £21.97
from £21.97
RH SEAT GUIDE SHIM Genuine Lamborghini - New (to order)
# 003
MPN: 0068001557
LEFT SHELF PANEL
(Valid for U.K 1998) PIANALE SX
from £384.71
from £384.71
PIAN.INT.ABIT.LATO SX/GDX Genuine Lamborghini - New (to order)
# 004
MPN: 009909102
PANEL
(Valid for U.K 1998) PANNELLO
from £183.65
from £183.65
FRONT COMPARTMENT CENTRAL BULK HEAD Genuine Lamborghini - New (to order)
# 005
MPN: 009409232
COVERING
(Valid for U.K 1998) RIVESTIMENTO
from £50.49
from £50.49
CENTRAL PARTITION PANEL/CENTRA L COMPART Genuine Lamborghini - New (to order)
# 006
MPN: 009409235
INSPECTION LID
(Valid for U.K 1998) SPORTELLO ISPEZIONE
from £65.42
from £65.42
BRAKE PUMP INSPECTION FLAP Genuine Lamborghini - New (to order)
# 007
MPN: 009409233
COVERING
(Valid for U.K 1998) RIVESTIMENTO
COVERING Genuine Lamborghini - New (to order)
# 008
MPN: 009909105
Frame
(Valid for U.K 1998) CORNICE AMPLIFICATORE
from £56.72
from £56.72
RHD AMPLIFIER FRAME Genuine Lamborghini - New (to order)
# 009
MPN: 00310144009
INTERNAL INSULATION
(Valid for U.K 1998) ISOLAM. INT. ABITACOLO
INTERNAL INSULATION Genuine Lamborghini - New (to order)
# 010
MPN: 00310132017
INTERNAL INSULATION
(Valid for U.K 1998) ISOLAM. INT. ABITACOLO
INTERNAL INSULATION Genuine Lamborghini - New (to order)
