lamborghini diablo roadster (1998) passenger compartment trims parts diagram

78.01.00 - Passenger Compartment Trims

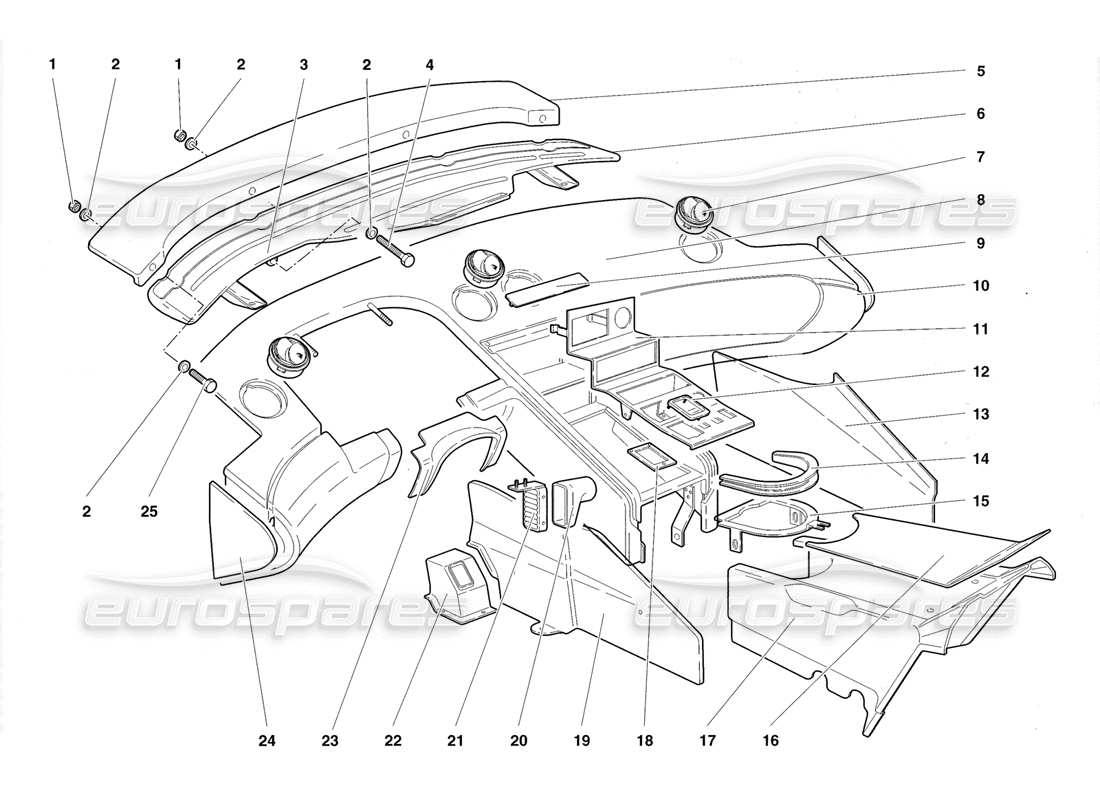

Lamborghini Diablo Roadster (1998) Passenger Compartment Trims Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 002
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 003
MPN: 009414129
SPACER
DISTANZIALE
from £52.92
from £52.92
# 004
MPN: 008100636
SCREW
VITE
from £0.53
from £0.53
# 005
MPN: 009914302
PANEL
PANNELLO SOTTO PARABREZZA
from £106.13
from £106.13
# 006
MPN: 009414019
CONVEYOR
CONVOGLIATORE
from £1,575.31
from £1,575.31
# 007
MPN: 009914500
AIR VENT
AIR VENT
from £51.65
from £51.65
# 008
MPN: 009914100
DASHBOARD PANEL
CRUSCOTTO
from £586.23
from £586.23
# 010
MPN: 009914303
RIGHT SIDE PANEL
FIANCHETTO DX
from £17.25
from £17.25
# 011
MPN: 009914113
TUNNEL PANEL
PLANCIA TUNNEL
from £485.87
from £485.87
# 012
MPN: 009414112
Frame
CORNICE
from £15.64
from £15.64
# 013
MPN: 009414303
RIGHT PANEL
PANNELLO DX
from £188.63
from £188.63
# 014
MPN: 009958606
Frame
CORNICE
from £172.05
from £172.05
# 015
MPN: 009958607
PLATE
PIASTRA
from £270.29
from £270.29
# 016
MPN: 009958605
METAL COVERING
METALLIC COATING
from £61.45
from £61.45
# 017
MPN: 009958601
TUNNEL COVERING
RIVESTIMENTO TUNNEL
from £372.67
from £372.67
# 018
MPN: 009914112
PLATE
PIASTRA
from £6.43
from £6.43
# 019
MPN: 009414336
LEFT PANEL
PANNELLO SX
from £127.28
from £127.28
# 020
MPN: 009458356
AIR VENT
AIR VENT
from £101.57
from £101.57
# 021
MPN: 009958402
GRILLE
GRIGLIA
from £25.58
from £25.58
# 022
MPN: 009458364
CASE
SCATOLA
from £58.25
from £58.25
# 023
MPN: 009414321
COVERING
RIVESTIMENTO
from £431.14
from £431.14
# 024
MPN: 009914304
LEFT SIDE PANEL
FIANCHETTO SX
from £23.39
from £23.39
