lamborghini diablo roadster (1998) engine hood parts diagram

92.02.00 - Engine Hood

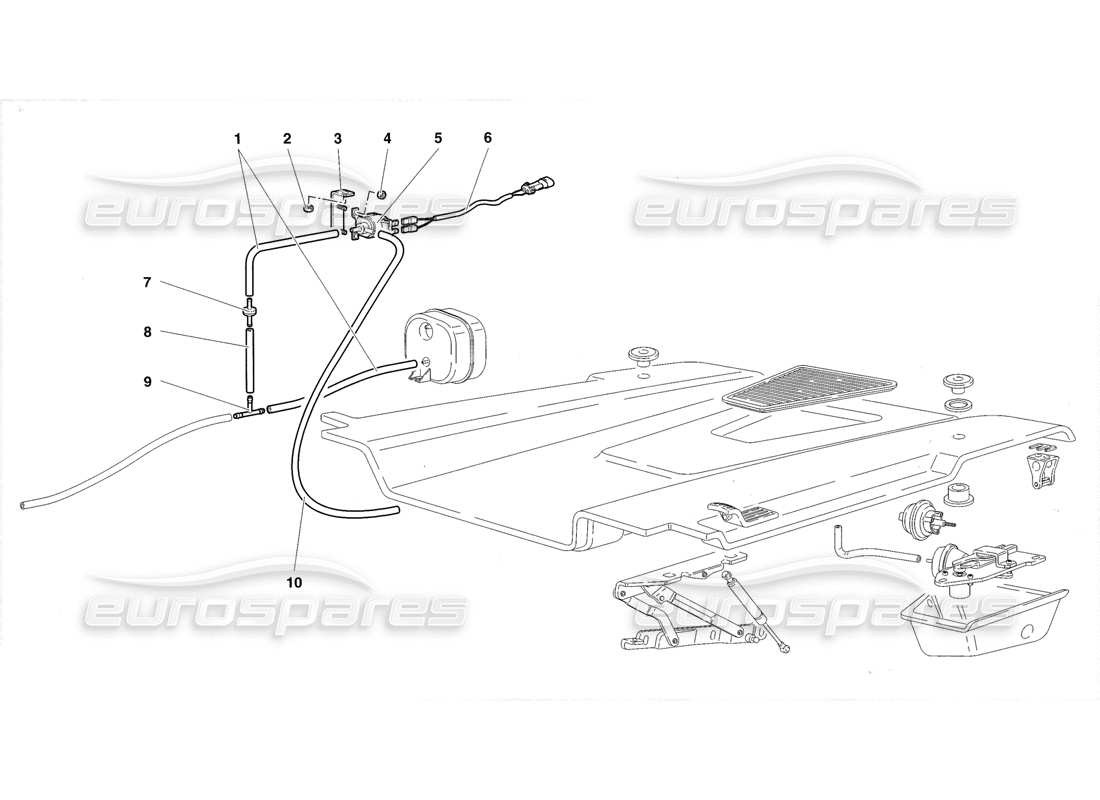

Lamborghini Diablo Roadster (1998) Engine Hood Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009960252
PIPE
TUBO (L=60 MM)
from £7.89
from £7.89
# 002
MPN: N02214812
NUT
DADO
from £1.10
from £1.10
This part replaces part number 008200612
# 003
MPN: 009960255
BRACKET
STAFFETTA
from £16.59
from £16.59
# 004
MPN: N01100412
NUT
DADO
from £0.47
from £0.47
# 005
MPN: 077906283
ELECTRO-VALVE
ELETTROVALVOLA
from £34.59
from £34.59
This part replaces part number 07M906283
# 006
MPN: 006137325
ELECT CABLE
CABLAGGIO
from £7.38
from £7.38
# 007
MPN: 004621574
VALVE
VALVOLA Dl NON RITORNO
from £12.27
from £12.27
# 008
MPN: 009960253
PIPE
TUBO (L=250 MM)
from £7.89
from £7.89
# 009
MPN: 007014169
CONNECTION
RACCORDOATREVIE
from £15.47
from £15.47
# 010
MPN: 009960254
PIPE
TUBO (L=1 000 MM)
from £7.89
from £7.89
