lamborghini diablo se30 (1995) engine oil breathing system parts diagram

15.04.00 - Engine Oil Breathing System

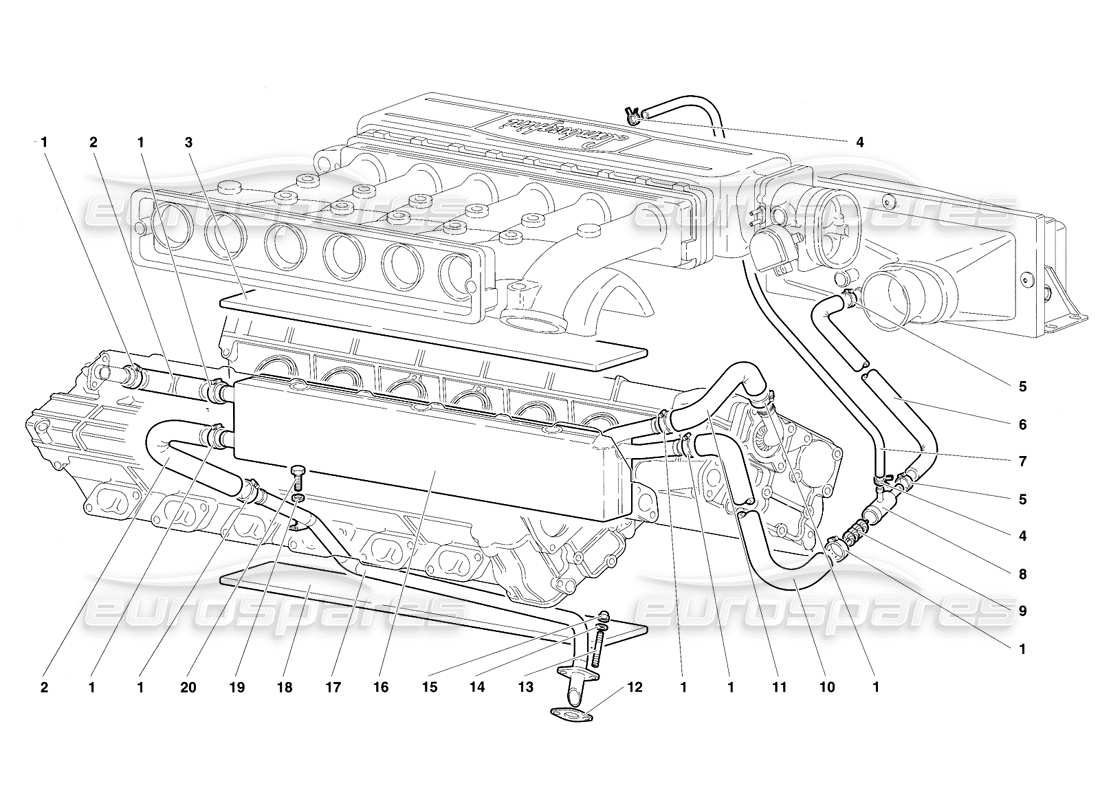

Lamborghini Diablo SE30 (1995) Engine Oil Breathing System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 008832003
    STRAP
    FASCETTA
    from £27.78
    from £27.78
    FASC.19-28 H.12 Genuine Lamborghini - New In stock
    # 002
    MPN: 001532654
    FLEX. HOSE
    TUBO FLESSIBILE
    from £45.31
    from £45.31
    UNION PIPE Genuine Lamborghini - New (to order)
    # 003
    MPN: 001532663
    INSULATOR
    ISOLANTE
    from £11.95
    from £11.95
    UPPER VAPOUR SEPARATOR RUBBER MOUNT Genuine Lamborghini - New (to order)
    # 004
    MPN: 008830128
    STRAP
    FASCETTA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 006
    MPN: 001535266
    FLEX. HOSE
    TUBO FLESSIBILE
    from £40.91
    from £40.91
    THREE-WAY TO AIR CLEANER CASIN G PIPE Genuine Lamborghini - New (to order)
    # 007
    MPN: 001535267
    FLEX. HOSE
    TUBO FLESSIBILE
    from £50.66
    from £50.66
    THREE-WAY PIPE TO INTAKE MANIF OLD Genuine Lamborghini - New (to order)
    # 008
    MPN: 001532657
    CONNECTION
    RACCORDO ORIENTABILE
    from £25.13
    from £25.13
    THREE-WAY UNION Genuine Lamborghini - New (to order)
    # 009
    MPN: 001532768
    FLAME TRAP
    SPEGNIFIAMMA
    from £15.43
    from £15.43
    FLAME TRAP Genuine Lamborghini - New (to order)
    # 010
    MPN: 001535265
    FLEX. HOSE
    TUBO FLESSIBILE
    from £65.97
    from £65.97
    OIL BREATHER TO THREE-WAY PIPE Genuine Lamborghini - New (to order)
    # 011
    MPN: 001532656
    FLEX. HOSE
    TUBO FLESSIBILE
    from £44.71
    from £44.71
    PIPE FROM LH HEAD OIL VAPOUR O UTLET Genuine Lamborghini - New (to order)
    # 012
    MPN: 001831058
    GASKET
    Guarnizione
    from £2.95
    from £2.95
    OIL FILLER PIPE & SUMP SEAL Genuine Lamborghini - New (to order)
    # 013
    MPN: 008300610
    STUD
    PRIGIONIERO
    from £15.47
    from £15.47
    STUD 6X1X16 8G UNI5911 Z. Genuine Lamborghini - New In stock
    # 014
    MPN: 008400606
    WASHER
    RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 015
    MPN: 008200606
    NUT
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 016
    MPN: 001532642
    SEGREGATOR
    OIL VAPOR SEPARATOR
    from £195.68
    from £195.68
    OIL BREATHER CASING Genuine Lamborghini - New (to order)
    # 017
    MPN: 001532643
    PIPE
    Tubo
    from £46.43
    from £46.43
    OIL SUMP UNION PIPE Genuine Lamborghini - New (to order)
    # 018
    MPN: 001532662
    INSULATOR
    ISOLANTE
    from £22.10
    from £22.10
    LOWER VAPOUR SEPARATOR RUBBER MOUNT Genuine Lamborghini - New (to order)
    # 019
    MPN: 008410603
    WASHER
    RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 020
    MPN: 008100604
    SCREW
    VITE
    from £1.71
    from £1.71
    SCREW M6X14 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
