lamborghini diablo se30 (1995) gearbox control tower parts diagram

24.01.00 - Gearbox Control Tower

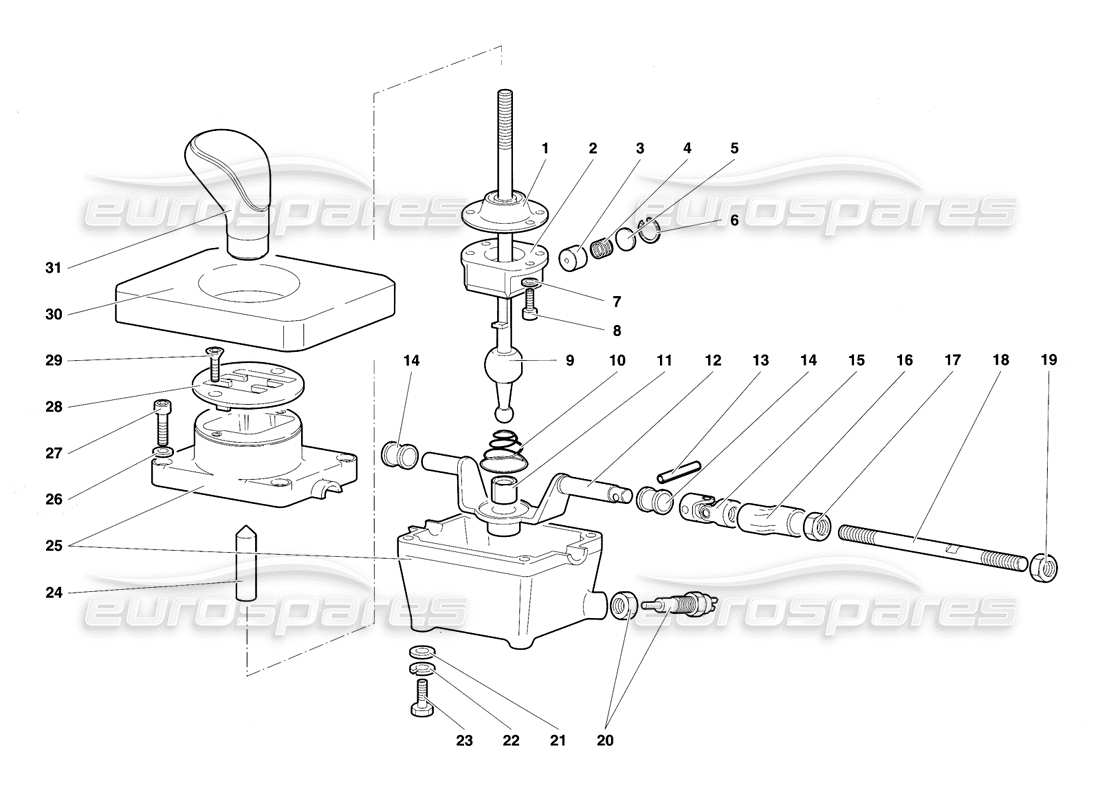

Lamborghini Diablo SE30 (1995) Gearbox Control Tower Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Key
Price
# 001
MPN: 002433043
BOOT
CUFFIA X LEVA COM.CAMBIO
from £67.01
from £67.01
GEAR LEVER CAP Genuine Lamborghini - New (to order)
# 002
MPN: 002434091
BALL SOCKFT
SEDE SFERICA
from £151.73
from £151.73
GEAR LEVER BALL SEAT Genuine Lamborghini - New (to order)
# 003
MPN: 002427202
CYLINDER
CILINDRO
from £53.57
from £53.57
GEAR LEVER CYLINDER Genuine Lamborghini - New (to order)
# 004
MPN: 002432167
SPRING
MOLLA
from £7.63
from £7.63
GEAR LEVER CYLINDER SPRING Genuine Lamborghini - New (to order)
# 005
MPN: 002427204
PLUG
TAPPO
from £1.02
from £1.02
RETAINER Genuine Lamborghini - New In stock
# 006
MPN: 008572201
RETAINER RING
ANELLO RITEGNO
from £0.54
from £0.54
O-RING I 22 UNI 3654 Genuine Lamborghini - New In stock
# 007
MPN: 008410602
WASHER
RONDELLA
from £28.28
from £28.28
WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
# 008
MPN: 008700646
SCREW
VITE
from £0.53
from £0.53
SCREW M6X12 UNI 5931/8G/ZD Genuine Lamborghini - New (to order)
# 009
MPN: 002433008
LEVER
LEVA COMANDO CAMBIO
from £841.55
from £841.55
GEAR LEVER Genuine Lamborghini - New (to order)
# 010
MPN: 002429160
SPRING
MOLLA X LEVA COM.CAMBIO
from £96.84
from £96.84
GEAR LEVER SPRING Genuine Lamborghini - New In stock
# 011
MPN: 002427207
BUSHING
BOCCOLA X LEVA COM.CAMBIO
from £202.32
from £202.32
GEAR LEVER BUSHING Genuine Lamborghini - New (to order)
# 012
MPN: 002429161
SMALL SHAFT
ALBERINO
from £191.95
from £191.95
GEAR LEVER SHAFT Genuine Lamborghini - New (to order)
# 013
MPN: 008900305
PIN
SPINA
from £0.54
from £0.54
ELASTIC PIN 3X24 DIN1481 Genuine Lamborghini - New In stock
# 014
MPN: 002433020
BUSHI. (ONLY WITH REF. 25)
BOCCOLA (solo con 240132003)
from £20.24
from £20.24
CAMSHAFT SLIDING BUSH Genuine Lamborghini - New (to order)
# 015
MPN: 410711615
UNIVE. JOINT (RIGHT)
RIGHT CARDAN JOINT
from £655.41
from £655.41
RH THREADED JOINT Genuine Lamborghini - New (to order)
# 016
MPN: 002432117
RUBBER LINER
GUAINA IN GOMMA
from £41.62
from £41.62
CV JOINT SHEATH Genuine Lamborghini - New (to order)
# 017
MPN: 008201223
NUT (RIGHT)
DADO (DX)
Lamborghini PART 008201223 Genuine Lamborghini - New (to order)
# 018
MPN: 002435940
ROD
ASTA
from £16.63
from £16.63
GEARBOX REGULATOR TIE-ROD Genuine Lamborghini - New (to order)
# 019
MPN: 008201224
NUT (LEFT)
DADO (SX)
Lamborghini PART 008201224 Genuine Lamborghini - New (to order)
# 020
MPN: 002408637
REVERSE SWITCH
INTERRUTTORE RETROMARCIA
from £73.80
from £73.80
SWITCH Genuine Lamborghini - New (to order)
# 021
MPN: 008400801
WASHER
RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 022
MPN: 008410817
WASHER
RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 023
MPN: 008100840
SCREW
VITE
from £0.53
from £0.53
SCREW M8X1.25X18 UNI5739/ Genuine Lamborghini - New In stock
# 024
MPN: 002435580
ADAPTER KNOB
ADATTATORE POMELLO
from £22.02
from £22.02
GEAR LEVER KNOB ADAPTER Genuine Lamborghini - New (to order)
# 025
MPN: 240132003
CASE
SCATOLA LAVORATA
from £1,028.10
from £1,028.10
GEARBOX LEVER COMPLETE Genuine Lamborghini - New (to order)
# 026
MPN: 008410810
WASHER
RONDELLA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 027
MPN: 008700804
SCREW
VITE
from £1.03
from £1.03
SCREW 8X1.5X25 5931 8G ZG Genuine Lamborghini - New (to order)
# 028
MPN: 002433874
PLATE
PIASTRA Dl SELEZIONE
from £734.94
from £734.94
GEAR LEVER SELECTOR Genuine Lamborghini - New (to order)
# 029
MPN: 008700681
SCREW
VITE
from £0.53
from £0.53
SCREW M6X1X20UNI593310.9 ZN Genuine Lamborghini - New (to order)
# 030
MPN: 002431785
FLEX PAD
SPESSORE IN GOMMA
Supersession
Supersession
Genuine Lamborghini (no longer available to order)
# 031
MPN: 002435357
KNOB
Pomello leva cambio
from £68.49
from £68.49
Gear Lever Knob Genuine Lamborghini - New (to order)
