24.03.00 - GEARBOX

Lamborghini Diablo SE30 (1995) Gearbox Parts Diagram

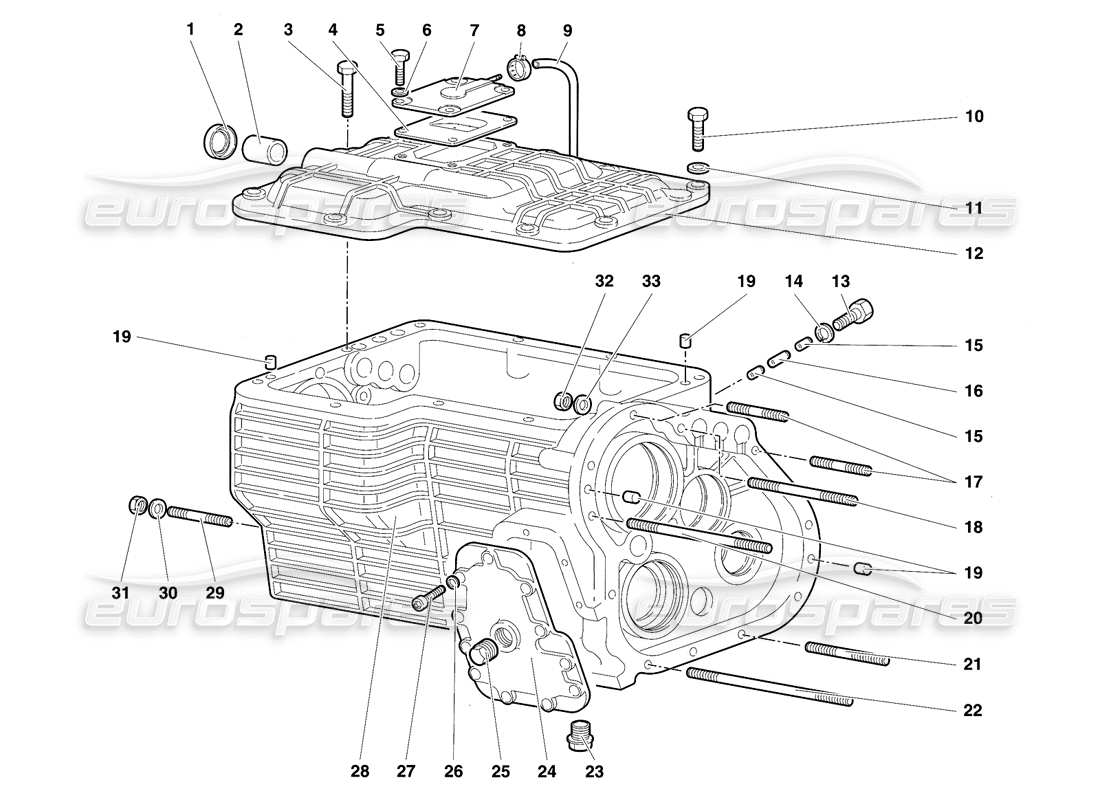

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 008611605
    SEAL
    ANELLO TENUTA
    from £10.00
    from £10.00
    OIL SEAL 16X24X5 MM Genuine Lamborghini - New (to order)
    # 002
    MPN: 008801612
    BUSHING
    BOCCOLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 003
    MPN: 008100807
    SCREW
    VITE
    from £0.53
    from £0.53
    SCREW M8X40 UNI 5737/8G ZD Genuine Lamborghini - New In stock
    # 004
    MPN: 002428643
    PAN
    VASCHETTA
    from £13.06
    from £13.06
    BREATHER COVER Genuine Lamborghini - New (to order)
    # 005
    MPN: 008100604
    SCREW
    VITE
    from £1.58
    from £1.58
    SCREW M6X14 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
    # 006
    MPN: 008410602
    WASHER
    RONDELLA
    from £28.28
    from £28.28
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
    # 007
    MPN: 002428645
    COVER
    COPERCHIO SFIATO
    from £80.02
    from £80.02
    GEARBOX BREATHER COVER Genuine Lamborghini - New (to order)
    # 008
    MPN: 008830128
    STRAP
    FASCETTA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 009
    MPN: 002428649
    VENT PIPE
    TUBO Dl SFIATO
    Lamborghini PART 002428649 Genuine Lamborghini - New (to order)
    # 010
    MPN: 008100803
    SCREW
    VITE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 011
    MPN: WHT001514
    WASHER
    RONDELLA
    from £15.09
    from £15.09
    This part replaces part number 008410805
    SPRING WASHER Genuine Lamborghini - New (to order)
    # 012
    MPN: 002424900
    UPPER COVER
    COPERCHIO SUPERIORE
    from £347.40
    from £347.40
    GEARBOX UPPER COVER Genuine Lamborghini - New (to order)
    # 013
    MPN: N01029315
    SCREW
    VITE
    from £0.85
    from £0.85
    HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
    # 014
    MPN: 008400802
    WASHER
    RONDELLA
    from £1.03
    from £1.03
    COPPER WASHER 8.4X16X1.5 Genuine Lamborghini - New In stock
    # 015
    MPN: 002425223
    DOWEL
    GRANO
    from £17.62
    from £17.62
    DOWEL Genuine Lamborghini - New (to order)
    # 016
    MPN: 002425224
    ROD
    PUNTALINO
    from £18.12
    from £18.12
    CENTRAL ROD STRUT Genuine Lamborghini - New (to order)
    # 017
    MPN: 008300894
    STUD
    PRIGIONIERO
    from £24.59
    from £24.59
    STUD M8X25 UNI 5914 8G Genuine Lamborghini - New (to order)
    # 018
    MPN: 008300895
    STUD
    PRIGIONIERO
    from £5.06
    from £5.06
    STUD M8X65 UNI 5914 8G Genuine Lamborghini - New (to order)
    # 019
    MPN: 008850806
    DOWEL
    GRANO
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 020
    MPN: 008300896
    STUD
    PRIGIONIERO
    from £16.30
    from £16.30
    STUD M8X100 UNI 59148G Genuine Lamborghini - New (to order)
    # 021
    MPN: 008300892
    STUD
    PRIGIONIERO
    from £21.60
    from £21.60
    STUD M8X50 UNI 5914 8G Genuine Lamborghini - New (to order)
    # 022
    MPN: 008300889
    STUD
    PRIGIONIERO
    from £18.20
    from £18.20
    SPECIAL STUD M8X122 Genuine Lamborghini - New (to order)
    # 023
    MPN: 086301141A
    MAGNETIC PLUG
    TAPPO MAGNETICO
    from £22.53
    from £22.53
    This part replaces part number TN-03165
    MAGNETIC PLUG 22X1.5 Genuine Lamborghini - New (to order)
    # 024
    MPN: 002428586
    SIDE COVER
    COPERCHIO LATERALE
    from £732.11
    from £732.11
    GEARBOX SIDE COVER Genuine Lamborghini - New (to order)
    # 025
    MPN: 01S409965
    PLUG
    TAPPO
    from £105.93
    from £105.93
    This part replaces part number 008931802
    PLUG Genuine Lamborghini - New (to order)
    # 026
    MPN: 008410602
    WASHER
    RONDELLA
    from £26.95
    from £26.95
    WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
    # 027
    MPN: 008700614
    SCREW
    VITE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 028
    MPN: 002429421
    GEARBOX CASE
    SCATOLA CAMBIO
    from £2,590.98
    from £2,590.98
    GEARBOX Genuine Lamborghini - New (to order)
    # 029
    MPN: 008300602
    STUD
    PRIGIONIERO
    from £4.19
    from £4.19
    STUD M6X25 UNI 5911/8G/ZD Genuine Lamborghini - New (to order)
    # 030
    MPN: 008410603
    WASHER
    RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 031
    MPN: N01100637
    NUT
    DADO
    from £0.52
    from £0.52
    This part replaces part number 008200604
    HEX.NUT Genuine Lamborghini - New In stock
    # 032
    MPN: 008200806
    NUT
    DADO
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 033
    MPN: WHT001514
    WASHER
    RONDELLA
    from £15.09
    from £15.09
    This part replaces part number 008410805
    SPRING WASHER Genuine Lamborghini - New (to order)
