3132.01.00 - Brake System

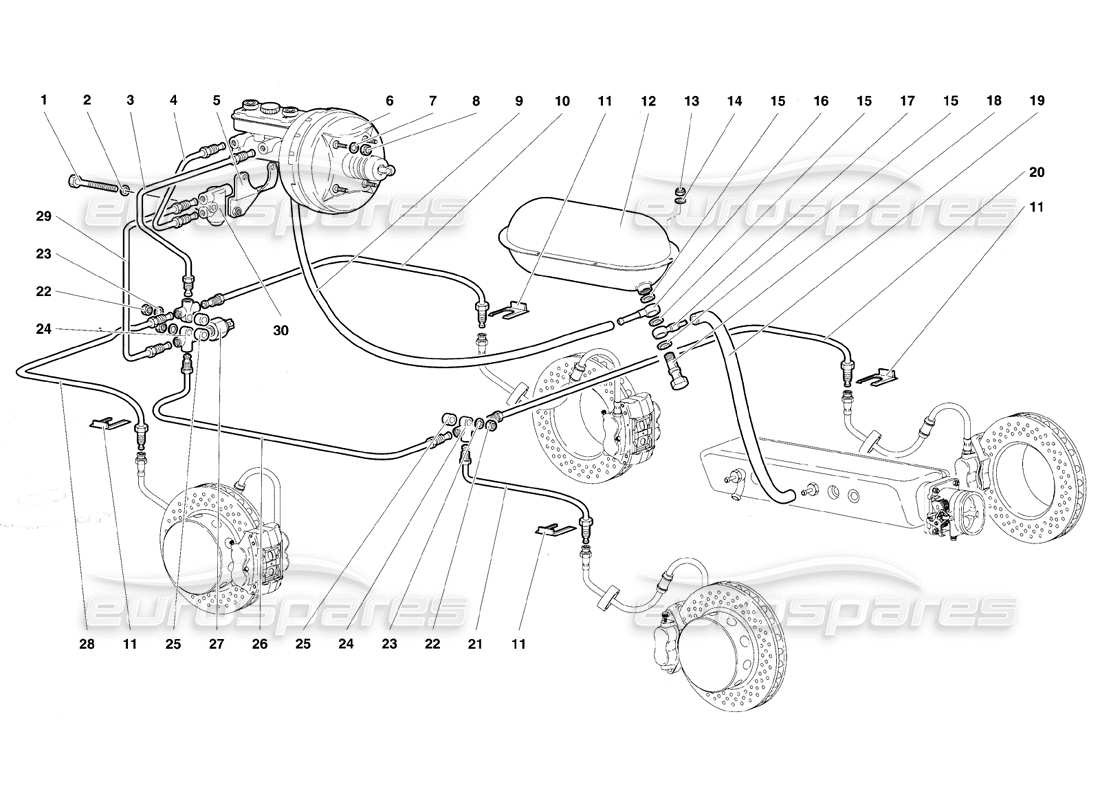

Lamborghini Diablo SE30 (1995) Brake System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008100810
SCREW
VITE
# 002
MPN: 008410806
WASHER
RONDELLA
Supersession
Supersession
# 003
MPN: 003131522
PIPE
Tubo
from £103.23
from £103.23
# 004
MPN: 003234633
PIPE
Tubo
from £109.04
from £109.04
# 005
MPN: 004234632
SUPPORT
SUPPORTO
from £242.10
from £242.10
# 006
MPN: 004205398
BRAKE PUMP
from £502.08
from £502.08
This part replaces part number 004219271
# 006
MPN: 004224655
BRAKE-SERVO
LHD & RHD
from £1,288.32
from £1,288.32
# 007
MPN: 008400801
WASHER
RONDELLA
Supersession
Supersession
# 008
MPN: 008200804
NUT
DADO
from £0.73
from £0.73
# 009
MPN: 003226068
FLEX. HOSE
TUBO FLESSIBILE
from £121.06
from £121.06
# 010
MPN: 003131524
PIPE
Tubo
from £27.25
from £27.25
# 011
MPN: 003130840
PLATE
PIASTRA
from £16.77
from £16.77
# 012
MPN: 003204974
VACUM TANK
SERBATOIO A DEPRESSIONE
from £166.92
from £166.92
# 013
MPN: N0211963
NUT
DADO
from £0.52
from £0.52
# 014
MPN: WHT001187
WASHER
RONDELLA
from £0.56
from £0.56
This part replaces part number 008400502
# 015
MPN: 003101513
WASHER
RONDELLA
from £0.97
from £0.97
# 016
MPN: 003230031
CONNECTION
RACCORDO
from £22.42
from £22.42
# 017
MPN: 003230030
VALVE
VALVOLA Dl NON RITORNO
from £17.34
from £17.34
# 018
MPN: 003101486
SCREW
Vite forata
from £20.86
from £20.86
# 019
MPN: 410611937
FLEX. HOSE
TUBO FLESSIBILE
from £53.70
from £53.70
# 020
MPN: 003231506
PIPE
Tubo
# 021
MPN: 003230799
PIPE
Tubo
from £137.22
from £137.22
# 022
MPN: 008200606
NUT
Supersession
Supersession
# 023
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 024
MPN: 003208682
CONNECTION
RACCORDO
from £35.69
from £35.69
# 025
MPN: 003130441
BUSHING
BOCCOLA
from £12.27
from £12.27
# 026
MPN: 003233558
PIPE
Tubo
from £83.74
from £83.74
# 027
MPN: 003208693
STOP SWITCH
INTERRUTTORE STOP
from £87.99
from £87.99
# 028
MPN: 003131523
PIPE
Tubo
from £68.74
from £68.74
# 029
MPN: 003235237
PIPE
Tubo
from £18.12
from £18.12
# 030
MPN: 003229833
BRAKE COMPENSAT.
RIPARTITORE Dl PRESSIONE
from £262.50
from £262.50
