31.01.00 - Front Brakes

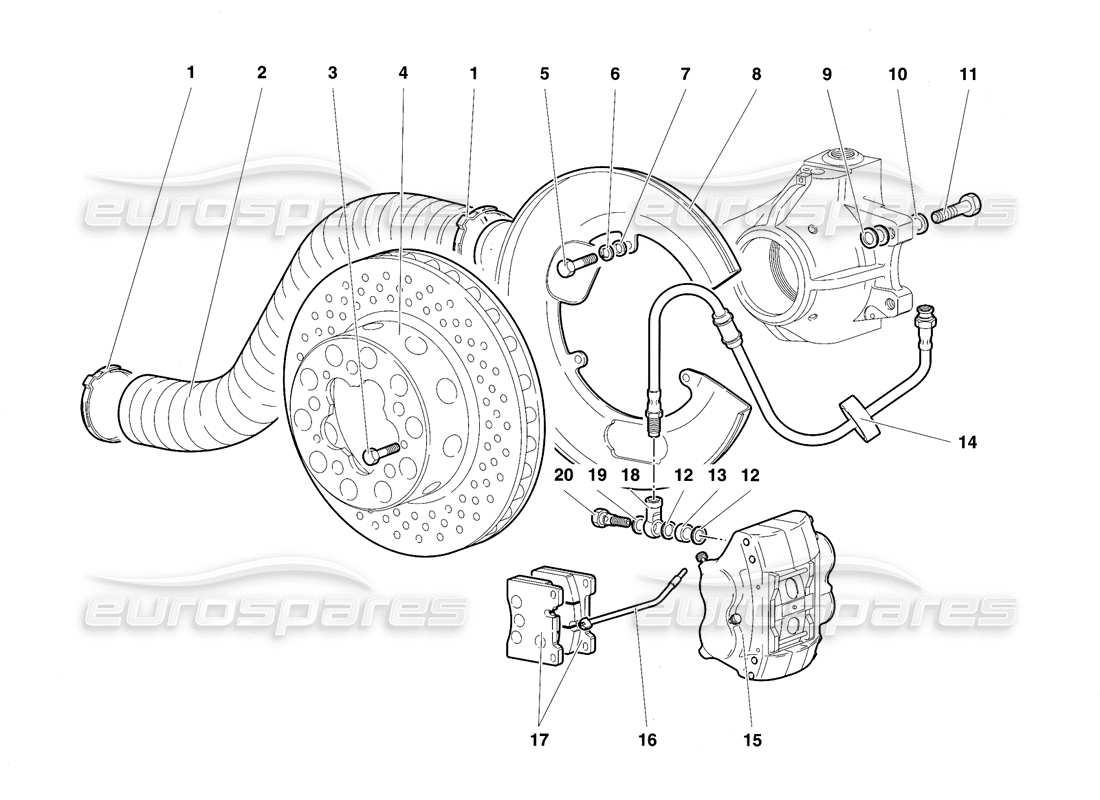

Lamborghini Diablo SE30 (1995) Front Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 008836302
      STRAP
      FASCETTA
      from £7.10
      from £7.10
      CLAMP Genuine Lamborghini - New (to order)
      # 002
      MPN: 009453133

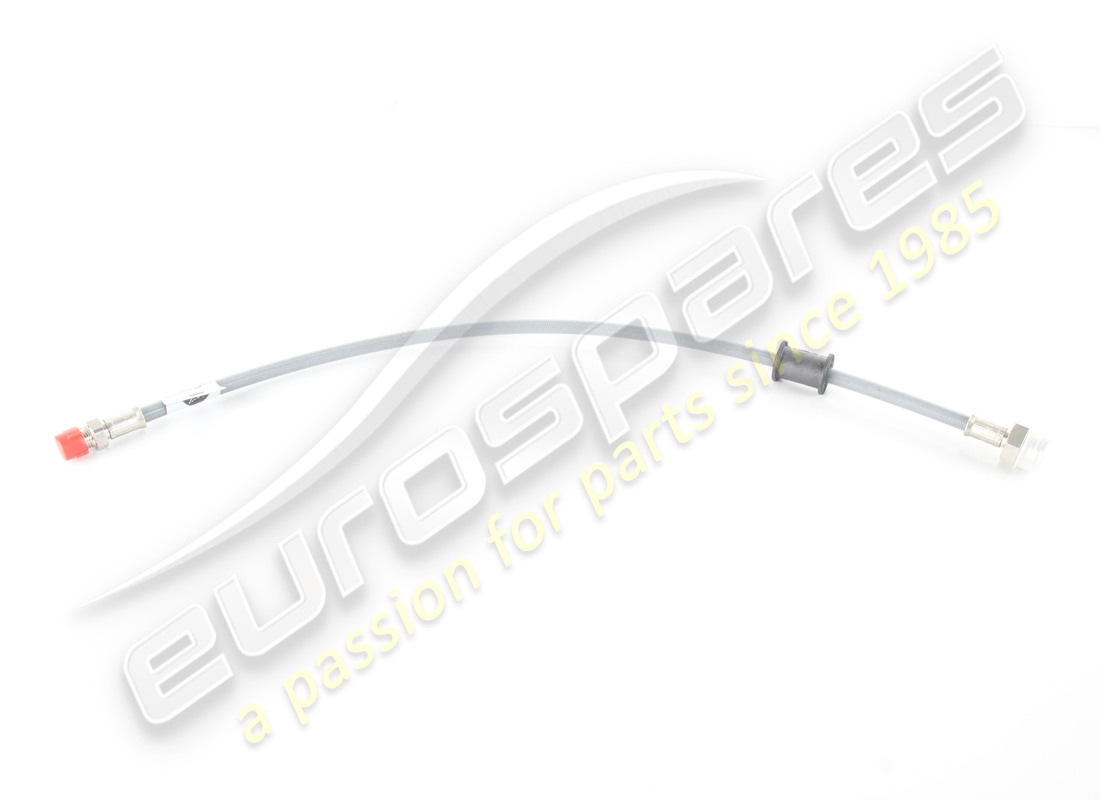

      FLEX. HOSE
      TUBO FLESSIBILE
      from £153.80
      from £153.80
      AIR DELIVERY CORRUGATED PIPE Genuine Lamborghini - New In stock
      # 003
      MPN: N01029315
      SCREW
      VITE
      from £0.80
      from £0.80
      HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
      # 004
      MPN: 003134861

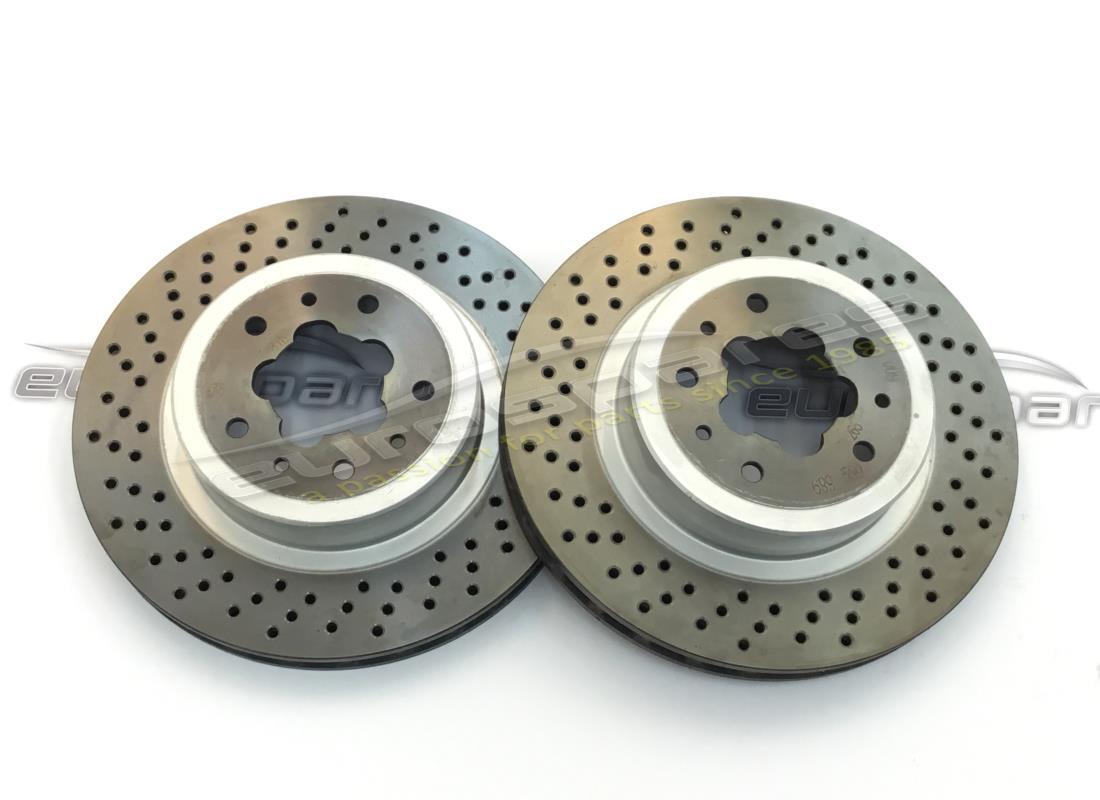

      FRONT BRAKE DISC
      DISCO FRENO ANTERIORE
      from £535.81
      from £535.81
      FRONT BRAKE DISC Genuine Lamborghini - New (to order)

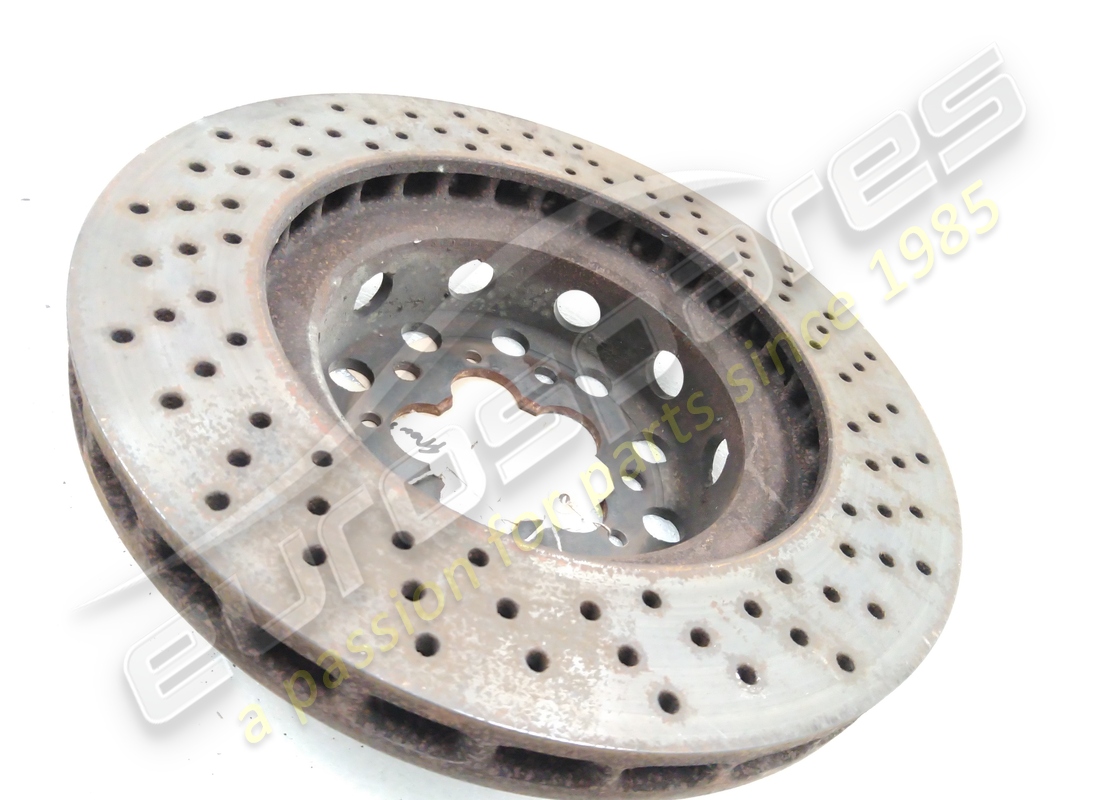

      FRONT BRAKE DISC Genuine Lamborghini - Used In stock
      SURFACE RUST SLIGHT RIDGE.
      FRONT BRAKE DISC Genuine Lamborghini - New (other) In stock
      Price per disc
      # 005
      MPN: N01020717
      SCREW
      VITE
      from £0.52
      from £0.52
      This part replaces part number 008100504
      HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
      screw, hex. hd. - M5 X 12 - D - MJ 1973>> (N 01020717) Genuine Porsche Part - New (to order)
      # 006
      MPN: 008410508
      WASHER
      RONDELLA
      from £0.52
      from £0.52
      WASHER 10X5.3X0.6 DIN 6798-A/C 72/B Genuine Lamborghini - New In stock
      # 007
      MPN: 008400509
      WASHER
      RONDELLA
      from £0.52
      from £0.52
      FLAT WASHER 5.3X11X1UNI1734 Genuine Lamborghini - New (to order)
      # 008
      MPN: 003135097
      RIGHT MUDGUARDS
      PARASPRUZZI DX
      from £129.83
      from £129.83
      RH MUDGUARD ASSEMBLY Genuine Lamborghini - New (to order)
      RH MUDGUARD ASSEMBLY Genuine Lamborghini - Used In stock
      # 008
      MPN: 003135098
      LEFT MUDGUARDS
      PARASPRUZZI SX
      from £236.05
      from £236.05
      LH MUDGUARD ASSEMBLY Genuine Lamborghini - New (to order)
      # 009
      MPN: 003230719
      WASHER
      RONDELLA SP = 0,05 MM
      from £0.54
      from £0.54
      WASHER SHIM 0.05 Genuine Lamborghini - New (to order)
      # 009
      MPN: 003230720
      WASHER
      RONDELLA SP = 0,1 MM
      from £4.19
      from £4.19
      WASHER SHIM 0.1 Genuine Lamborghini - New In stock
      # 009
      MPN: 003230722
      WASHER
      RONDELLA SP = 0,3 MM
      from £0.73
      from £0.73
      WASHER SHIM 0.3 Genuine Lamborghini - New (to order)
      # 009
      MPN: 003230723
      WASHER
      RONDELLA SP = 0,4 MM
      from £0.54
      from £0.54
      WASHER SHIM 0.4 Genuine Lamborghini - New (to order)
      # 009
      MPN: 003230724
      WASHER
      RONDELLA SP = 0,5 MM
      from £0.54
      from £0.54
      WASHER SHIM 0.5 Genuine Lamborghini - New In stock
      # 009
      MPN: 003230725
      WASHER
      RONDELLA SP = 0,6 MM
      from £0.54
      from £0.54
      WASHER SHIM 0.6 Genuine Lamborghini - New (to order)
      # 009
      MPN: 003230726
      WASHER
      RONDELLA SP = 0,8 MM
      from £0.54
      from £0.54
      WASHER SHIM 0.8 Genuine Lamborghini - New (to order)
      # 009
      MPN: 003230727
      WASHER
      RONDELLA SP = 1 MM
      from £2.24
      from £2.24
      WASHER SHIM 1. Genuine Lamborghini - New In stock
      # 010
      MPN: 003230721
      WASHER
      RONDELLA SP = 0,2 MM
      from £0.54
      from £0.54
      WASHER SHIM 0.2 Genuine Lamborghini - New In stock
      # 010
      MPN: 008401306
      WASHER
      RONDELLA
      from £1.49
      from £1.49
      WASHER D.13X24X3 8G Genuine Lamborghini - New (to order)
      # 011
      MPN: WHT003362
      WASHER
      RONDELLA
      from £0.88
      from £0.88
      COPPER WASHER D.12X22X1.5 Genuine Lamborghini - New In stock
      # 012
      MPN: 003113906
      WASHER
      RONDELLA
      from £11.68
      from £11.68
      WASHER Genuine Lamborghini - New (to order)
      # 013
      MPN: 003129777
      SPACER
      DISTANZIALE
      from £33.59
      from £33.59
      BRAKE PIPE SHOE SHIM Genuine Lamborghini - New (to order)
      # 014
      MPN: 003129881
      FRONT BRAKES FLEXI PIPE
      from £66.32
      from £66.32
      FRONT SHOE PIPE Genuine Lamborghini - New In stock
      # 015
      MPN: 003135598
      RIGHT BRAKE CALIPER
      PINZA FRENI DX
      from £736.46
      from £736.46
      FRONT RH PAINTED BRAKE SHOE Genuine Lamborghini - New (to order)
      FRONT RH PAINTED BRAKE SHOE Genuine Lamborghini - Used In stock
      # 015
      MPN: 003135599
      LEFT BRAKE CALIPER
      PINZA FRENI SX
      from £1,919.81
      from £1,919.81
      FRONT LH PAINTED BRAKE SHOE Genuine Lamborghini - New (to order)
      FRONT LH PAINTED BRAKE SHOE Genuine Lamborghini - Used In stock
      # 016
      MPN: 003135644
      ELECT CABLE
      CAVO ELETTRICO
      from £222.21
      from £222.21
      WORN PADS SENSOR Genuine Lamborghini - New (to order)
      # 017
      MPN: 003135292
      FRONT BRAKE PADS
      from £89.25
      from £89.25
      FRONT BRAKE PAD (003135292) Eurospares Approved Part - New (to order)
      FRONT BRAKE PAD (003135292) Eurospares Approved Part - New (other) In stock
      Set of 4
      FRONT BRAKE SINGLE PAD Genuine Lamborghini - New (to order)
      FRONT BRAKE SINGLE PAD Genuine Lamborghini - New (other) In stock
      PRICE EACH PAD
      # 018
      MPN: 003113904
      CONNECTION
      RACCORDO
      from £92.09
      from £92.09
      UNION Genuine Lamborghini - New In stock
      # 019
      MPN: 003113905
      WASHER
      RONDELLA
      from £1.55
      from £1.55
      WASHER Genuine Lamborghini - New In stock
      # 020
      MPN: 003129778
      SCREW
      VITE
      from £37.32
      from £37.32
      FRONT SHOE HOSE BOLT Genuine Lamborghini - New (to order)
