32.01.00 - Rear Brakes

Lamborghini Diablo SE30 (1995) Rear Brakes Parts Diagram

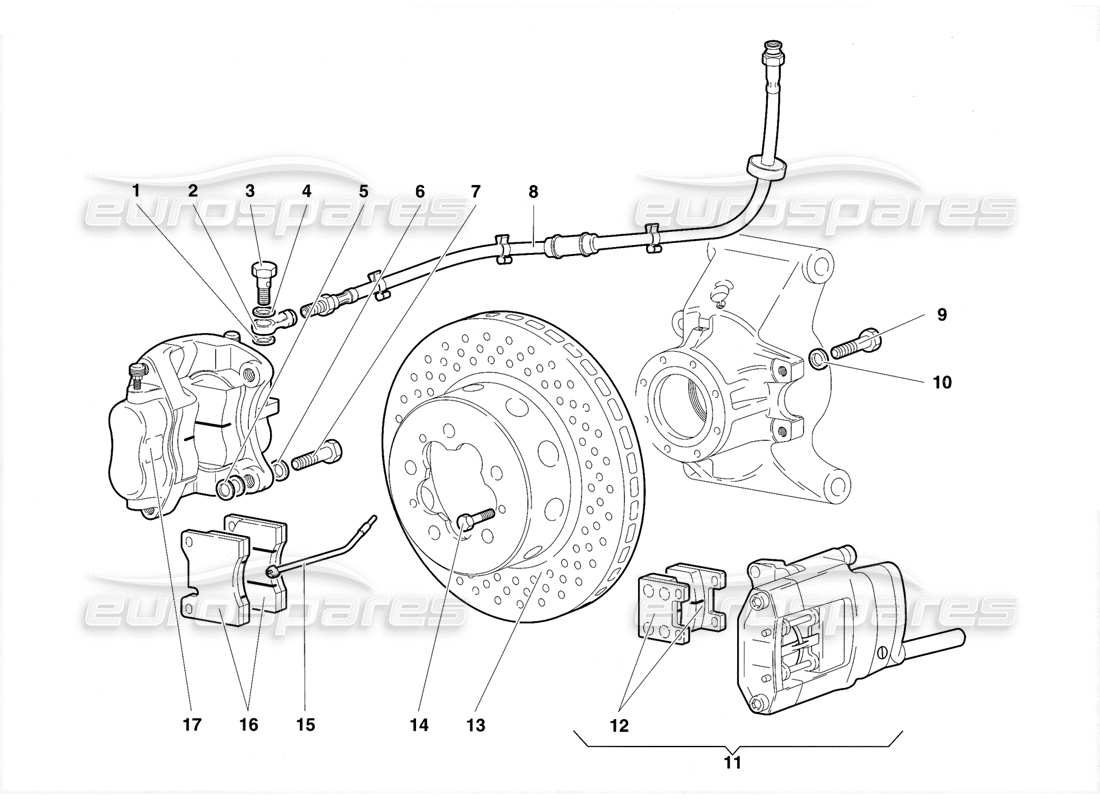

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 003113905
WASHER
RONDELLA
from £1.55
from £1.55
# 002
MPN: 003113904
CONNECTION
RACCORDO
from £92.09
from £92.09
# 003
MPN: 003113907
SCREW
VITE
from £17.17
from £17.17
# 004
MPN: 003113906
WASHER
RONDELLA
from £11.68
from £11.68
# 005
MPN: 003230719
SHIM
SPESSORE Dl REGISTRO 0,05 MM
from £0.54
from £0.54
# 005
MPN: 003230720
SHIM
SPESSORE Dl REGISTRO 0,1 MM
from £4.19
from £4.19
# 005
MPN: 003230721
SHIM
SPESSORE Dl REGISTRO 0,2 MM
from £0.54
from £0.54
# 005
MPN: 003230722
SHIM
SPESSORE Dl REGISTRO 0,3 MM
from £0.73
from £0.73
# 005
MPN: 003230723
SHIM
SPESSORE Dl REGISTRO 0,4 MM
from £0.54
from £0.54
# 005
MPN: 003230724
SHIM
SPESSORE Dl REGISTRO 0,5 MM
from £0.54
from £0.54
# 005
MPN: 003230725
SHIM
SPESSORE Dl REGISTRO 0,6 MM
from £0.54
from £0.54
# 005
MPN: 003230726
SHIM
SPESSORE Dl REGISTRO 0,8 MM
from £0.54
from £0.54
# 005
MPN: 003230727
SHIM
SPESSORE Dl REGISTRO 1,0 MM
from £2.24
from £2.24
# 006
MPN: 008401217
WASHER
RONDELLA
from £3.65
from £3.65
# 007
MPN: 008101247
SCREW
VITE
from £4.32
from £4.32
# 008
MPN: 003229882
PIPE
REAR BRAKE HOSE
from £104.89
from £104.89
# 009
MPN: 008101246
SCREW
VITE
from £38.51
from £38.51
# 010
MPN: 008411302
WASHER
RONDELLA
Supersession
Supersession
# 011
MPN: 003333273
LEFT BRAKE CALIPER
PINZA FRENI SX
from £1,608.48
from £1,608.48
# 011
MPN: 003333274
RIGHT BRAKE CALIPER
PINZA FRENI DX
from £1,608.48
from £1,608.48

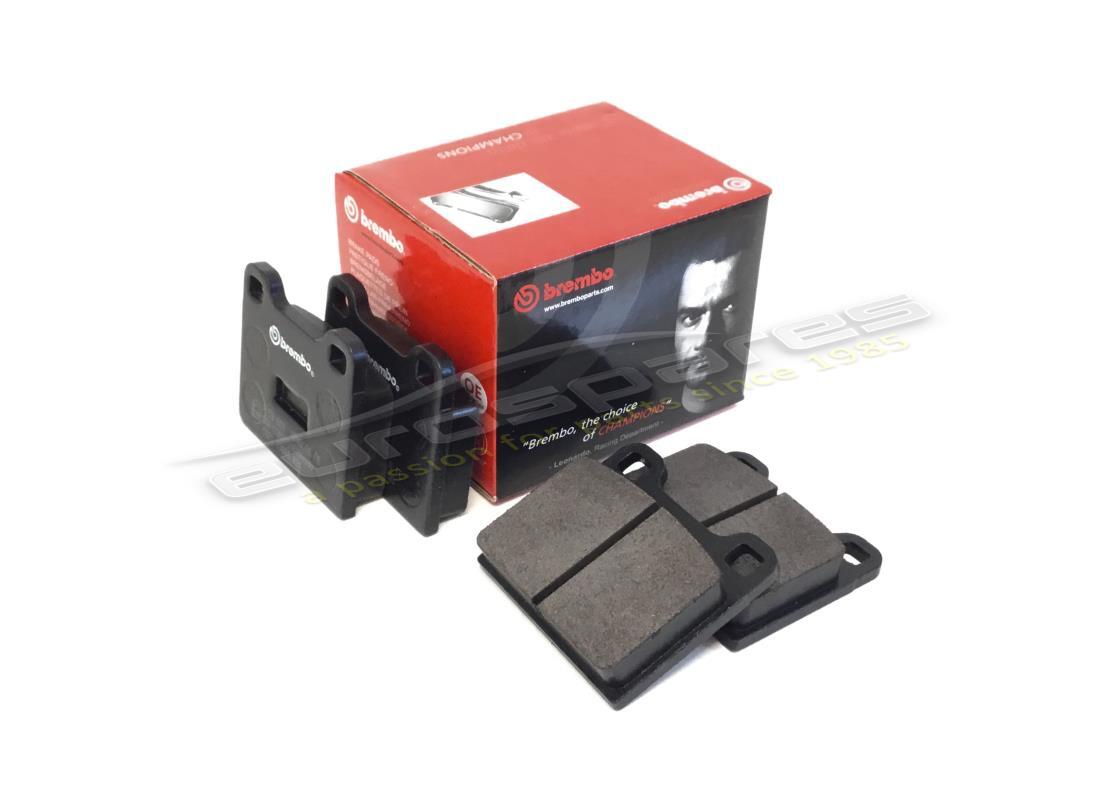

# 012
MPN: 003331672
HANDBRAKE PADS SET
use 108134 as alternative
from £109.45
from £109.45

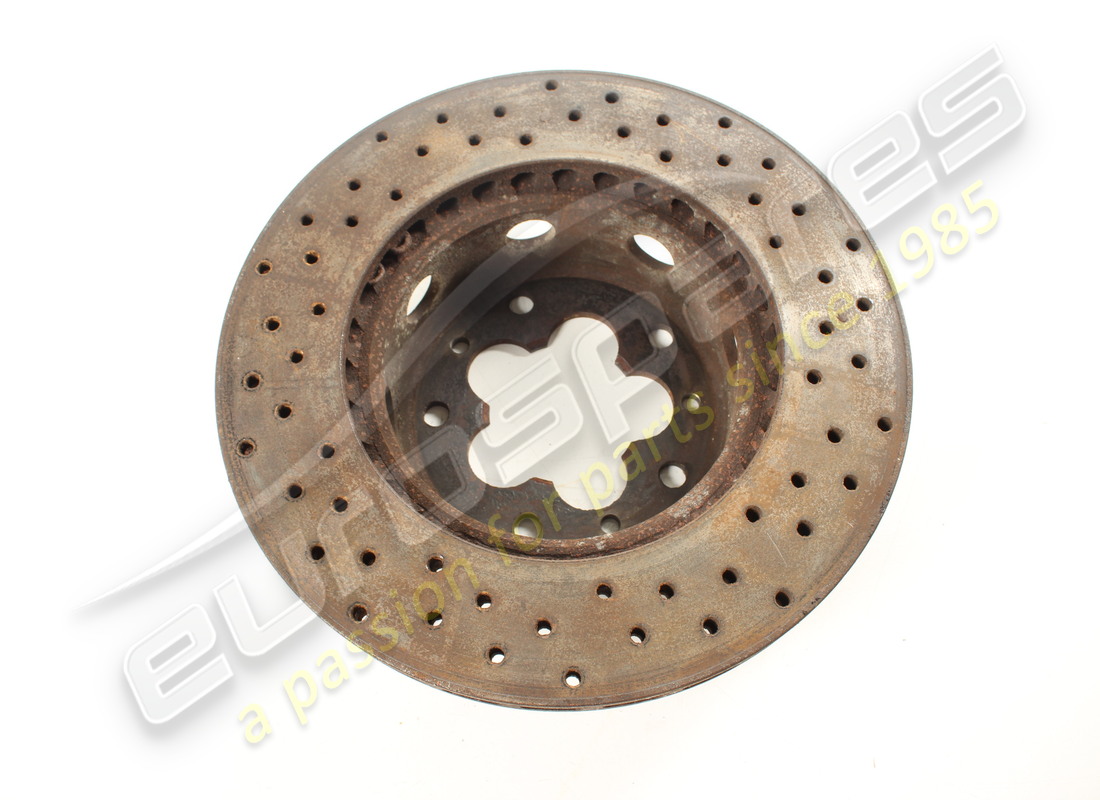

# 013
MPN: 003234862
REAR BRAKE DISC
DISCO FRENO POSTERIORE
from £1,017.69
from £1,017.69
# 014
MPN: N01029315
SCREW
VITE
from £0.80
from £0.80
# 015
MPN: 003135644
CABLE
BRAKE CABLE WEAR
from £222.21
from £222.21

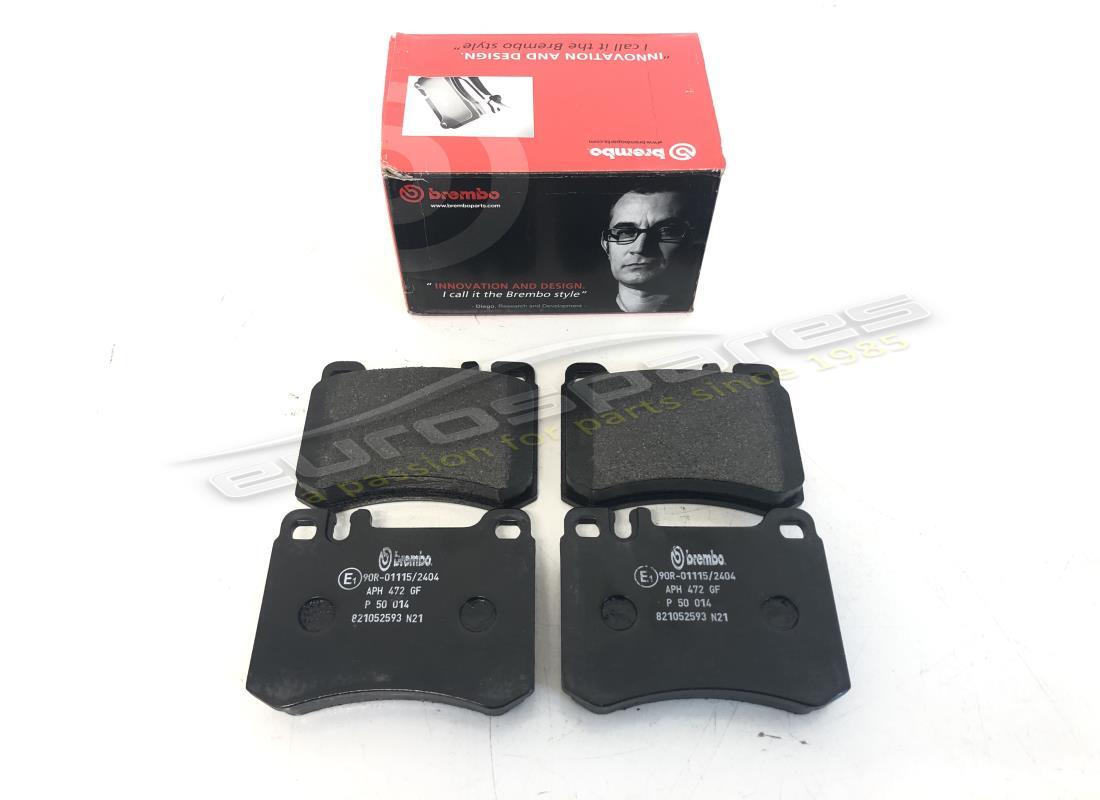

# 016
MPN: 003235293
REAR BRAKE PADS
Complete set of 4
from £120.62
from £120.62
# 017
MPN: 003235600
RIGHT BRAKE CALIPER
RIGHT REAR BRAKE CALIPER
from £736.46
from £736.46
# 017
MPN: 003235601
LEFT BRAKE CALIPER
PINZA FRENI POSTERIORE SX
from £1,339.01
from £1,339.01
