45.01.00 - Climate Control

Lamborghini Diablo SE30 (1995) Climate Control Parts Diagram

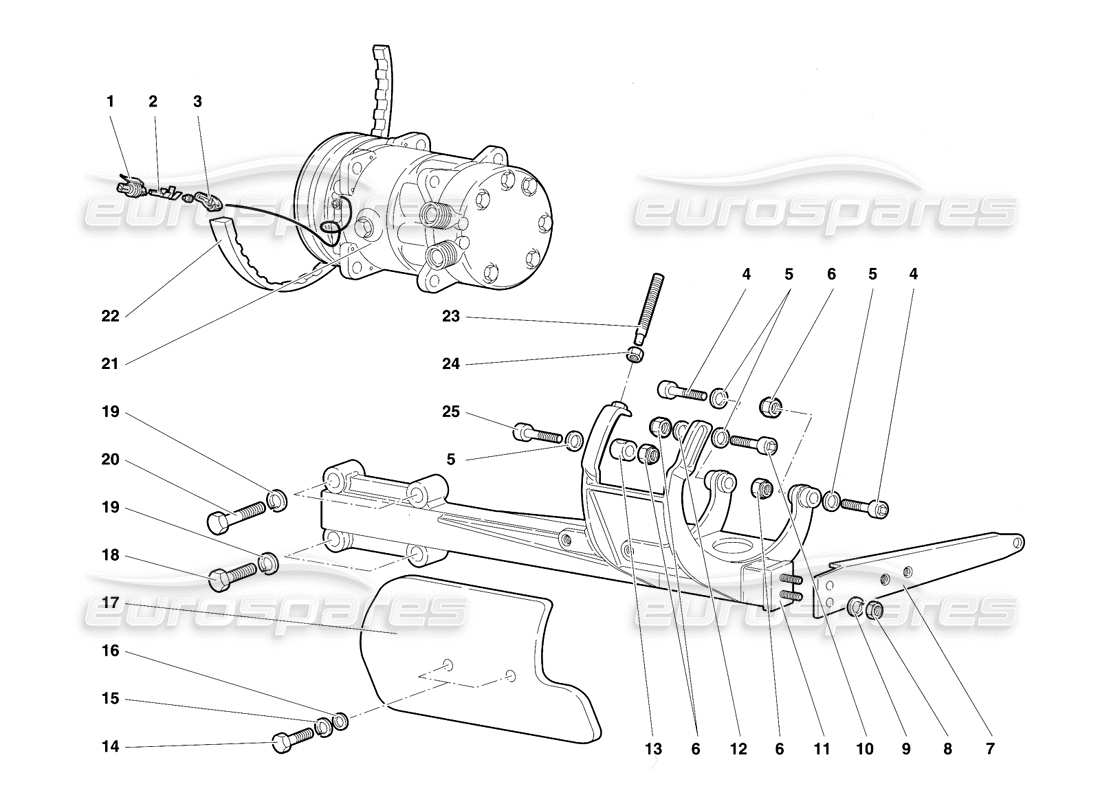

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 006132546
    CONNECTION
    CONNESSIONE
    from £11.32
    from £11.32
    ONE-PIN CONNECTOR Genuine Lamborghini - New (to order)
    # 002
    MPN: 006132584
    Key
    LINGUETTA
    from £4.98
    from £4.98
    THERM. AMP 282110-1 Genuine Lamborghini - New (to order)
    # 003
    MPN: 006133204
    CLIP
    FERMAGLIO
    from £0.54
    from £0.54
    CONNECTOR SECONDARY LOCK Genuine Lamborghini - New (to order)
    # 004
    MPN: 008701008
    SCREW
    VITE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 005
    MPN: WHT000768
    WASHER
    from £1.21
    from £1.21
    This part replaces part number 008410806 - and 1 more. Click to view details
    SPRING WASHER Genuine Lamborghini - New In stock
    # 006
    MPN: 008201008
    NUT
    DADO
    from £0.55
    from £0.55
    NUT Genuine Lamborghini - New In stock
    # 007
    MPN: 004529645
    TIE ROD
    TIRANTE
    from £23.10
    from £23.10
    COMPRESSOR MOUNT TIEROD Genuine Lamborghini - New (to order)
    # 008
    MPN: 008200801
    NUT
    DADO
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 009
    MPN: 008410806
    WASHER
    RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 010
    MPN: 008701017
    SCREW
    VITE
    from £0.66
    from £0.66
    SCREW M10X35 UNI 5931/8G/Z D Genuine Lamborghini - New In stock
    # 011
    MPN: 004529535
    SUPPORT
    SUPPORTO
    from £354.86
    from £354.86
    CONDITIONER COMPRESSOR BRACKET Genuine Lamborghini - New (to order)
    # 012
    MPN: 008401028
    WASHER
    RONDELLA
    from £3.65
    from £3.65
    WASHER 22X10.5X2.5 UNI 1734/5S /Z Genuine Lamborghini - New (to order)
    # 013
    MPN: 004529646
    SPACER
    DISTANZIALE
    from £15.59
    from £15.59
    ADJUSTMENT SHIM Genuine Lamborghini - New (to order)
    # 014
    MPN: 008100620
    BOLT
    VITE
    from £3.65
    from £3.65
    SCREW M6X12 UNI 5739/5S/Z Genuine Lamborghini - New (to order)
    # 015
    MPN: 008410603
    LOCK WASHER
    RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 016
    MPN: 008400606
    WASHER
    RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 017
    MPN: 004532221
    SHIELD
    PROTEZIONE
    from £533.95
    from £533.95
    COMPRESSOR HEAT GUARD Genuine Lamborghini - New (to order)
    # 018
    MPN: N01033520
    SCREW
    VITE
    from £1.04
    from £1.04
    HEXAGON HEAD BOLT Genuine Lamborghini - New In stock
    # 019
    MPN: 008410806
    WASHER
    RONDELLA
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 020
    MPN: 008100841
    SCREW
    VITE
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 021
    MPN: 004530198
    AIR COMPRESSOR
    COMPRESSORE
    from £890.59
    from £890.59
    COMPRESSOR Genuine Lamborghini - New (to order)
    # 022
    MPN: 004529536
    T. BELT (UNTIL 12042)
    CINGHIATRASMISSIONE (fino alia 12042)
    from £114.00
    from £114.00
    COMPRESSOR BELT Genuine Lamborghini - New (to order)
    # 022
    MPN: 004534071
    T. BELT (FROM 12043)
    CINGHIA TRASMISSIONE (dalla 12043)
    from £80.33
    from £80.33
    COMPRESSOR BELT Genuine Lamborghini - New In stock
    # 023
    MPN: 008700841
    SCREW
    VITE
    from £1.59
    from £1.59
    SCREW M8X70 UNI 5925/12K Genuine Lamborghini - New In stock
    # 024
    MPN: 008200801
    NUT
    DADO
    Supersession
    Supersession
    Genuine Lamborghini (no longer available to order)
    # 025
    MPN: 008701020
    SCREW
    VITE
    from £1.06
    from £1.06
    SCREW M10X50 UNI 5931/8G/Z D Genuine Lamborghini - New (to order)
