52.01.00 - Rear Wheel and Hub Carrier

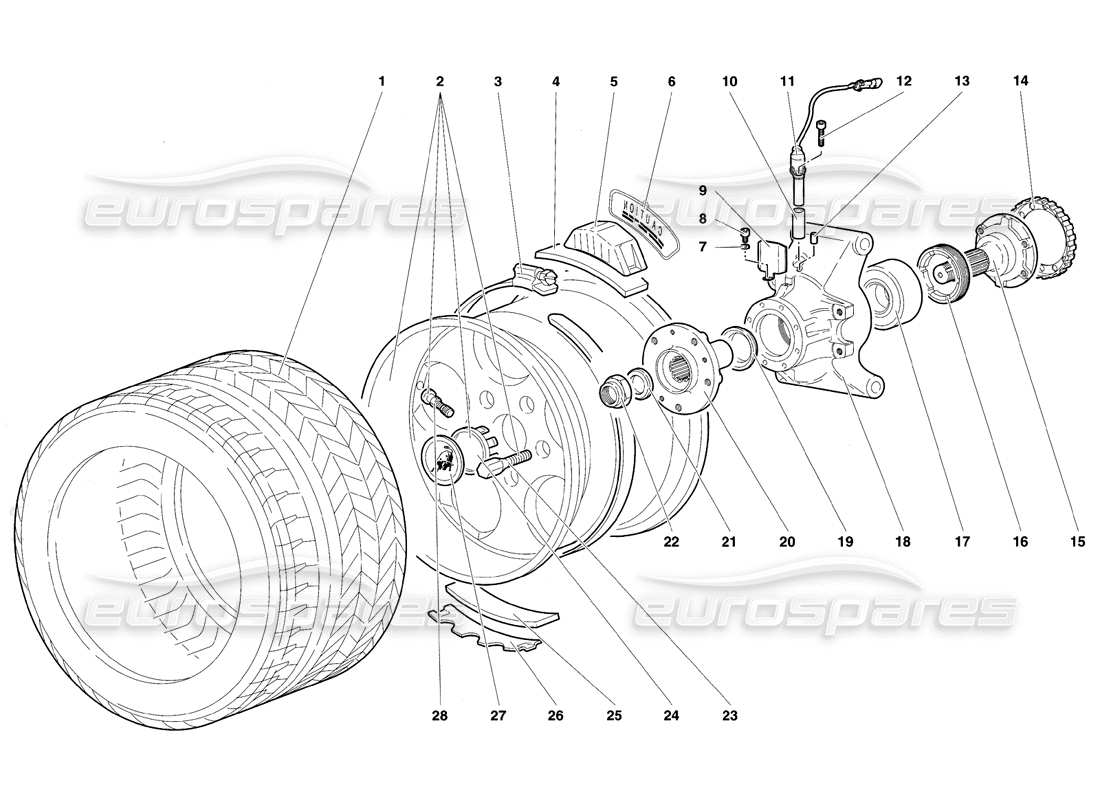

Lamborghini Diablo SE30 (1995) Rear Wheel and Hub Carrier Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 005334365
REAR TYRE
REAR TIRE
# 002
MPN: 005234364
REAR RIM
CERCHIO RUOTA POST.
from £2,265.36
from £2,265.36
# 003
MPN: 005131893
STRAP
FASCETTA
# 004
MPN: 005131894
GASKET
Guarnizione
from £1.82
from £1.82
# 005
MPN: 005131891
SENDING UNIT
TRASMETTITORE
# 006
MPN: 005132551
PLATE
TARGHETTA
from £2.58
from £2.58
# 007
MPN: 008410612
WASHER
RONDELLA
Supersession
Supersession
# 008
MPN: 008700643
SCREW
VITE
from £0.53
from £0.53
# 009
MPN: 005235575
SHIELD
PROTEZIONE
from £19.20
from £19.20
# 010
MPN: 005234786
BUSHING
BOCCOLA
from £25.50
from £25.50
# 011
MPN: 005235331
TYRE REVOL. SENSOR
SENSORE GIRI RUOTA LAVOR.
from £1,156.61
from £1,156.61
# 012
MPN: 008700601
SCREW
VITE
from £3.65
from £3.65
# 013
MPN: 005235213
BUSHING
BOCCOLA
from £7.13
from £7.13
# 014
MPN: 005234779
PHONIC WHEEL
RUOTA FONICA
from £87.89
from £87.89
# 015
MPN: 005235048
FLANGE
FLANGIA FISS.SEMIASSE
from £1,844.77
from £1,844.77
# 016
MPN: 005233369
PLUG
GHIERA X CSN SUL PORTAMOZ
from £150.90
from £150.90
# 017
MPN: 008514501
BEARING
CUSCINETTO
from £72.72
from £72.72
# 018
MPN: 005234992

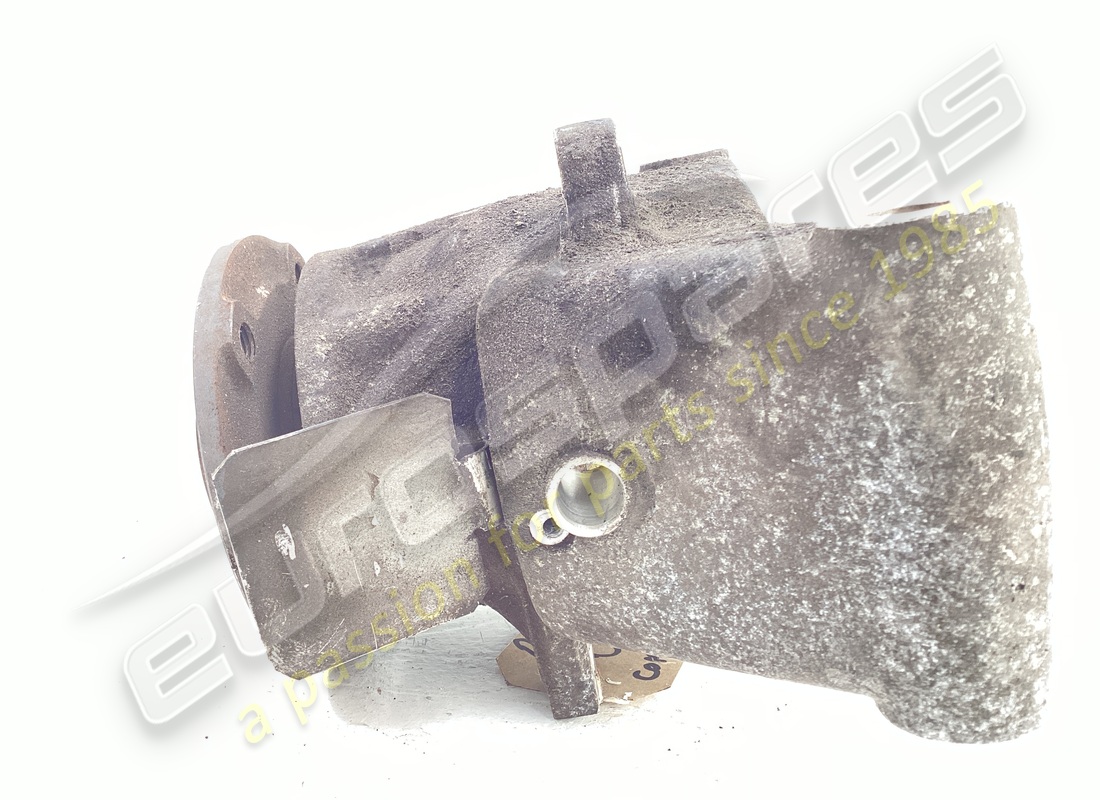

LEFT HUB HOUSING
PORTAMOZZO SX
from £1,162.35
from £1,162.35
# 018
MPN: 005234993
RIGHT HUB HOUSING
PORTAMOZZO DX
from £1,289.27
from £1,289.27
# 019
MPN: 005225957
SPACER
DISTANZIALE
from £69.82
from £69.82
# 020
MPN: 005234999
HUB
REAR WHEEL HUB.
from £1,651.47
from £1,651.47
# 021
MPN: 008403103
WASHER
RONDELLA
from £7.55
from £7.55
# 022
MPN: 005231418
NUT
DADO X MOZZO POST.
from £565.48
from £565.48
# 023
MPN: 005135969
STUD
COLONNETTA
from £31.84
from £31.84
# 024
MPN: 005236122
PLUG
TAPPO
Supersession
Supersession
# 025
MPN: 005131895
GASKET
GUARNIZ.X EMETTIT.IMPULSI
from £2.16
from £2.16
# 026
MPN: 005131892
BALANCE WEIGHT
CONTRAPPESO
from £20.78
from £20.78
# 027
MPN: 005236123
ORNAMENT
FREGIO
Supersession
Supersession
# 028
MPN: 005336015
VALVE
VALVOLA
from £11.63
from £11.63
