lamborghini diablo se30 (1995) electrical system (until se 079-150) parts diagram

61.03.00 - Electrical System (Until SE 079-150)

Lamborghini Diablo SE30 (1995) Electrical System (Until SE 079-150) Parts Diagram

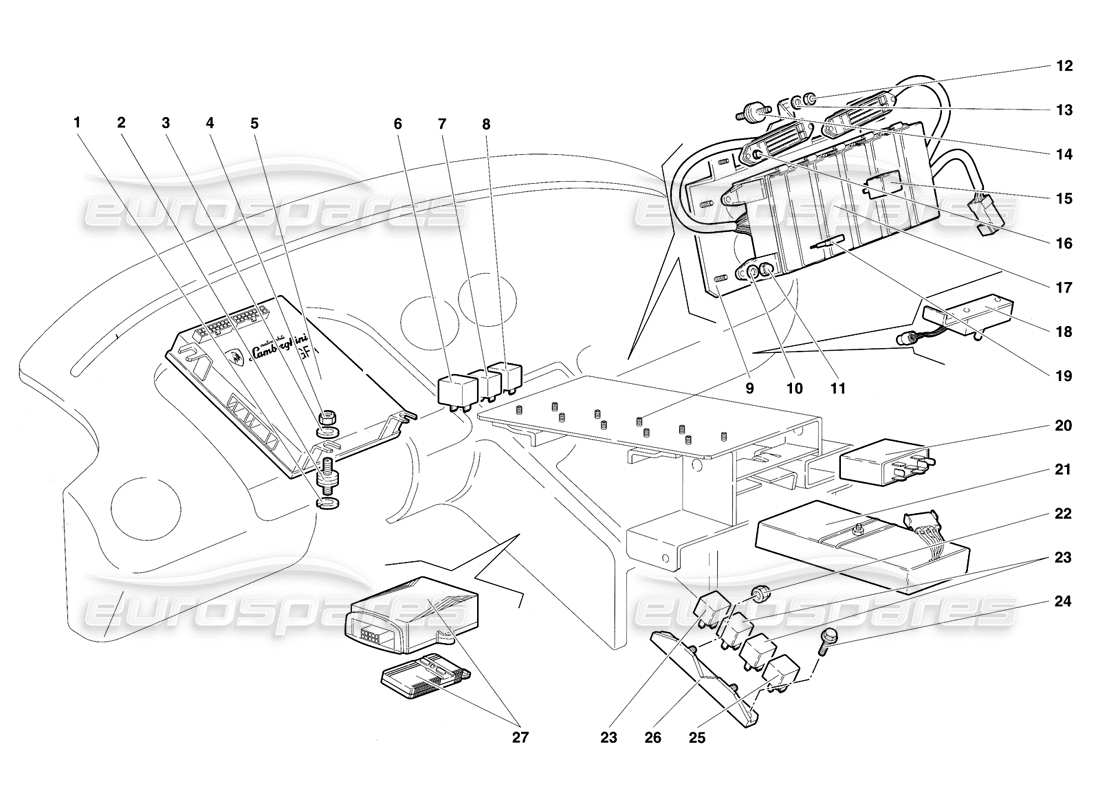

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 008410611
      WASHER
      RONDELLA
      from £0.53
      from £0.53
      SNAP RING D.6 DIN 7980 Genuine Lamborghini - New (to order)
      # 002
      MPN: 008920603
      ELASTIC SUPPORT
      SUPPORTO ELASTICO
      Lamborghini PART 008920603 Genuine Lamborghini - New (to order)
      # 003
      MPN: WHT002961
      WASHER
      RONDELLA
      from £0.53
      from £0.53
      This part replaces part number 008400607
      WASHER Genuine Lamborghini - New In stock
      # 004
      MPN: 008200606
      NUT
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 005
      MPN: 006033362
      E.C.U. GFA
      CENTRALINA GFA
      Lamborghini PART 006033362 Genuine Lamborghini - New (to order)
      # 006
      MPN: 006030676
      RELAY
      RELAY
      from £99.08
      from £99.08
      LIGHT RELAY Genuine Lamborghini - New (to order)
      # 007
      MPN: 006036297
      RELAY
      RELAY ITALAMEC 064
      from £25.22
      from £25.22
      RELAY Genuine Lamborghini - New (to order)
      # 008
      MPN: 006311155
      RELAY
      RELAY 87B BOSCH 0.332.015.006
      from £36.37
      from £36.37
      RELAY Genuine Lamborghini - New In stock
      # 009
      MPN: 006135155
      PLATE - SUPPORT
      SUPPORT PLATE
      from £90.79
      from £90.79
      CENTRAL RELAY BOX PLATE Genuine Lamborghini - New (to order)
      # 010
      MPN: 008400620
      WASHER
      RONDELLA
      from £0.95
      from £0.95
      WASHER 6.5 UNI 1734/5S/B Genuine Lamborghini - New (to order)
      # 011
      MPN: 008200605
      NUT
      DADO
      from £1.74
      from £1.74
      M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
      # 012
      MPN: 008200606
      NUT
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 013
      MPN: WHT002961
      WASHER
      RONDELLA
      from £0.54
      from £0.54
      This part replaces part number 008400607
      WASHER Genuine Lamborghini - New In stock
      # 014
      MPN: 008920603
      ELASTIC SUPPORT
      SUPPORTO ELASTICO
      Lamborghini PART 008920603 Genuine Lamborghini - New (to order)
      # 015
      MPN: 006033965
      RELAY
      RELAY ITALAMEC 454.10
      from £47.68
      from £47.68
      DIODE HOLDER Genuine Lamborghini - New (to order)
      # 015
      MPN: 006034961
      RELAY
      RELAY 87 BOSCH 0.332.01 4.1 12
      from £14.62
      from £14.62
      RELAY Genuine Lamborghini - New (to order)
      # 015
      MPN: 006036296
      RELAY
      RELAY ITALAMEC 160
      from £13.31
      from £13.31
      RELAY Genuine Lamborghini - New (to order)
      # 015
      MPN: 006036297
      RELAY
      RELAY ITALAMEC 064
      from £25.22
      from £25.22
      RELAY Genuine Lamborghini - New (to order)
      # 015
      MPN: 006311155
      RELAY
      RELAY 87B BOSCH 0.332.015.006
      from £36.37
      from £36.37
      RELAY Genuine Lamborghini - New In stock
      # 016
      MPN: WHT002959
      NUT
      DADO
      from £0.55
      from £0.55
      LOCK NUT NYLONSTOP Genuine Lamborghini - New In stock
      # 017
      MPN: 006135124
      RELAYS CASE
      SCATOLA RELAY
      from £719.39
      from £719.39
      CENTRAL RELAY BOX WIRING Genuine Lamborghini - New (to order)
      # 018
      MPN: 006035196
      H. LAMP LIFT. SWITCH
      INTERRUTTORE ALZAFARI
      from £214.74
      from £214.74
      HEADLIGHT ADJUSTMENTSWITCH BOX Genuine Lamborghini - New (to order)
      # 019
      MPN: 001626192
      FUSE
      FUSIBILEDA5AMP.
      from £0.52
      from £0.52
      BLADE FUSE 5A BEIGE Genuine Lamborghini - New In stock
      # 019
      MPN: 001626193
      FUSE
      FUSIBILE DA 15 AMP.
      from £0.51
      from £0.51
      BLADE FUSE 15A COBALT BLUE Genuine Lamborghini - New In stock
      # 019
      MPN: 001626697
      FUSE
      FUSIBILEDA10AMP.
      from £0.52
      from £0.52
      BLADE FUSE 10 A. RED Genuine Lamborghini - New In stock
      # 019
      MPN: 001629257
      FUSE
      FUSIBILE DA 7,5 AMP.
      from £0.98
      from £0.98
      7.5 A FUSE Genuine Lamborghini - New In stock
      # 019
      MPN: 001629259
      FUSE
      FUSIBILE DA 30 AMP.
      from £0.54
      from £0.54
      30 A BLADE FUSE Genuine Lamborghini - New (to order)
      # 020
      MPN: 005929915
      LOCKING E.C.U.
      CENTR. CHIUSURA CENTR.
      from £249.89
      from £249.89
      ECU Genuine Lamborghini - New (to order)
      # 021
      MPN: 006030677
      LOW TIRE E.C.U.
      CENTRALINA LOW TIRE
      from £425.34
      from £425.34
      TYRE LOW PRESSURE UNIT Genuine Lamborghini - New (to order)
      # 022
      MPN: 008200605
      NUT
      DADO
      from £1.84
      from £1.84
      M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
      # 023
      MPN: 006036296
      RELAY
      RELAY ITALAMEC 160
      from £13.31
      from £13.31
      RELAY Genuine Lamborghini - New (to order)
      # 024
      MPN: 008700667
      SCREW
      VITE
      from £0.78
      from £0.78
      SCREW Genuine Lamborghini - New (to order)
      # 025
      MPN: 006311155
      RELAY
      RELAY 87B BOSCH 0.332.015.006
      from £36.37
      from £36.37
      RELAY Genuine Lamborghini - New In stock
      # 026
      MPN: 006134958
      SUPPORT
      SUPPORTO
      from £35.98
      from £35.98
      CONDITIONER RELAY BRACKET Genuine Lamborghini - New (to order)
      # 027
      MPN: 005934376
      REMO. LOCKING CONT.
      COMANDO CHIUSURA CENTR.
      from £1,060.67
      from £1,060.67
      CENTRAL DOOR LOCK & REMOTE CON TROL KIT Genuine Lamborghini - New (to order)
