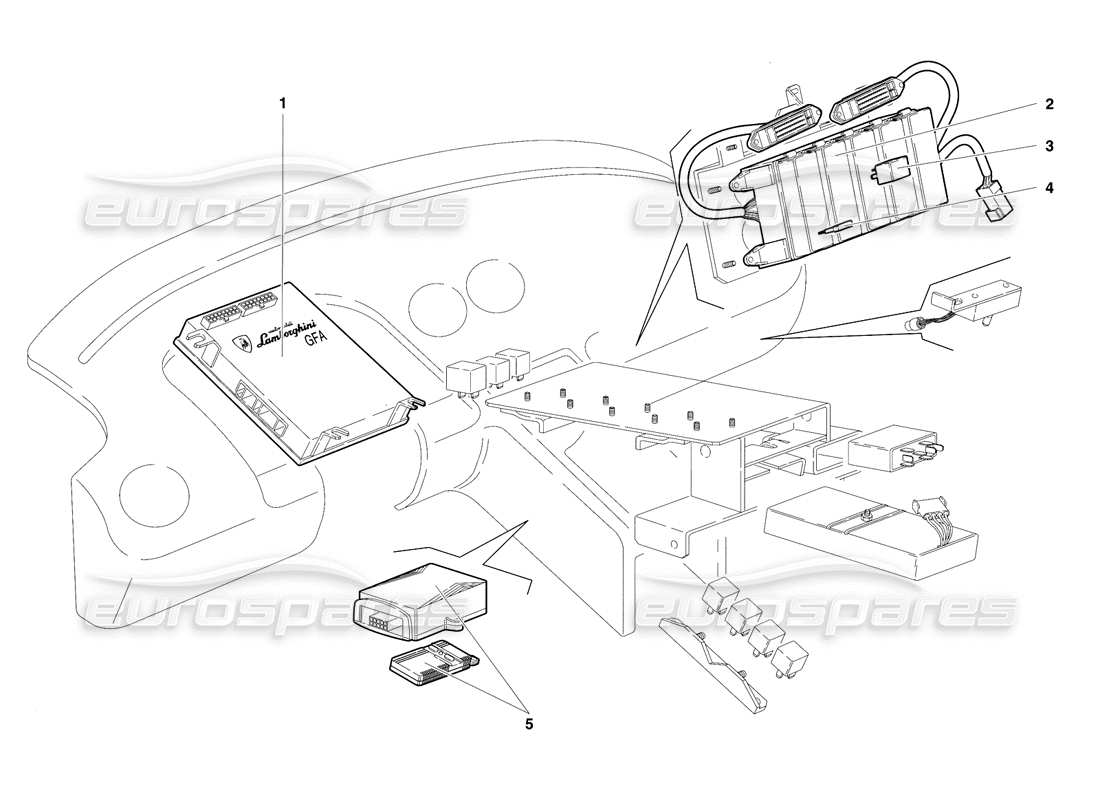

71.61.03.00 - Electrical System (Valid for USA - January 1995)

Lamborghini Diablo SE30 (1995) Electrical System (Valid for USA - January 1995) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 006034073
E.C.U. GFA
(Valid for USA – January 1995) CENTRALINA GFA
from £1,202.21
from £1,202.21
# 002
MPN: 006135136
RELAY CASE
(Valid for USA – January 1995) SCATOLA RELAY
from £687.39
from £687.39
# 003
MPN: 006033965
RELAY
(Valid for USA – January 1995) RELAY ITALAMEC 454.10
from £47.68
from £47.68
# 003
MPN: 006034961
RELAY
(Valid for USA – January 1995) RELAY BOSCH 0.332.014.112
from £14.62
from £14.62
# 003
MPN: 006036296
RELAY
(Valid for USA – January 1995) RELAY ITALAMEC 160
from £13.31
from £13.31
# 003
MPN: 006036297
RELAY
(Valid for USA – January 1995) RELAY ITALAMEC 064
from £25.22
from £25.22
# 003
MPN: 006311155
RELAY
(Valid for USA – January 1995) RELAY BOSCH 0.332.015.006
from £36.37
from £36.37
# 004
MPN: 001626192
FUSE
(Valid for USA – January 1995) FUSIBILE 5 AMP.
from £0.53
from £0.53
# 004
MPN: 001626193
FUSE
(Valid for USA – January 1995) FUSIBILE 15 AMP.
from £0.51
from £0.51
# 004
MPN: 001626697
FUSE
(Valid for USA – January 1995) FUSIBILE 10 AMP.
from £0.52
from £0.52
# 004
MPN: 001629257
FUSE
(Valid for USA – January 1995) FUSIBILE 7.5 AMP.
from £0.98
from £0.98
# 004
MPN: 001629259
FUSE
(Valid for USA – January 1995) FUSIBILE 30 AMP.
from £0.54
from £0.54
# 005
MPN: 005934377
REMO. LOCKING E.C.U.
(Valid for USA – January 1995) CENTRALINA CHIUSURA CENTR.
from £1,496.55
