71.9410.02.00 - Fuel Cap (Valid for USA - January 1995)

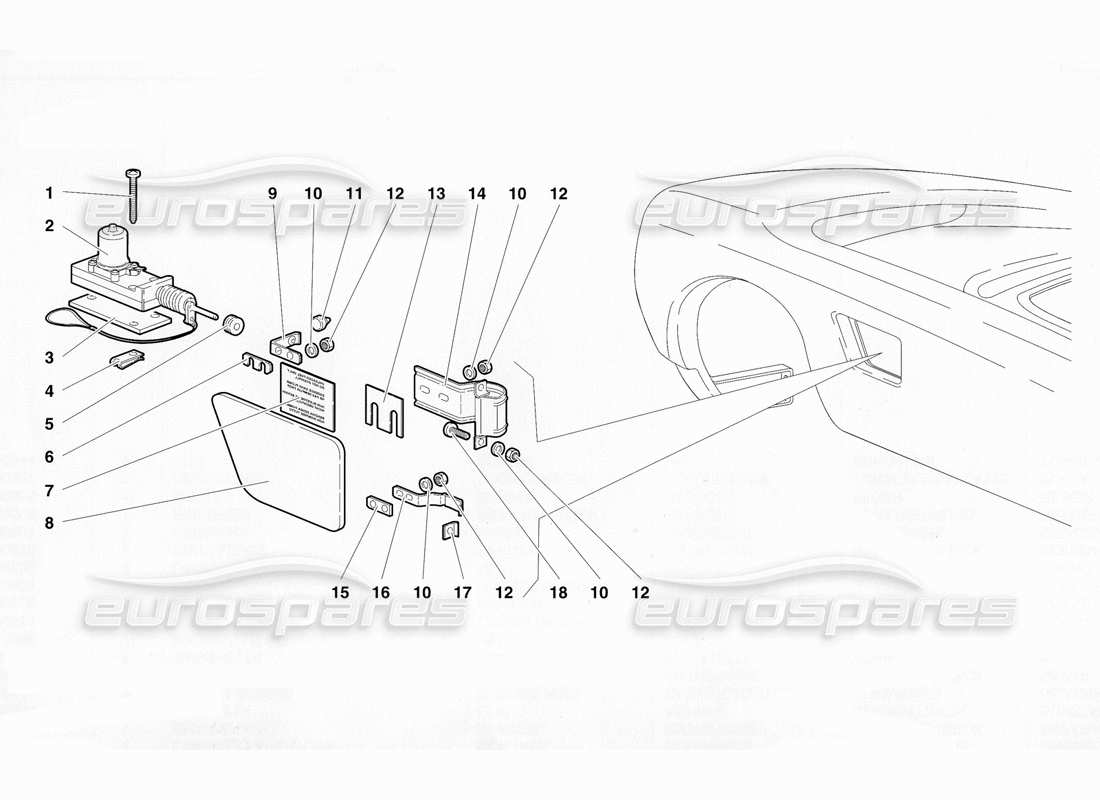

Lamborghini Diablo SE30 (1995) Fuel Cap (Valid for USA - January 1995) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008700450
SCREW
(Valid for USA – January 1995) VITE
from £0.53
from £0.53
# 002
MPN: 005930521
CONTROL
(Valid for USA – January 1995) COMANDO APERTURA
# 003
MPN: 005932766
SPACER
(Valid for USA – January 1995) DISTANZIALE
from £4.07
from £4.07
# 004
MPN: 008220505
CLIP
(Valid for USA - January 1995) MOLLETTA
Supersession
Supersession
# 005
MPN: 008610602
RUBBER RING
(Valid for USA – January 1995) ANELLO GOMMA
from £2.74
from £2.74
# 006
MPN: 009490512
SPACER
(Valid for USA – January 1995) DISTANZIALE
from £23.39
from £23.39
# 007
MPN: 009466106
PLATE
(Valid for USA – January 1995) TARGHETTA
from £6.43
from £6.43
# 008
MPN: 009410209
LID
(Valid for USA – January 1995) SPORTELLO BENZINA
from £480.31
from £480.31
# 009
MPN: 009490511
LOCK STRIKER
(Valid for USA – January 1995) RISCONTRO
from £92.45
from £92.45
# 010
MPN: WHT003040
WASHER
(Valid for USA – January 1995) RONDELLA
from £4.55
from £4.55
# 011
MPN: 009490509
RUBBER BUMPER
(Valid for USA – January 1995) PARACOLPI GOMMA
# 012
MPN: N0211963
NUT
(Valid for USA – January 1995) DADO
from £0.48
from £0.48
# 013
MPN: 009490510
SPACER
(Valid for USA – January 1995) DISTANZIALE
from £23.84
from £23.84
# 014
MPN: 009490501
HINGE
(Valid for USA – January 1995) CERNIERA
from £516.19
from £516.19
# 015
MPN: 009490508
REINFORCEMENT
(Valid for USA – January 1995) RINFORZO
from £2.87
from £2.87
# 016
MPN: 009490505
SPRING
(Valid for USA – January 1995) MOLLA
from £5.35
from £5.35
# 017
MPN: 009490507
LOCK STRIKER
(Valid for USA – January 1995) RISCONTRO
from £1.92
from £1.92
# 018
MPN: 008700544
SCREW
(Valid for USA – January 1995) VITE
from £1.09
from £1.09
