74.61.01.00 - Electrical System (Valid for RH D. Version - January 1995)

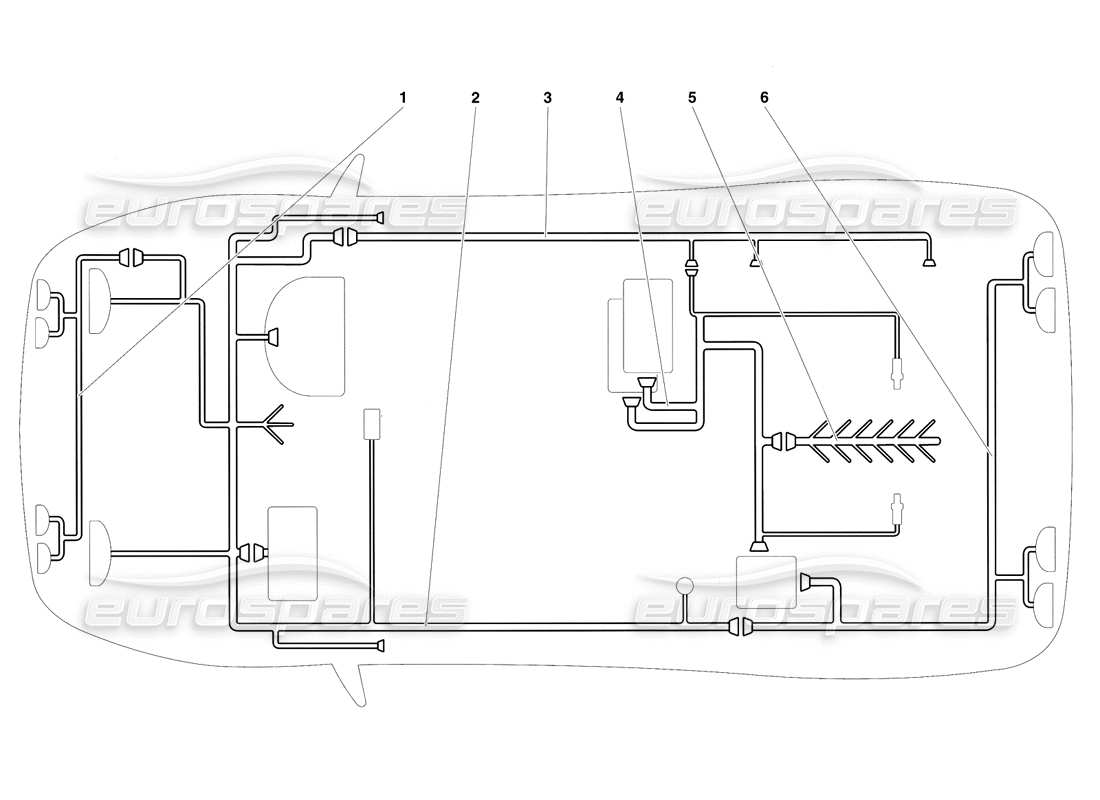

Lamborghini Diablo SE30 (1995) Electrical System (Valid for R.H.D. Version - January 1995) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 006135122
ELECT CABLE
(Valid for RH D. version – January 1995) CABLAGGIO PARAURTI ANT.
from £204.75
from £204.75
# 002
MPN: 006135623
ELECT CABLE
(Valid for RH D. version – January 1995) CABLAGGIO CENTRALE
from £2,645.81
from £2,645.81
# 003
MPN: 006135626
ELECT CABLE
(Valid for RH D. version – January 1995) CABLAGGIO POSTERIORE DX
from £455.67
from £455.67
# 004
MPN: 006135127
ELECT CABLE
(Valid for RH D. version – January 1995) CABLAGGIO CENTRALINE LI.E.
from £2,204.84
from £2,204.84
# 005
MPN: 006135539
ELECT CABLE
(Valid for RH D. version – January 1995) CABLAGGIO MOTORE
from £653.35
from £653.35
# 006
MPN: 006135627
ELECT CABLE
(Valid for RH D. version – January 1995) CABLAGGIO POSTERIORE
from £1,590.94
from £1,590.94
