lamborghini diablo se30 (1995) electrical system (valid for rh d. version - january 1995) parts diagram

74.61.03.00 - Electrical System (Valid for RH D. Version - January 1995)

Lamborghini Diablo SE30 (1995) Electrical System (Valid for R.H.D. Version - January 1995) Parts Diagram

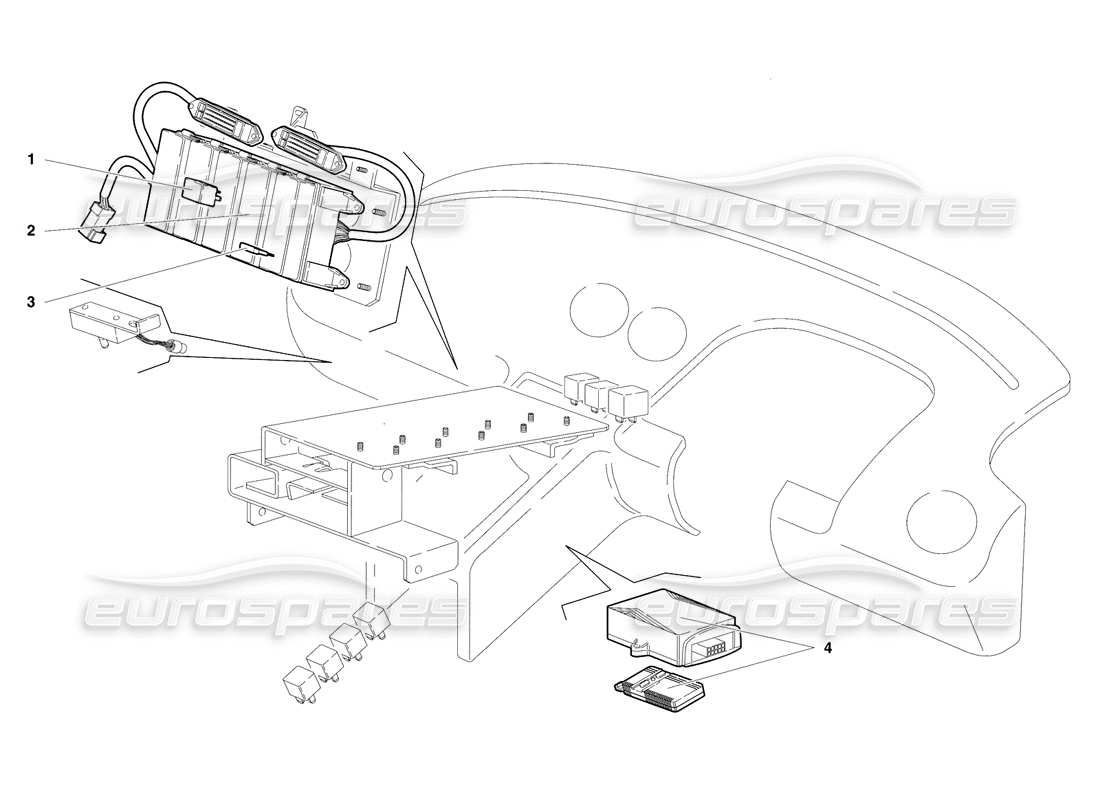

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 006034540
RELAY
(Valid for RH D. version – January 1995) RELAY ITALAMEC 331. 10
from £12.27
from £12.27
# 001
MPN: 006034961
RELAY
(Valid for RH D. version – January 1995) RELAY 87 BOSCH 0.332.014.1 12
from £14.62
from £14.62
# 001
MPN: 006036296
RELAY
(Valid for RH D. version – January 1995) RELAY ITALAMEC 160
from £13.31
from £13.31
# 001
MPN: 006036297
RELAY
(Valid for RH D. version – January 1995) RELAY ITALAMEC 064
from £25.22
from £25.22
# 001
MPN: 006311155
RELAY
(Valid for RH D. version – January 1995) RELAY 87B BOSCH 0.332.015.006
from £36.37
from £36.37
# 002
MPN: 006135625
RELAY HOUSING
(Valid for RH D. version – January 1995) SCATOLA RELAY POST.
from £1,673.09
from £1,673.09
# 003
MPN: 001626192
FUSE
(Valid for RH D. version – January 1995) FUSIBILE5AMP.
from £0.52
from £0.52
# 003
MPN: 001626193
FUSE
(Valid for RH D. version – January 1995) FUSIBILE15AMP.
from £0.52
from £0.52
# 003
MPN: 001626697
FUSE
(Valid for RH D. version – January 1995) FUSIBILE10AMP.
from £0.52
from £0.52
# 003
MPN: 001629257
FUSE
(Valid for RH D. version – January 1995) FUSIBILE7.5AMP.
from £0.98
from £0.98
# 003
MPN: 001629259
FUSE
(Valid for RH D. version – January 1995) FUSIBILE30AMP.
from £0.54
from £0.54
# 004
MPN: 005934378
REMO. LOCKING E.C.U.
(Valid for RH D. version – January 1995) CENTRALINA CHIUSURA CENTR.
Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
