9421.01.00 - Doors

Lamborghini Diablo SE30 (1995) Doors Parts Diagram

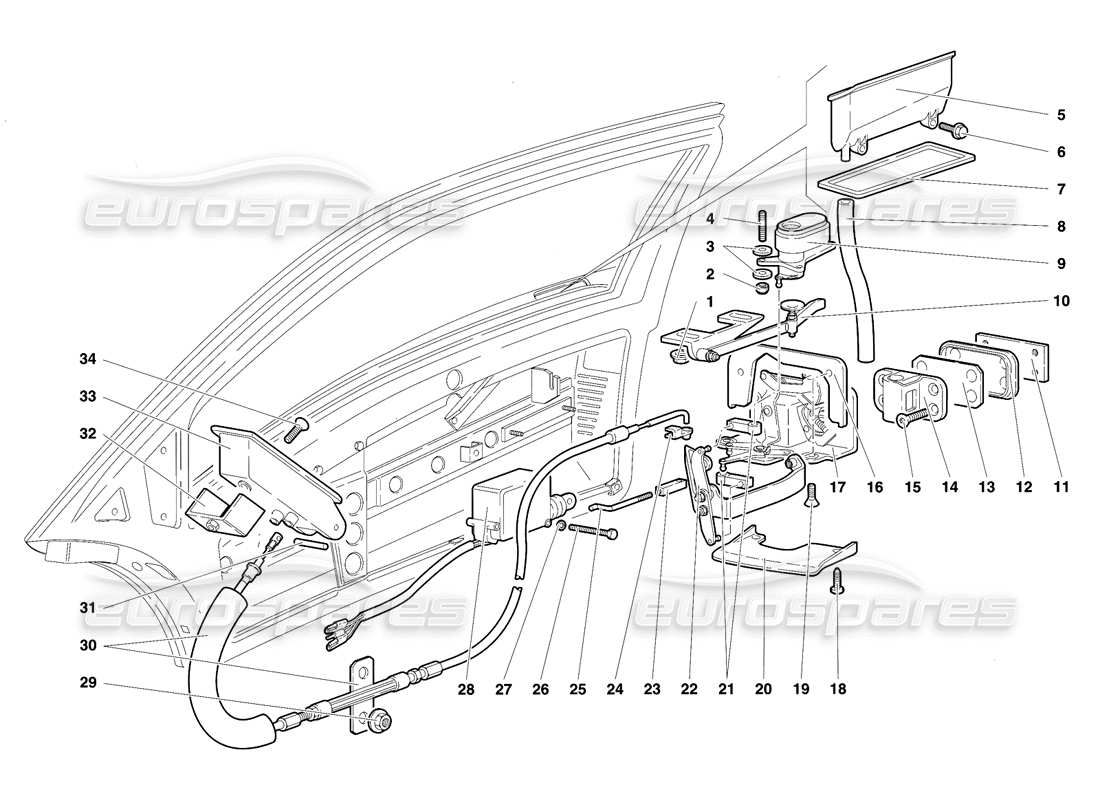

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
          #
          Part number
          Description
          Key
          Price
          # 001
          MPN: 008200614
          NUT
          DADO
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 002
          MPN: WHT002959
          NUT
          DADO
          from £0.53
          from £0.53
          LOCK NUT NYLONSTOP Genuine Lamborghini - New In stock
          # 003
          MPN: 008400401
          WASHER
          RONDELLA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 004
          MPN: 008300403
          STUD
          PRIGIONIERO
          from £16.59
          from £16.59
          SPECIAL STUD M4X17 FRPM 4-19 Genuine Lamborghini - New (to order)
          # 005
          MPN: 009421200
          RIGHT EXT. HANDLE
          MANIGLIA ESTERNA DX
          from £193.69
          from £193.69
          RIGHT DOOR EXTERNAL HANDLE Genuine Lamborghini - New (to order)
          # 005
          MPN: 009421201
          LEFT EXT. HANDLE
          MANIGLIA ESTERNA SX
          from £202.77
          from £202.77
          LEFT DOOR EXTERNAL HANDLE Genuine Lamborghini - New (to order)
          # 006
          MPN: N10718801
          SCREW
          VITE
          from £0.59
          from £0.59
          HEXAGON BOLT M6 X 16 Genuine Lamborghini - New In stock
          bolt, hex. hd. with shoulder (N 10718801) Genuine Porsche Part - New In stock
          # 007
          MPN: 009421712
          RIGHT HANDLE GASK.
          GUARNIZIONE X MANIGLIA DX
          from £3.45
          from £3.45
          DOOR HANDLE GASKET Genuine Lamborghini - New (to order)
          # 007
          MPN: 009421713
          LEFT HANDLE GASKET
          GUARNIZIONE X MANIGLIA SX
          from £8.34
          from £8.34
          DOOR HANDLE GASKET Genuine Lamborghini - New (to order)
          # 008
          MPN: 009421245
          FLEX. HOSE
          TUBO FLESSIBILE
          from £11.28
          from £11.28
          COOLANT DRAIN TUBE Genuine Lamborghini - New (to order)
          # 009
          MPN: 0072005036
          LH & RH DOOR BUTTONS
          from £282.74
          from £282.74
          DOOR BUTTONS KIT (RH+LH) Genuine Lamborghini - New In stock
          # 009
          MPN: 009421227/a
          RIGHT DOOR BUTTON
          use : 0072005036 (LH & RH buttons)
          RIGHT DOOR BUTTON Genuine Lamborghini - New (to order)
          # 009
          MPN: 009421228/a
          LEFT DOOR BUTTON
          use : 0072005036 (LH & RH buttons)
          LEFT DOOR BUTTON Genuine Lamborghini - New (to order)
          # 010
          MPN: 009421255
          RIGHT IDLE LEVER
          RINVIO A LEVA DX
          from £319.21
          from £319.21
          RH DOOR LOCK LINKAGE Genuine Lamborghini - New (to order)
          # 010
          MPN: 009421256
          LEFT IDLE LEVER
          RINVIO A LEVA SX
          from £319.21
          from £319.21
          LH DOOR LOCK LINKAGE Genuine Lamborghini - New (to order)
          # 011
          MPN: 007021253
          PLATE
          PIASTRA
          from £18.62
          from £18.62
          DOOR LOCK STRIKER FIX.PLATE Genuine Lamborghini - New (to order)
          # 012
          MPN: 410837899
          PLATE
          from £9.34
          from £9.34
          DOOR HEATER TRIM Genuine Lamborghini - New (to order)
          # 013
          MPN: 410837963
          SHIM
          SPESSORE Dl REGISTRO 0,5 MM
          from £9.81
          from £9.81
          SHIM UNDER IN.LOCK HEAT. Genuine Lamborghini - New (to order)
          # 013
          MPN: 410837964
          SHIM
          SPESSORE Dl REGISTRO 1 MM
          from £9.56
          from £9.56
          SHIM UNDER IN.LOCK HEAT. Genuine Lamborghini - New (to order)
          # 014
          MPN: 410831407A
          LEFT LOCK STRIKER
          from £163.12
          from £163.12
          HINGE HALF LEFT Genuine Lamborghini - New (to order)
          HINGE HALF LEFT Genuine Lamborghini - Used In stock
          # 014
          MPN: 410831408A
          RIGHT LOCK STRIKER
          from £287.71
          from £287.71
          HINGE HALF RIGHT Genuine Lamborghini - New (to order)
          HINGE HALF RIGHT Genuine Lamborghini - Used In stock
          # 015
          MPN: 008700610
          SCREW
          VITE
          from £0.51
          from £0.51
          SCREW 6X22 UNI 5933/8G/ZD Genuine Lamborghini - New In stock
          # 016
          MPN: 009421272
          RIGHT LOCK GASKET
          RIGHT LOCK GASKET
          RIGHT LOCK GASKET Genuine Lamborghini - New (to order)
          # 016
          MPN: 009421273
          LEFT LOCK GASKET
          GUARNIZIONE SERRATURA SX
          RIGHT GASKET Genuine Lamborghini - New (to order)
          # 017
          MPN: 410837015
          Left lock
          Left lock
          from £136.50
          from £136.50
          LEFT DOOR LOCK Genuine Lamborghini - New (to order)
          LEFT DOOR LOCK Genuine Lamborghini - Used In stock
          # 017
          MPN: 410837016
          Right lock
          Right lock
          from £136.50
          from £136.50
          RIGHT DOOR LOCK Genuine Lamborghini - New (to order)
          RIGHT DOOR LOCK Genuine Lamborghini - Used In stock
          # 018
          MPN: 008700332
          SCREW
          VITE
          from £0.53
          from £0.53
          PARKER SCREW 2.9 X 13 Genuine Lamborghini - New (to order)
          # 019
          MPN: 008700613
          SCREW
          VITE
          from £0.51
          from £0.51
          SCREW M6X14 UNI 5933/8G/ZB Genuine Lamborghini - New In stock
          # 020
          MPN: 009421236
          RIGHT SHIELD
          PROTEZIONE DX
          from £121.06
          from £121.06
          RH DOOR LOCK COVER Genuine Lamborghini - New (to order)
          # 020
          MPN: 009421237
          LEFT SHIELD
          PROTEZIONE SX
          from £154.35
          from £154.35
          LH DOOR LOCK COVER Genuine Lamborghini - New (to order)
          # 021
          MPN: 009421214
          COUPLING
          TESTINA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 022
          MPN: 009421253
          RIGHT IDLE LEVER
          RINVIO A LEVA DX
          from £319.21
          from £319.21
          RH DOOR LOCK LINKAGE Genuine Lamborghini - New (to order)
          # 022
          MPN: 009421254
          LEFT IDLE LEVER
          RINVIO A LEVA SX
          from £319.21
          from £319.21
          LH DOOR LOCK LINKAGE Genuine Lamborghini - New (to order)
          # 023
          MPN: 007021016
          PAWL
          NOTTOLINO
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 024
          MPN: 009421251
          CLIP
          MOLLETTA
          PAWL Genuine Lamborghini - New (to order)
          # 025
          MPN: 009421252
          TIE ROD
          TIRANTE
          from £15.80
          from £15.80
          CENTRAL DOOR LOCK TIE ROD Genuine Lamborghini - New (to order)
          # 026
          MPN: 008100404
          SCREW
          VITE
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 027
          MPN: 008400401
          WASHER
          RONDELLA
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 028
          MPN: 0R1320007
          LHS DOOR ACTUATOR
          from £555.96
          from £555.96
          KIT ATTUATORE PORTA SINISTRA Genuine Lamborghini - New (to order)
          # 028
          MPN: 0R1320008
          RHS DOOR ACTUATOR
          from £262.86
          from £262.86
          RHS DOOR ACTUATOR Genuine Lamborghini - New (to order)
          # 029
          MPN: 008200614
          NUT
          DADO
          Supersession
          Supersession
          Genuine Lamborghini (no longer available to order)
          # 030
          MPN: 009421032
          DOOR OPENING CABLE
          DOOR OPENING CABLE
          from £47.65
          from £47.65
          RH/LH DOOR LOCK WIRE Genuine Lamborghini - New (to order)
          # 031
          MPN: 008850304
          PIN
          SPINA
          from £1.36
          from £1.36
          PIN 3 H8 L=25 UNI 177 Genuine Lamborghini - New In stock
          # 032
          MPN: 009421274
          RETAINER
          CAVALLOTTO
          from £40.25
          from £40.25
          INTERNAL DOOR HANDLEWIRE Genuine Lamborghini - New In stock
          # 033
          MPN: 410823537
          INNER HANDLE
          from £766.08
          from £766.08
          INTERNAL DOOR HANDLE Genuine Lamborghini - New In stock
