9429.01.00 - Rear Hood and Wing

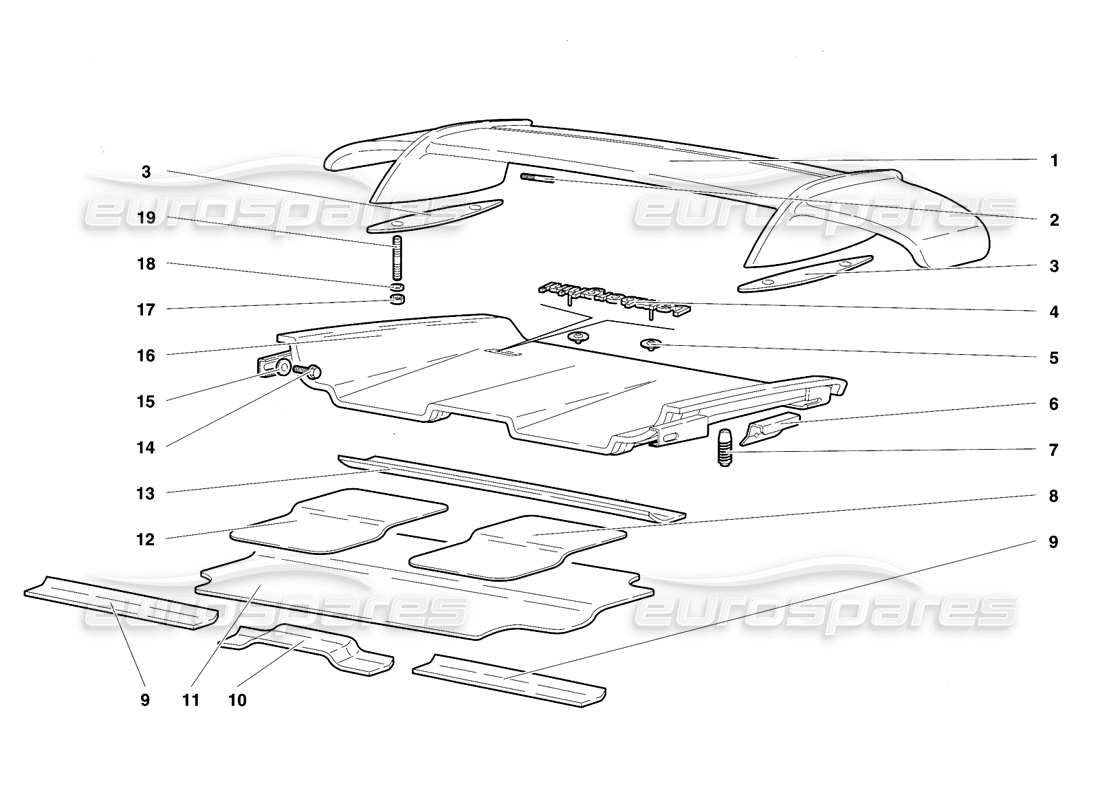

Lamborghini Diablo SE30 (1995) Rear Hood and Wing Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 009490007
REAR WING
COMPLETE AILER
Supersession
Supersession
# 001
MPN: 009490007VS
PAINTED REAR WING
ALETTONE VERNICIATO
# 002
MPN: 009490017
THREADED PIN
THREADED PIN
from £28.66
from £28.66
# 003
MPN: 009490010
GASKET
Guarnizione
# 004
MPN: 006128566
ORNAMENT
SCRITTA Lamborghini
from £114.42
from £114.42
# 005
MPN: 008410305
CLIP
MOLLETTA
from £0.67
from £0.67
# 006
MPN: 009429112
CHANNEL
PROFILATO
from £32.84
from £32.84
# 007
MPN: 009460214
RUBBER PLUG
RUBBER CAP
from £4.88
from £4.88
# 008
MPN: 009455243
LEFT LINING
ISOLAMENTO SX
from £46.61
from £46.61
# 009
MPN: 009429109
CHANNEL
PROFILATO
from £37.48
from £37.48
# 010
MPN: 009429108
CHANNEL
PROFILATO
from £52.57
from £52.57
# 011
MPN: 009455244
LINING
ISOLAMENTO
from £379.58
from £379.58
# 012
MPN: 009455242
RIGHT LINING
ISOLAMENTO DX
from £46.61
from £46.61
# 013
MPN: 009429111
CHANNEL
PROFILATO
from £18.83
from £18.83
# 014
MPN: N10718801
SCREW
VITE
from £0.59
from £0.59
# 015
MPN: WHT003093
WASHER
RONDELLA
from £0.53
from £0.53
# 016
MPN: 009429001
REAR BONNET
COFANO POSTERIORE
# 017
MPN: 008200606
NUT
Supersession
Supersession
# 018
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 019
MPN: 008300610
STUD
PRIGIONIERO
from £15.47
from £15.47
