lamborghini diablo sv (1997) left cylinder head parts diagram

11.02.00 - left cylinder head

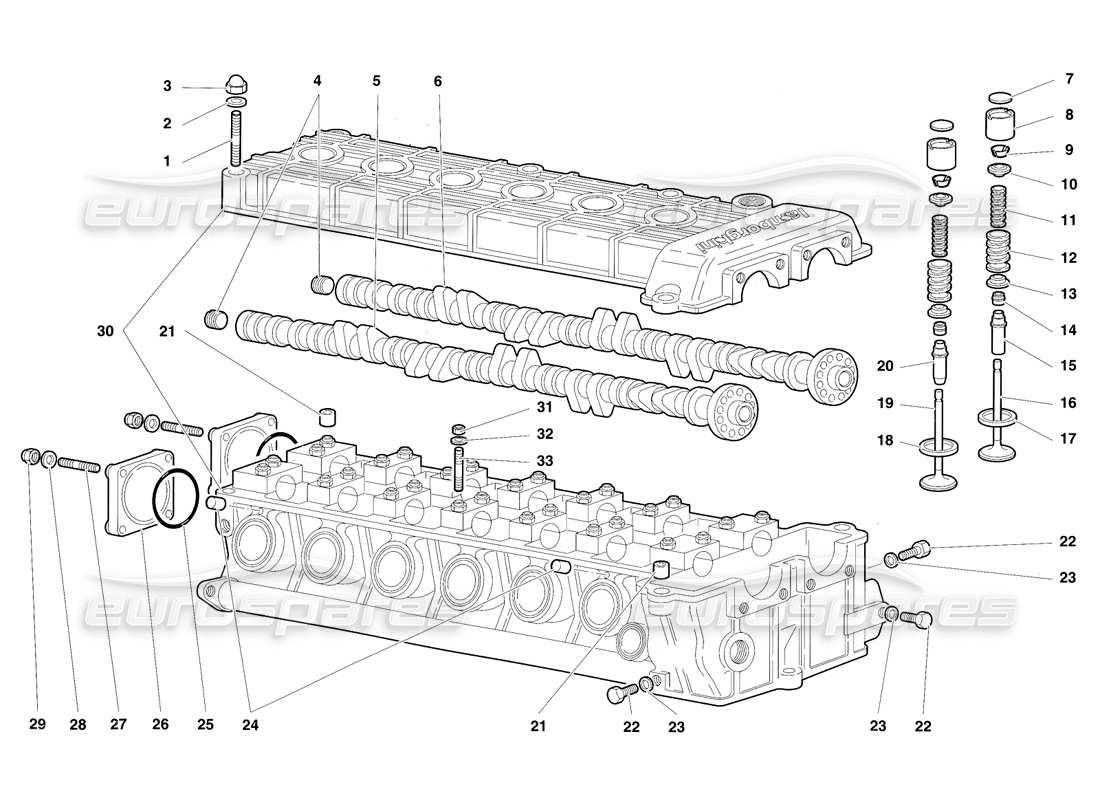

Lamborghini Diablo SV (1997) Left Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Key
      Price
      # 001
      MPN: 008300649
      STUD
      PRIGIONIERO
      from £5.94
      from £5.94
      SPECIAL STUD M6X47 Genuine Lamborghini - New (to order)
      # 002
      MPN: 008410602
      WASHER
      RONDELLA
      from £28.85
      from £28.85
      WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
      # 003
      MPN: 008200605
      NUT
      DADO
      from £1.89
      from £1.89
      M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
      # 004
      MPN: 008931409
      PLUG
      TAPPO
      from £7.76
      from £7.76
      CASTING PLUG Genuine Lamborghini - New (to order)
      # 005
      MPN: 001232710
      camshaft
      ASSE A CAMME ASP. TESTA SX
      from £1,044.68
      from £1,044.68
      LH INTAKE CAMSHAFT Genuine Lamborghini - New (to order)
      # 006
      MPN: 001232711
      camshaft
      ASSE A CAMME SCARICO TESTA SX
      from £1,106.86
      from £1,106.86
      LH EXHAUST CAMSHAFT Genuine Lamborghini - New (to order)
      # 007
      MPN: 001220877
      SHIM
      SPESSORE Dl REGISTRO 3.25 MM
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 007
      MPN: 001220878
      SHIM
      SPESSORE Dl REGISTRO 3.30 MM
      SHIMS Genuine Lamborghini - New (to order)
      # 007
      MPN: 001220879
      SHIM
      SPESSORE Dl REGISTRO 3.35 MM
      SHIMS Genuine Lamborghini - New (to order)
      # 007
      MPN: 001220880
      SHIM
      SPESSORE Dl REGISTRO 3.40 MM
      SHIMS Genuine Lamborghini - New (to order)
      # 007
      MPN: 001220891
      SHIM
      SPESSORE Dl REGISTRO 3.95 MM
      SHIMS Genuine Lamborghini - New (to order)
      # 007
      MPN: 001220892
      VALVE SHIMS
      4.00 MM
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 007
      MPN: 001220895
      SHIM
      SPESSORE Dl REGISTRO 4.15 MM
      SHIMS Genuine Lamborghini - New (to order)
      # 007
      MPN: 001220896
      SHIM
      SPESSORE Dl REGISTRO 4.20 MM
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 007
      MPN: 001220897
      SHIM
      SPESSORE Dl REGISTRO 4.25 MM
      SHIMS Genuine Lamborghini - New (to order)
      # 007
      MPN: 001220898
      SHIM
      SPESSORE Dl REGISTRO 4.30 MM
      SHIMS Genuine Lamborghini - New (to order)
      # 007
      MPN: 001220899
      SHIM
      SPESSORE Dl REGISTRO 4.35 MM
      SHIMS Genuine Lamborghini - New (to order)
      # 007
      MPN: 001220900
      SHIM
      SPESSORE Dl REGISTRO 4.40 MM
      SHIMS Genuine Lamborghini - New (to order)
      # 007
      MPN: 001220901
      SHIM
      SPESSORE Dl REGISTRO
      SHIMS Genuine Lamborghini - New (to order)
      # 007
      MPN: 001220902
      SHIM
      SPESSORE Dl REGISTRO 4.50 MM
      SHIMS Genuine Lamborghini - New (to order)
      # 007
      MPN: 001220903
      SHIM
      SPESSORE Dl REGISTRO 4.55 MM
      SHIMS Genuine Lamborghini - New (to order)
      # 007
      MPN: 001220904
      SHIM
      SPESSORE Dl REGISTRO 4.60 MM
      SHIMS Genuine Lamborghini - New (to order)
      # 007
      MPN: 001220905
      SHIM
      SPESSORE Dl REGISTRO 4.65 MM
      SHIMS Genuine Lamborghini - New (to order)
      # 007
      MPN: 001220906
      SHIM
      SPESSORE Dl REGISTRO 4.70 MM
      SHIMS Genuine Lamborghini - New (to order)
      # 007
      MPN: 07M109320D
      SHIM
      SPESSORE Dl REGISTRO 3.45 MM
      from £6.83
      from £6.83
      VALVE ADJUSTMENT SHIM 3.45 MM Genuine Lamborghini - New (to order)
      # 007
      MPN: 07M109320E
      SHIM
      SPESSORE Dl REGISTRO 3.50 MM
      from £33.81
      from £33.81
      VALVE ADJUSTMENT SHIM 3.50 MM Genuine Lamborghini - New (to order)
      # 007
      MPN: 07M109320F
      SHIM
      SPESSORE Dl REGISTRO 3.55 MM
      from £6.83
      from £6.83
      VALVE ADJUSTMENT SHIM 3.55 MM Genuine Lamborghini - New (to order)
      # 007
      MPN: 07M109320G
      SHIM
      SPESSORE Dl REGISTRO 3.60 MM
      from £33.81
      from £33.81
      VALVE ADJUSTMENT SHIM 3.60 MM Genuine Lamborghini - New (to order)
      # 007
      MPN: 07M109320H
      SHIM 3.65 MM
      from £35.11
      from £35.11
      VALVE ADJUSTMENT SHIM 3.65 MM Genuine Lamborghini - New In stock
      # 007
      MPN: 07M109320J
      SHIM
      SPESSORE Dl REGISTRO 3.70 MM
      from £33.81
      from £33.81
      VALVE ADJUSTMENT SHIM 3.70 MM Genuine Lamborghini - New (to order)
      # 007
      MPN: 07M109320K
      SHIM
      SPESSORE Dl REGISTRO 3.75 MM
      from £33.81
      from £33.81
      VALVE ADJUSTMENT SHIM 3.75 MM Genuine Lamborghini - New (to order)
      # 007
      MPN: 07M109320L
      SHIM
      SPESSORE Dl REGISTRO 3.80 MM
      from £33.81
      from £33.81
      VALVE ADJUSTMENT SHIM 3.80 MM Genuine Lamborghini - New (to order)
      # 007
      MPN: 07M109320M
      SHIM
      SPESSORE Dl REGISTRO 3.85 MM
      from £6.83
      from £6.83
      VALVE ADJUSTMENT SHIM 3.85 MM Genuine Lamborghini - New (to order)
      # 007
      MPN: 07M109320N
      SHIM
      SPESSORE Dl REGISTRO 3.90 MM
      from £33.81
      from £33.81
      VALVE ADJUSTMENT SHIM 3.90 MM Genuine Lamborghini - New (to order)
      # 007
      MPN: 07M109320R
      SHIM 4.05 MM
      from £6.83
      from £6.83
      VALVE ADJUSTMENT SHIM 4.05 MM Genuine Lamborghini - New (to order)
      # 007
      MPN: 07M109320S
      SHIM
      SPESSORE Dl REGISTRO 4.05 MM
      from £33.81
      from £33.81
      VALVE ADJUSTMENT SHIM 4.10 MM Genuine Lamborghini - New (to order)
      # 008
      MPN: 07M109309
      TAPPET
      PUNTERIA
      from £22.27
      from £22.27
      VALVE BOWL Genuine Lamborghini - New (to order)
      # 009
      MPN: 001220843
      TAPPET LOCK CONE
      (WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n° 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) SEMICONO PUNTERIE (EATON)
      from £4.81
      from £4.81
      VALVE SEAL COTTER ONPLATE Genuine Lamborghini - New (to order)
      # 009
      MPN: 001235955
      TAPPET LOCK CONE
      (WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n° 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) SEMICONO PUNTERIE (TRW)
      VALVE LOCK CONE Genuine Lamborghini - New (to order)
      # 010
      MPN: 07M109641
      TAPPET PLATE
      from £11.59
      from £11.59
      SPRING UPPER WASHER Genuine Lamborghini - New (to order)
      # 011
      MPN: 07M109633A
      SPRING
      MOLLA INTERNA
      from £3.77
      from £3.77
      INNER VALVE SPRING Genuine Lamborghini - New (to order)
      # 012
      MPN: 07M109623A
      SPRING
      MOLLA ESTERNA
      from £11.59
      from £11.59
      VALVE SPRING Genuine Lamborghini - New (to order)
      # 013
      MPN: 001220993
      TAPPET PLATE
      PIATTELLO PUNTERIA INFERIORE
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 014
      MPN: 07M109675
      SEAL
      from £9.56
      from £9.56
      INTAKE VALVE GUIDE RUBBER PAD Genuine Lamborghini - New (to order)
      # 015
      MPN: 001229718
      VALVE GUIDE
      GUIDA VALVOLA SCARICO
      from £90.79
      from £90.79
      EXHAUST VALVE GUIDE Genuine Lamborghini - New (to order)
      # 016
      MPN: 001224997
      EXHAUST VALVE
      (WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n° 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) VALVOLA SCARICO (EATON)
      from £349.89
      from £349.89
      EXHAUST VALVE Genuine Lamborghini - New (to order)
      # 016
      MPN: 07M109611
      EXHAUST VALVE
      (WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n° 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) VALVOLA SCARICO (TRW)
      from £63.21
      from £63.21
      EXHAUST VALVE Genuine Lamborghini - New In stock
      # 017
      MPN: 001225001
      VALVE SEAT
      SEDE VALVOLA SCARICO
      Lamborghini PART 001225001 Genuine Lamborghini - New (to order)
      # 018
      MPN: 001225000
      VALVE SEAT
      SEDE VALVOLA ASPIRAZIONE
      Lamborghini PART 001225000 Genuine Lamborghini - New (to order)
      # 019
      MPN: 001224996
      VALVE
      (WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n° 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) VALVOLA ASPIRAZIONE (EATON)
      from £35.37
      from £35.37
      INTAKE VALVE Genuine Lamborghini - New (to order)
      # 019
      MPN: 07M109601
      VALVE
      (WARNING!!! EATON valves must be assembled exclusively on EATON tappet lock cones (pin 001220843) until engine n° 1620 included and TRW valves exclusively on tappet lock cones (p/n 001235955) from engine no. 1621, included.) VALVOLA ASPIRAZIONE (TRW)
      from £44.02
      from £44.02
      INTAKE VALVE Genuine Lamborghini - New (to order)
      # 020
      MPN: 001229717
      VALVE GUIDE
      GUIDA VALVOLA ASPIRAZIONE
      from £90.79
      from £90.79
      INTAKE VALVE GUIDE Genuine Lamborghini - New (to order)
      # 021
      MPN: 008800604
      BUSHING
      BOCCOLA
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 022
      MPN: 008100631
      SCREW
      VITE
      from £0.53
      from £0.53
      SCREW M6X8 UNI 5739 8G Genuine Lamborghini - New (to order)
      # 023
      MPN: WHT003041
      WASHER
      RONDELLA
      from £0.53
      from £0.53
      This part replaces part number 008400609 - and 1 more. Click to view details
      SOFT COPPER WASHER 6.4X12X1.5 Genuine Lamborghini - New In stock
      # 024
      MPN: 001122089
      DOWEL
      GRANO
      from £10.57
      from £10.57
      MANIFOLD CENTRING DOWEL Genuine Lamborghini - New (to order)
      # 025
      MPN: 008606205
      SEAL
      ANELLO TENUTA
      from £2.69
      from £2.69
      This part replaces part number 008606201
      O-RING Genuine Lamborghini - New (to order)
      # 026
      MPN: 001114502
      COVER
      COPERCHIO
      from £118.98
      from £118.98
      HEAD CLOSING COVER Genuine Lamborghini - New (to order)
      # 027
      MPN: 008300601
      STUD
      PRIGIONIERO
      from £5.19
      from £5.19
      STUD M6X20 UNI 5911/8G/ZD Genuine Lamborghini - New (to order)
      # 028
      MPN: 008400620
      WASHER
      RONDELLA
      from £0.95
      from £0.95
      WASHER 6.5 UNI 1734/5S/B Genuine Lamborghini - New (to order)
      # 029
      MPN: 008200605
      NUT
      DADO
      from £1.74
      from £1.74
      M6 NCM 70 URAMA SIMMON NUT Genuine Lamborghini - New In stock
      # 030
      MPN: 463400450
      CYLINDER HEAD
      TESTA SINISTRA LAVORATA
      Lamborghini PART 463400450 Genuine Lamborghini - New (to order)
      # 031
      MPN: 008200604
      NUT
      DADO
      Supersession
      Supersession
      Genuine Lamborghini (no longer available to order)
      # 032
      MPN: 008410602
      WASHER
      RONDELLA
      from £26.39
      from £26.39
      WASHER 12X6.4X0.5 DIN 137/B Genuine Lamborghini - New In stock
      # 033
      MPN: 008300640
      STUD
      PRIGIONIERO
      from £10.66
      from £10.66
      SPECIAL STUD M6X34 Genuine Lamborghini - New (to order)
