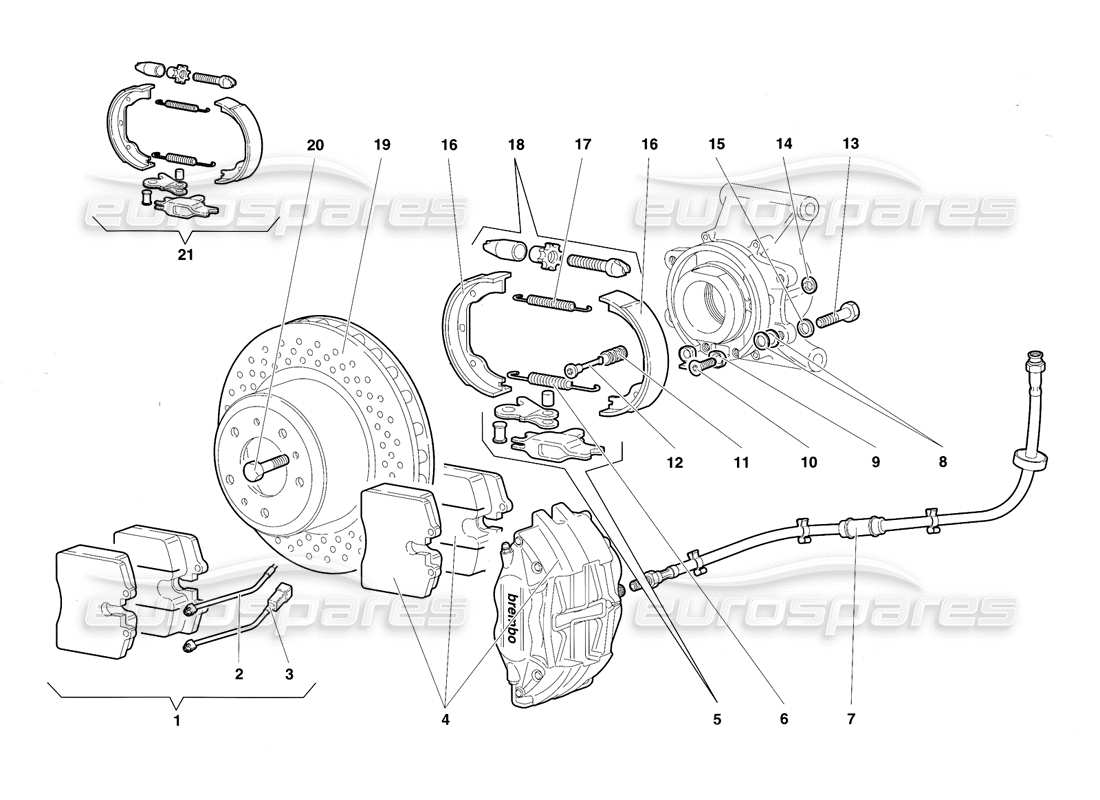

32.01.00 - Rear Brakes

Lamborghini Diablo SV (1997) Rear Brakes Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 003236088
REAR BRAKE PADS KIT
from £413.31
from £413.31
This part replaces part number 003234508 - and 1 more. Click to view details
# 001
MPN: 003236089
BRAKE PADS KIT
KIT PASTIGLIE FRENO GALFER
Supersession
Supersession
This part replaces part number 003234514
# 002
MPN: 003135643
ELECT CABLE
CAVO ELETTRICO
from £7.10
from £7.10
# 003
MPN: 003135644
ELECT CABLE
CAVO ELETTRICO
from £222.21
from £222.21
# 004
MPN: 003233612
RIGHT BRAK. CALIPER
PINZA FRENI DX (GALFER)
from £1,272.69
from £1,272.69
# 004
MPN: 3233611
LEFT BRAKE CALIPER
PINZA FRENI SX (GALFER)
# 005
MPN: 003334932
IDLE LEVER
LEVERAGGIO
from £85.41
from £85.41
# 006
MPN: 003334933
SPRING
MOLLA
from £25.22
from £25.22
# 007
MPN: 003229882
PIPE
Tubo
from £104.89
from £104.89
# 008
MPN: 003230720
SHIM
SPESSORE Dl REGISTROO,1 MM
from £4.19
from £4.19
# 008
MPN: 003230721
SHIM
SPESSORE Dl REGISTRO 0,2 MM
from £0.54
from £0.54
# 008
MPN: 003230724
SHIM
SPESSORE Dl REGISTRO 0,5 MM
from £0.54
from £0.54
# 008
MPN: 003230727
SHIM
SPESSORE Dl REGISTRO 1 MM
from £2.24
from £2.24
# 009
MPN: 003332388
SUPPORT
SUPPORTO
from £131.83
from £131.83
# 010
MPN: 008701023
SCREW
VITE
from £0.53
from £0.53
# 011
MPN: 003332390
SPRING
MOLLA
from £12.61
from £12.61
# 012
MPN: 003332389
PIN
PERNO
from £32.52
from £32.52
# 013
MPN: 003132195
SCREW
VITE
from £19.41
from £19.41
# 014
MPN: 003332391
CLIP
FERMAGLIO
from £5.73
from £5.73
# 015
MPN: 008401306
WASHER
RONDELLA
from £1.49
from £1.49

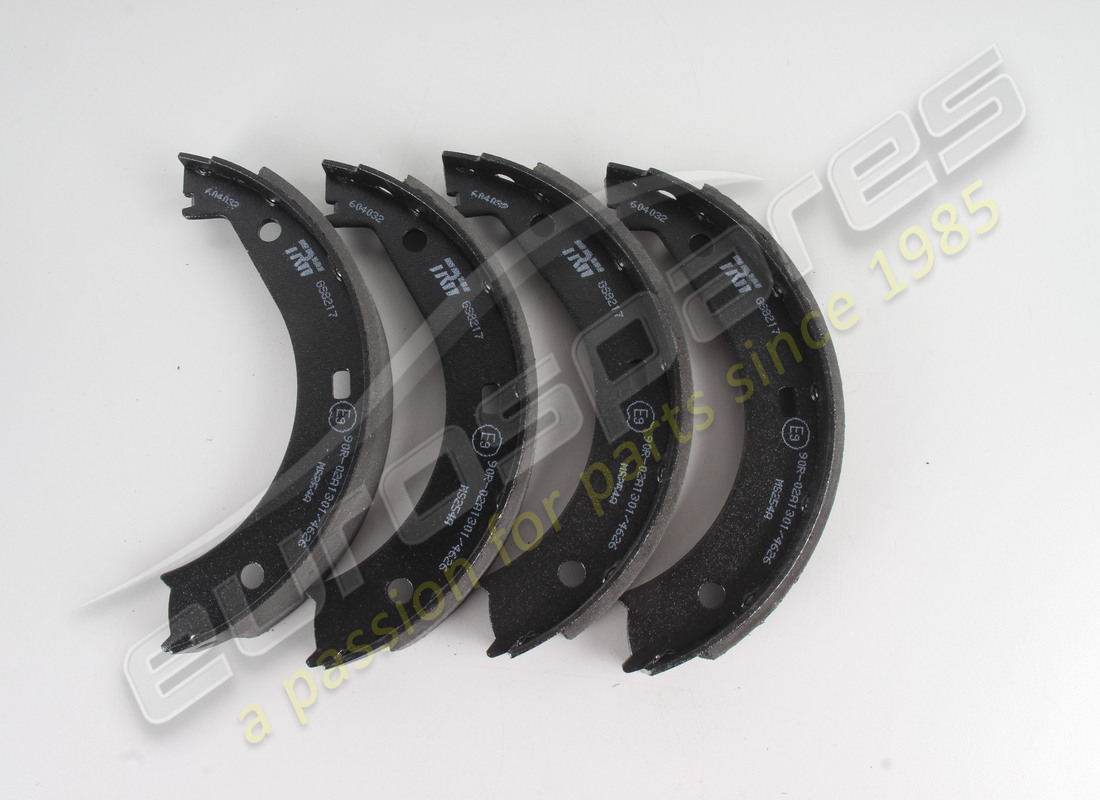

# 016
MPN: 003334931
BRAKE SHOE
GANASCIA FRENI
from £131.25
from £131.25
# 017
MPN: 003334934
SPRING
MOLLA
from £25.22
from £25.22
# 018
MPN: 003334935
ADJ/SCREW
VITE REGOLAZIONE
from £83.74
from £83.74
# 019
MPN: 003237350
REAR BRAKE DISC
DISCO FRENO POST.
from £883.00
from £883.00
# 020
MPN: N01029315
SCREW
VITE
from £0.80
from £0.80
# 021
MPN: 003334400
KIT HAND BRAKE SYS.
KIT FRENO A MANO PER VETTURA
from £591.43
from £591.43
