lamborghini diablo sv (1997) exhaust system parts diagram

44.03.00 - Exhaust System

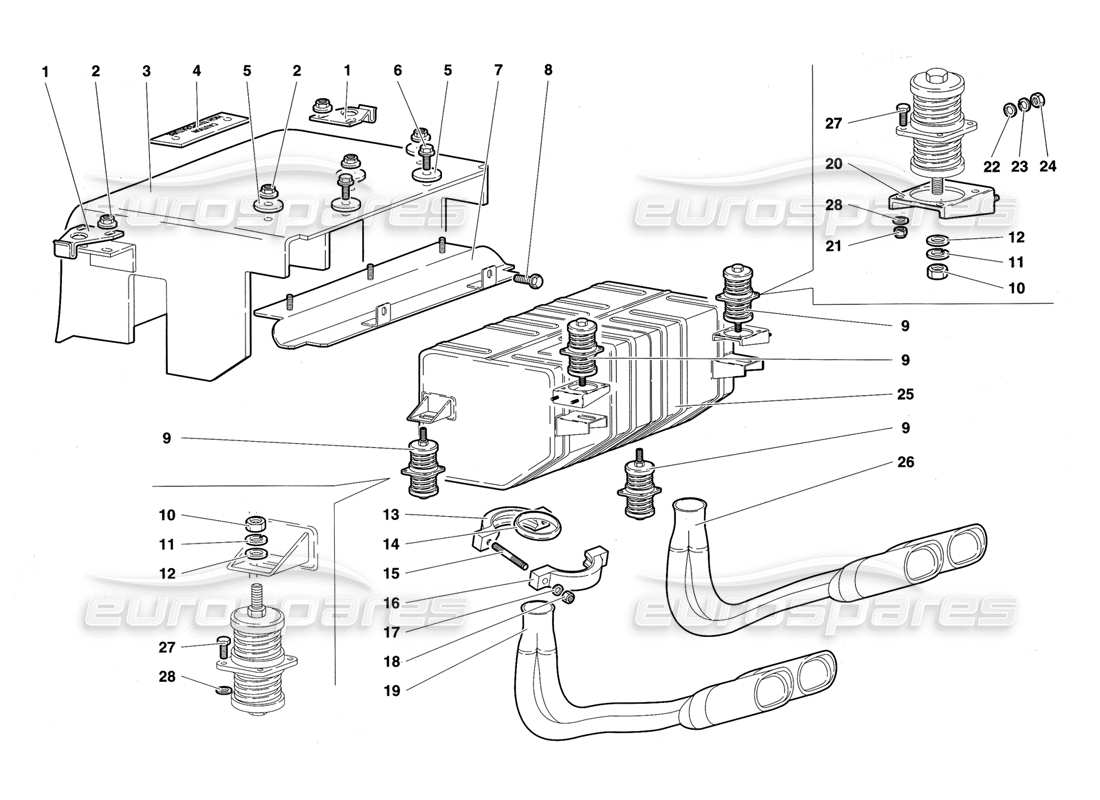

Lamborghini Diablo SV (1997) Exhaust System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 009411613
        SUPPORT
        SUPPORTO
        from £22.60
        from £22.60
        # 002
        MPN: 008200614
        NUT
        DADO
        Supersession
        Supersession
        # 003
        MPN: 004433479
        SHIELD
        PARATIA ANTICALORE
        from £2,035.46
        from £2,035.46
        # 004
        MPN: 009466105
        PLATE
        TARGHETTA CAUTION HIGH TEMP.
        from £26.66
        from £26.66
        # 005
        MPN: 009444151
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 006
        MPN: N10718801
        SCREW
        VITE
        from £0.59
        from £0.59
        # 007
        MPN: 004437412
        SHIELD
        PARATIA ANTICALORE
        # 008
        MPN: 008700449
        SCREW
        VITE
        from £2.04
        from £2.04
        # 009
        MPN: 400251393A
        EXHAUST SUPPORT MOUNT
        from £151.23
        from £151.23
        This part replaces part number 004432031 - and 5 more. Click to view details
        # 010
        MPN: N10155210
        NUT
        DADO
        from £1.25
        from £1.25
        This part replaces part number 008201001
        # 011
        MPN: 008451005
        WASHER
        RONDELLA
        from £0.50
        from £0.50
        # 012
        MPN: 008401006
        WASHER
        RONDELLA
        from £0.53
        from £0.53
        # 013
        MPN: 004425084
        HALF RING
        SEMIANELLO FILETTATO
        from £283.61
        from £283.61
        # 014
        MPN: 004424070
        BI-CONE RING
        ANELLO DOPPIO CONO
        from £93.82
        from £93.82
        # 015
        MPN: N0444416
        STUD
        PRIGIONIERO
        from £2.18
        from £2.18
        # 016
        MPN: 004425084
        HALF RING
        SEMIANELLO
        from £283.61
        from £283.61
        # 017
        MPN: 008440806
        WASHER
        use : WHT001185
        Supersession
        Supersession
        # 018
        MPN: N02214621
        NUT
        DADO
        from £1.39
        from £1.39
        This part replaces part number N0221468
        # 019
        MPN: 0044003943
        RH TERMINAL
        from £1,156.61
        from £1,156.61
        # 020
        MPN: 004437428
        SUPPORT
        SUPPORTO
        from £55.17
        from £55.17
        # 021
        MPN: N0211963
        NUT
        DADO
        from £0.48
        from £0.48
        # 022
        MPN: 008400801
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 023
        MPN: 008410806
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 024
        MPN: N01100845
        NUT
        DADO
        from £1.21
        from £1.21
        This part replaces part number 008200801 - and 2 more. Click to view details
        # 025
        MPN: 004430979
        SILENCER/MUFFLER
        SILENZIATORE
        from £1,522.50
        from £1,522.50
        # 026
        MPN: 0044003942
        LH TERMINAL
        from £1,156.61
        from £1,156.61
        # 027
        MPN: N01020717
        SCREW
        VITE
        from £0.48
        from £0.48
        This part replaces part number 008100504
        # 028
        MPN: 008410508
        WASHER
        RONDELLA
        from £0.48
        from £0.48
