60.01.00 - dashboard instruments

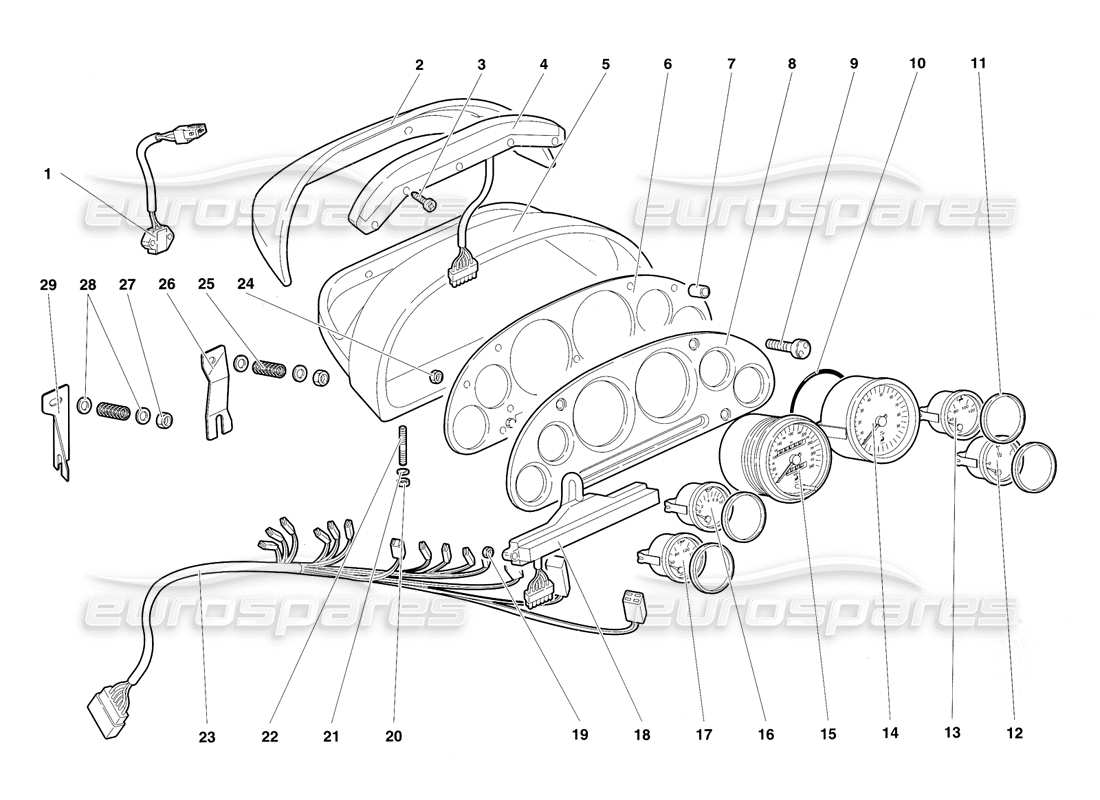

Lamborghini Diablo SV (1997) Dashboard Instruments Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 004526662
      TEMPERATURE SENS.
      SENSORE TEMPERATURA ESTERNA
      from £200.82
      from £200.82
      # 002
      MPN: 009414427
      REAR DASHBOARD P.
      CRUSCOTTO POST.
      from £102.87
      from £102.87
      # 003
      MPN: 008700449
      SCREW
      VITE
      from £1.92
      from £1.92
      # 004
      MPN: 006033214
      WARNING LIGHTS
      GRUPPOSPIE
      from £257.25
      from £257.25
      # 005
      MPN: 009414437
      FRONT DASHBOARD P.
      CRUSCOTTO ANT.
      from £378.50
      from £378.50
      # 006
      MPN: 009414428
      INSTRUMENT PANEL
      PLANCIA PORTASTRUMEN
      from £106.48
      from £106.48
      # 007
      MPN: 009414407
      SPACER
      DISTANZIALE
      from £21.10
      from £21.10
      # 008
      MPN: 009414440
      PLATE
      PIASTRA COPRISTRUMENTI
      from £351.63
      from £351.63
      # 009
      MPN: 009414420
      SCREW
      VITE
      from £21.03
      from £21.03
      # 010
      MPN: 008609802
      SEAL
      ANELLO TENUTA
      from £0.54
      from £0.54
      # 011
      MPN: 006030886
      SPACER
      DISTANZIALE
      from £31.59
      from £31.59
      # 012
      MPN: 006034966
      FUEL LEVEL GAUGE
      INDICATORE LIVELLO CARBURANTE
      from £138.90
      from £138.90
      # 013
      MPN: 006034969
      WATER TEMP. GAUGE
      INDICATORE TEMPERATURA ACQUA
      from £130.71
      from £130.71
      # 014
      MPN: 006034965
      REVOLUTION COUNT.
      CONTAGIRI
      from £373.60
      from £373.60
      # 015
      MPN: 006034964
      SPEEDOMETER - KM
      CONTACHILOMETRI
      from £440.75
      from £440.75
      # 016
      MPN: 006034967
      OIL PRESSURE GAUGE
      INDICATORE PRESSIONE OLIO
      from £108.16
      from £108.16
      # 017
      MPN: 006034968
      OIL TEMP. GAUGE
      INDICATORE TEMPERATURA OLIO
      from £146.27
      from £146.27
      # 018
      MPN: 006033213
      WARNING LIGHTS
      GRUPPOSPIE
      from £361.01
      from £361.01
      # 019
      MPN: WHT002959
      NUT
      DADO
      from £0.57
      from £0.57
      # 020
      MPN: 008200606
      NUT
      Supersession
      Supersession
      # 021
      MPN: WHT003093
      WASHER
      RONDELLA
      from £0.47
      from £0.47
      # 022
      MPN: 8300611
      STUD
      PRIGIONIERO
      # 023
      MPN: 006133198
      ELECT CABLE
      CAVO ELETTRICO
      from £113.78
      from £113.78
      # 024
      MPN: N0211963
      NUT
      DADO
      from £0.55
      from £0.55
      # 025
      MPN: 009414416
      SPRING
      MOLLA
      from £12.04
      from £12.04
      # 026
      MPN: 009414414
      RIGHT BRACKET
      STAFFA DX
      from £28.32
      from £28.32
      # 027
      MPN: 008200606
      NUT
      Supersession
      Supersession
      # 028
      MPN: WHT002961
      WASHER
      RONDELLA
      from £0.53
      from £0.53
      This part replaces part number 008400607
      # 029
      MPN: 009414415
      LEFT BRACKET
      STAFFA SX
      from £44.30
      from £44.30
