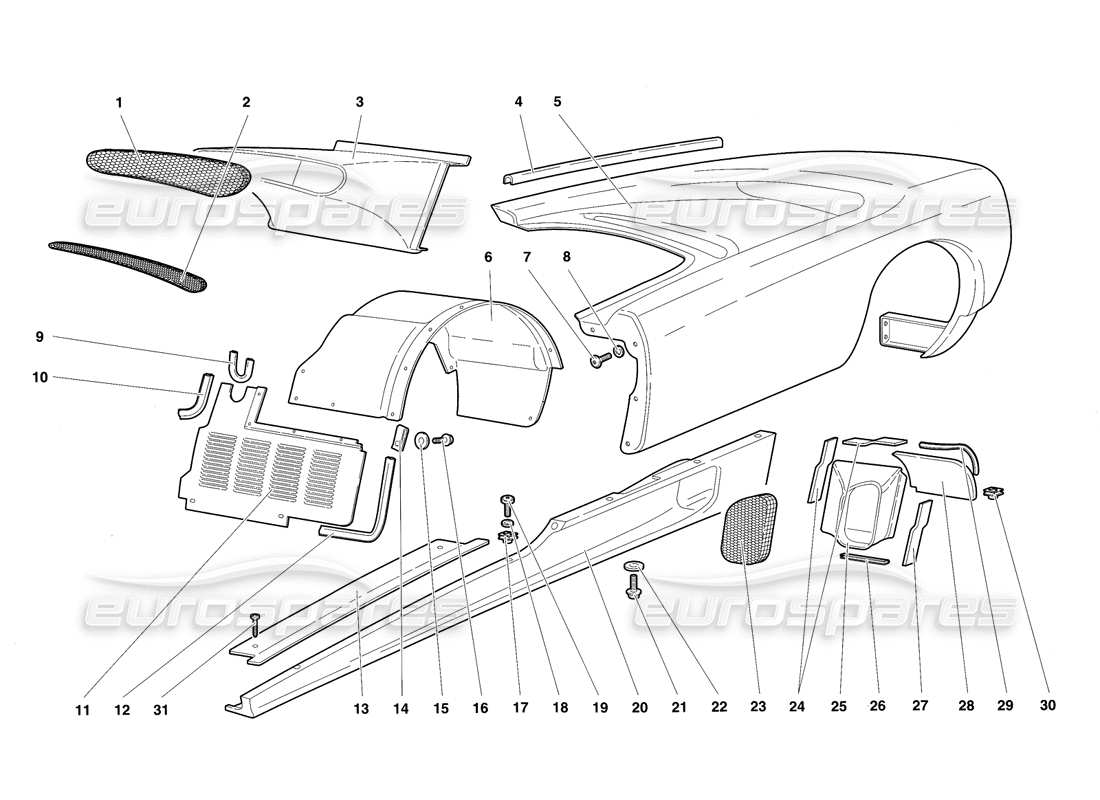

9410.04.00 - Body Elements - Left Flank

Lamborghini Diablo SV (1997) Body Elements - Left Flank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 009430125
      NET
      RETE
      from £228.28
      from £228.28
      # 002
      MPN: 009430127
      NET
      RETE
      from £157.12
      from £157.12
      # 003
      MPN: 009453147
      CONVEYOR
      CONVOGLIATORE
      from £541.41
      from £541.41
      # 004
      MPN: 009490113
      GASKET
      Guarnizione
      from £15.35
      from £15.35
      This part replaces part number 009490110
      # 005
      MPN: 009410003
      REAR MUDG. FENDER
      PARAFANGO POST.
      Supersession
      Supersession
      # 006
      MPN: 009911501
      REAR WHEELBOX
      PASSARUOTA POST.
      from £633.44
      from £633.44
      # 007
      MPN: 008700685
      SCREW
      VITE
      Supersession
      Supersession
      # 008
      MPN: 008400624
      WASHER
      RONDELLA
      from £2.68
      from £2.68
      # 009
      MPN: 009411513
      GASKET
      Guarnizione
      from £102.46
      from £102.46
      # 010
      MPN: 009411512
      GASKET
      Guarnizione
      from £38.31
      from £38.31
      # 011
      MPN: 009411526
      PROTECTION
      PARASASSI
      from £325.97
      from £325.97
      # 012
      MPN: 009411511
      GASKET
      Guarnizione
      from £69.15
      from £69.15
      # 013
      MPN: 009458607
      DOORSILL MOULDING
      BATTICALCAGNO
      from £125.20
      from £125.20
      # 014
      MPN: WHT000916A
      CLIP
      MOLLETTA
      from £9.30
      from £9.30
      # 015
      MPN: 008400508
      WASHER
      RONDELLA
      Supersession
      Supersession
      # 016
      MPN: 008700449
      SCREW
      VITE
      from £1.91
      from £1.91
      # 017
      MPN: N90327506
      CLIP
      from £0.58
      from £0.58
      # 018
      MPN: 008400624
      WASHER
      RONDELLA
      from £2.68
      from £2.68
      # 019
      MPN: 008700685
      SCREW
      VITE
      Supersession
      Supersession
      # 020
      MPN: 9410305
      LEFT PANEL
      BRANCARDO SX
      # 021
      MPN: N10718801
      SCREW
      VITE
      from £0.59
      from £0.59
      # 022
      MPN: WHT002961
      WASHER
      RONDELLA
      from £0.53
      from £0.53
      This part replaces part number 008400607
      # 023
      MPN: 009430170
      NET
      RETE
      from £54.07
      from £54.07
      # 024
      MPN: 009453125
      GASKET
      Guarnizione
      from £3.32
      from £3.32
      # 026
      MPN: 009411512
      GASKET
      Guarnizione
      from £38.31
      from £38.31
      # 027
      MPN: 009453126
      GASKET
      Guarnizione
      from £2.53
      from £2.53
      # 028
      MPN: 009453142
      CONVEYOR
      CONVOGLIATORE
      from £68.32
      from £68.32
      # 029
      MPN: 009490200
      GASKET
      Guarnizione
      from £86.23
      from £86.23
      # 030
      MPN: N90327506
      CLIP
      from £0.62
      from £0.62
      # 031
      MPN: 008700334
      SCREW
      VITE
      from £0.53
      from £0.53
