95.41.01.00 - Frame Elements (Valid for Japan - March 1997)

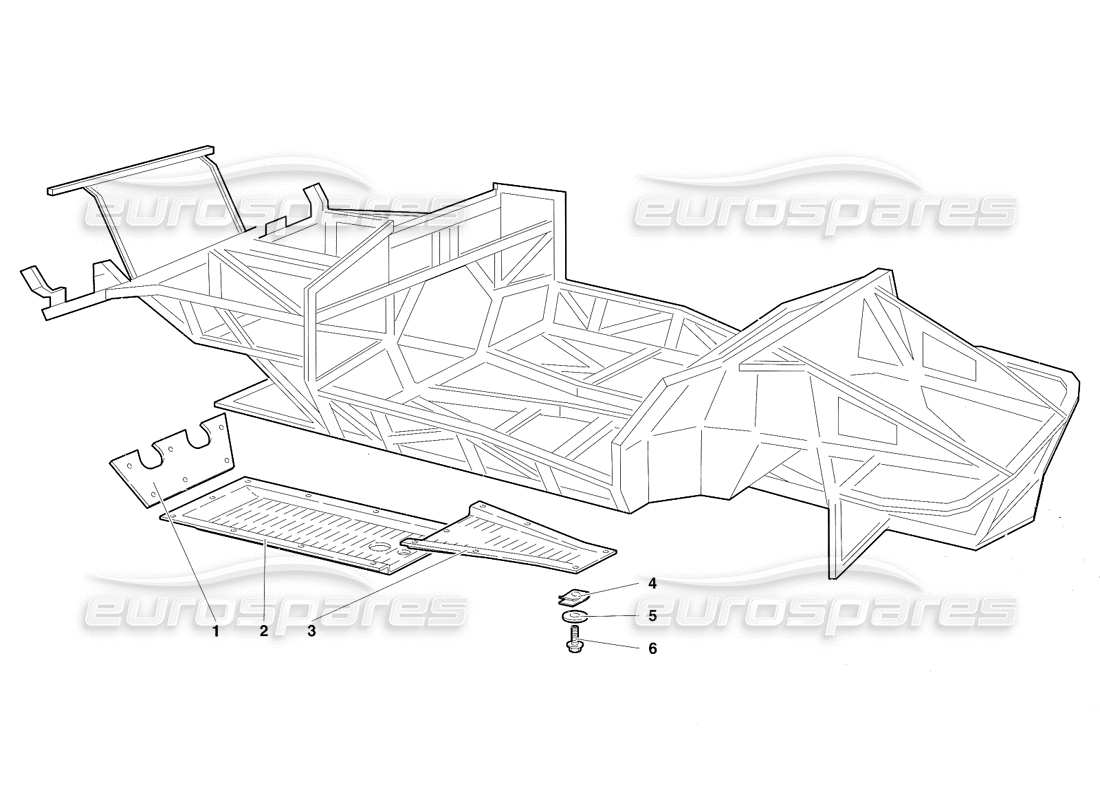

Lamborghini Diablo SV (1997) Frame Elements (Valid for Japan - March 1997) Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 004133994
REAR SHIELD
(Valid for JAPAN - March 1997) PROTEZIONE POSTERIORE
from £167.90
from £167.90
# 002
MPN: 004132254
SHIELD
(Valid for JAPAN - March 1997) PROTEZIONE INFERIORE COPPA O.
from £359.01
from £359.01
# 003
MPN: 004132253
SHIELD
(Valid for JAPAN - March 1997) PROTEZIONE INFERIORE CAMBIO
from £612.72
from £612.72
# 004
MPN: 008220402
CLIP
(Valid for JAPAN - March 1997) MOLLETTA
from £2.87
from £2.87
# 005
MPN: 008400508
WASHER
(Valid for JAPAN - March 1997) RONDELLA
Supersession
Supersession
# 006
MPN: WHT003066
SCREW
from £8.73
from £8.73
This part replaces part number 008700454
