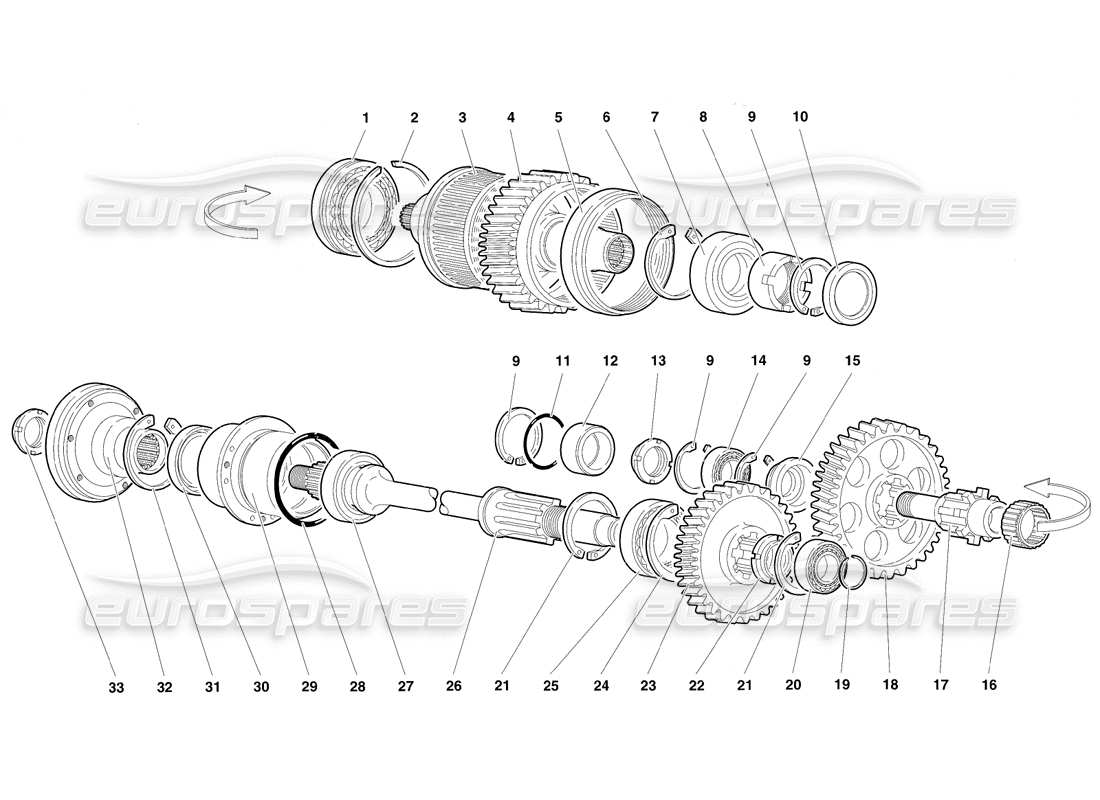

lamborghini diablo sv (1997) gear transmission end (valid for canada - march 1997) parts diagram

96.24.07.00 - Gear Transmission End (Valid for Canada - March 1997)

Lamborghini Diablo SV (1997) Gear Transmission End (Valid for Canada - March 1997) Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Key
    Price
    # 001
    MPN: 008525013
    BEARING
    (Valid for CANADA - March 1997) CUSCINETTO
    from £173.80
    from £173.80
    BEARING Genuine Lamborghini - New (to order)
    # 002
    MPN: 008589001
    RETAINER RING
    (Valid for CANADA - March 1997) ANELLO RITEGNO
    from £2.16
    from £2.16
    RETAINING RING Genuine Lamborghini - New (to order)
    # 003
    MPN: 002437746
    Viscous Coupling
    (Valid for CANADA - March 1997) GIUNTO VISCOSO
    Lamborghini PART 002437746 Genuine Lamborghini - New (to order)
    # 004
    MPN: 002434502
    GEAR
    (Valid for CANADA - March 1997) INGRANAGGIO
    from £624.32
    from £624.32
    CV JOINT CROWN GEAR Genuine Lamborghini - New (to order)
    # 005
    MPN: 002437744
    PLUG
    (Valid for CANADA - March 1997) GHIERA
    Lamborghini PART 002437744 Genuine Lamborghini - New (to order)
    # 006
    MPN: 008578001
    RETAINER RING
    (Valid for CANADA - March 1997) ANELLO RITEGNO
    from £3.72
    from £3.72
    O-RING I 80 UNI 3654 Genuine Lamborghini - New In stock
    # 007
    MPN: 008514001
    BEARING
    (Valid for CANADA - March 1997) CUSCINETTO
    from £92.03
    from £92.03
    BEARING Genuine Lamborghini - New (to order)
    # 008
    MPN: 008254004
    PLUG
    (Valid for CANADA - March 1997) GHIERA
    from £88.72
    from £88.72
    M40X1..5 SPECIAL RING NUT Genuine Lamborghini - New (to order)
    # 009
    MPN: 008575201
    RETAINER RING
    (Valid for CANADA - March 1997) ANELLO RITEGNO
    from £0.76
    from £0.76
    O-RING I 52 UNI 3654 Genuine Lamborghini - New In stock
    # 010
    MPN: 086311819
    SEAL
    from £33.12
    from £33.12
    This part replaces part number 008613601
    OIL SEAL 36X52X7 MM Genuine Lamborghini - New In stock
    # 011
    MPN: 008605002
    SEAL
    (Valid for CANADA - March 1997) ANELLO TENUTA
    from £0.62
    from £0.62
    RING 51 MM OR Genuine Lamborghini - New (to order)
    # 012
    MPN: 002436927
    COVER
    (Valid for CANADA - March 1997) COPERCHIO
    from £130.58
    from £130.58
    GEARBOX COVER Genuine Lamborghini - New (to order)
    # 013
    MPN: 008252502
    PLUG
    (Valid for CANADA - March 1997) GHIERA
    from £99.91
    from £99.91
    M25X1.5 SPECIAL RINGNUT Genuine Lamborghini - New (to order)
    # 014
    MPN: 008512500
    BEARING
    (Valid for CANADA - March 1997)
    from £78.96
    from £78.96
    BEARING (008512500) Eurospares Approved Part - New In stock
    BEARING Genuine Lamborghini - New In stock
    # 015
    MPN: 002430936
    SPACER
    (Valid for CANADA - March 1997) DISTANZIALE
    from £41.79
    from £41.79
    SPACER Genuine Lamborghini - New (to order)
    # 016
    MPN: 008523517
    BEARING
    (Valid for CANADA - March 1997) CUSCINETTO
    from £12.89
    from £12.89
    BEARING Genuine Lamborghini - New (to order)
    # 017
    MPN: 002431869
    SMALL SHAFT
    (Valid for CANADA - March 1997) ALBERINO
    from £3,130.00
    from £3,130.00
    CV JOINT ENGAGE SHAFT Genuine Lamborghini - New (to order)
    # 018
    MPN: 002433672
    GEAR
    (Valid for CANADA - March 1997) INGRANAGGIO
    from £1,253.74
    from £1,253.74
    CRANKSHAFT IDLE WHEEL Genuine Lamborghini - New (to order)
    # 019
    MPN: 008582501
    RETAINER RING
    (Valid for CANADA - March 1997) ANELLO RITEGNO
    from £3.65
    from £3.65
    O-RING E 25 UNI 7435-75 Genuine Lamborghini - New (to order)
    # 020
    MPN: 008522509
    BEARING
    (Valid for CANADA - March 1997) CUSCINETTO
    from £110.68
    from £110.68
    BEARING 25X62X17 Genuine Lamborghini - New In stock
    # 021
    MPN: 008576601
    RETAINER RING
    (Valid for CANADA - March 1997) ANELLO RITEGNO
    from £0.53
    from £0.53
    O-RING I 62 UNI 3654 Genuine Lamborghini - New (to order)
    # 022
    MPN: 008253005
    PLUG
    (Valid for CANADA - March 1997) GHIERA
    from £12.15
    from £12.15
    RING NUT MM 30X1,5 Genuine Lamborghini - New (to order)
    # 023
    MPN: 002433673
    GEAR
    (Valid for CANADA - March 1997) INGRANAGGIO
    from £1,085.13
    from £1,085.13
    CRANKSHAFT DRIVE GEAR Genuine Lamborghini - New (to order)
    # 024
    MPN: 008577601
    RETAINER RING
    (Valid for CANADA - March 1997) ANELLO RITEGNO
    from £2.33
    from £2.33
    O-RING I 72 UNI 3654 Genuine Lamborghini - New In stock
    # 025
    MPN: 008523516
    BEARING
    (Valid for CANADA - March 1997) CUSCINETTO
    from £37.62
    from £37.62
    BEARING Genuine Lamborghini - New (to order)
    # 026
    MPN: 002434628
    propeller shaft
    (Valid for CANADA - March 1997) ALBERO TRASMISSIONE
    from £393.83
    from £393.83
    FRONT PROPELLER SHAFT Genuine Lamborghini - New (to order)
    # 027
    MPN: 008513000
    BEARING
    (Valid for CANADA - March 1997) CUSCINETTO
    from £48.67
    from £48.67
    BEARING Genuine Lamborghini - New (to order)
    # 028
    MPN: 008606502
    SEAL
    (Valid for CANADA - March 1997) ANELLO TENUTA
    from £0.54
    from £0.54
    OR RING Genuine Lamborghini - New In stock
    # 029
    MPN: 002434637
    FLANGE
    (Valid for CANADA - March 1997) FLANGIA
    from £218.89
    from £218.89
    BUSHING Genuine Lamborghini - New (to order)
    # 030
    MPN: 008614211
    SEAL
    (Valid for CANADA - March 1997) ANELLO TENUTA
    from £13.77
    from £13.77
    ANELLO ANG.PF. (A) 42558 VITON Genuine Lamborghini - New In stock
    # 031
    MPN: 008575501
    RETAINER RING
    (Valid for CANADA - March 1997) ANELLO RITEGNO
    from £0.91
    from £0.91
    SEEGER I 55 UNI 3654 Genuine Lamborghini - New In stock
    # 032
    MPN: 002434627
    FLANGE
    (Valid for CANADA - March 1997) FLANGIA
    from £690.65
    from £690.65
    FRONT PROPELLER SHAFT & GEARBO X OUTPUT Genuine Lamborghini - New (to order)
    # 033
    MPN: 008252505
    PLUG
    (Valid for CANADA - March 1997) GHIERA
    from £49.64
    from £49.64
    D.25X1.5 UNI 5343 RING NUT Genuine Lamborghini - New (to order)
