13.02.00 - Air Filters

Lamborghini Diablo SV (1998) Air Filters Parts Diagram

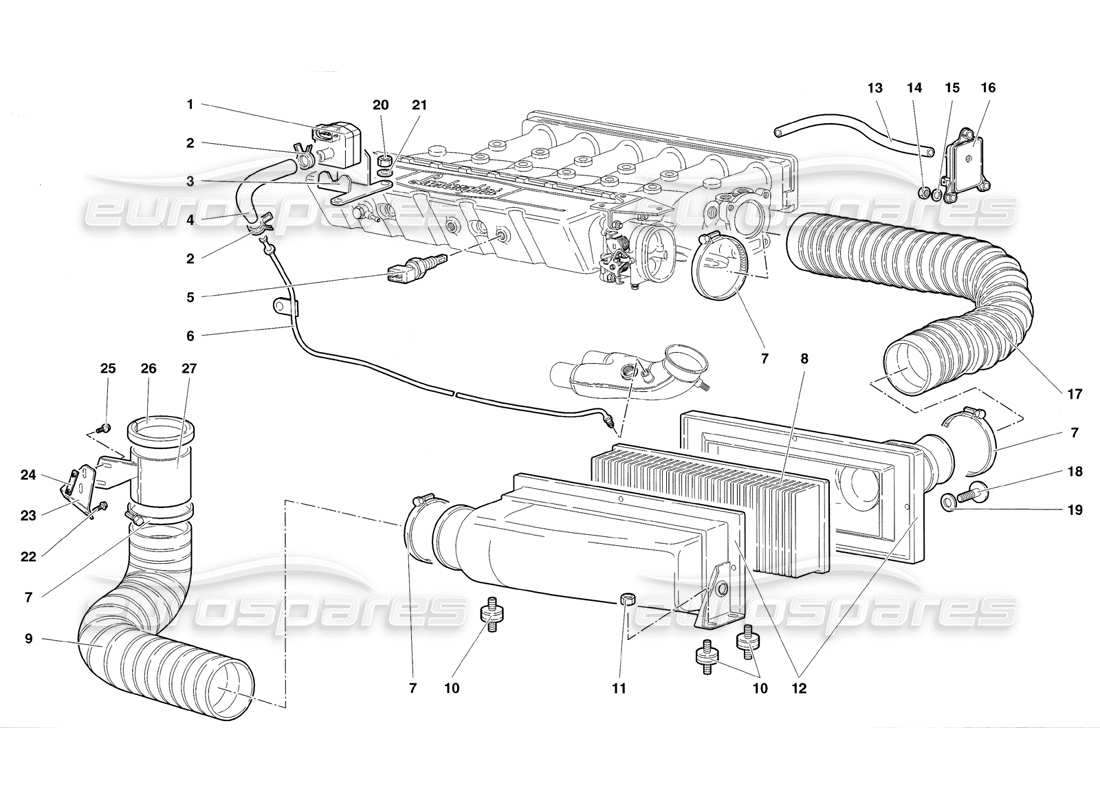

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 0020001200
    SENSOR
    SENSORE
    from £459.34
    from £459.34
    # 002
    MPN: 008830131
    STRAP
    FASCETTA
    Supersession
    Supersession
    # 003
    MPN: 0020001196
    RIGHT SUPPORT
    SUPPORTO DX
    from £56.97
    from £56.97
    # 003
    MPN: 0020001197
    LEFT SUPPORT
    SUPPORTO SX
    from £56.97
    from £56.97
    # 004
    MPN: 0020001201
    PIPE
    Tubo
    Supersession
    Supersession
    # 005
    MPN: 07M919529
    AIR TEMPERATURE SENSOR
    from £173.36
    from £173.36
    # 006
    MPN: 0020001198
    RIGHT PIPE
    TUBO DX
    from £161.69
    from £161.69
    # 006
    MPN: 0020001199
    LEFT PIPE
    TUBO SX
    from £100.31
    from £100.31
    # 006
    MPN: 0020001298
    RIGHT PIPE
    (Valid for USA - November 1998) TUBO DX
    from £43.45
    from £43.45
    # 006
    MPN: 0020001298
    RIGHT PIPE
    (Valid for CANADA - November 1998) TUBO DX
    from £43.45
    from £43.45
    # 006
    MPN: 0020001299
    LEFT PIPE
    (Valid for USA - November 1998) TUBO SX
    from £140.55
    from £140.55
    # 006
    MPN: 0020001299
    LEFT PIPE
    (Valid for CANADA - November 1998) TUBO SX
    from £140.55
    from £140.55
    # 007
    MPN: 008838701
    STRAP
    FASCETTA
    from £4.40
    from £4.40
    # 008
    MPN: 07M133843
    AIR FILTER
    replaces: 001321435
    from £17.12
    from £17.12
    This part replaces part number 001321435
    # 009
    MPN: 001337438
    PIPE
    Tubo
    from £220.49
    from £220.49
    # 010
    MPN: 009411508
    ELASTIC SUPPORT
    SUPPORTO ELASTICO
    from £17.82
    from £17.82
    # 011
    MPN: 008200614
    NUT
    DADO
    Supersession
    Supersession
    # 012
    MPN: 0013001215
    RIGHT CASE
    RH AIR FILTER BOX.
    from £558.83
    from £558.83
    # 012
    MPN: 0013001216
    LEFT CASE
    SCATOLA FILTRO ARIA SX
    from £582.87
    from £582.87
    # 013
    MPN: 001330454
    PIPE
    Tubo
    from £88.72
    from £88.72
    # 014
    MPN: 008200606
    NUT
    DADO
    Supersession
    Supersession
    # 015
    MPN: WHT002961
    WASHER
    RONDELLA
    from £0.52
    from £0.52
    This part replaces part number 008400607
    # 016
    MPN: 07M919529A
    PRESS. SENSOR
    PRESSURE SENSOR
    from £267.18
    from £267.18
    # 017
    MPN: 001331286
    RIGHT PIPE
    TUBODX
    from £108.09
    from £108.09
    # 017
    MPN: 001333774
    LEFT PIPE
    TUBO SX
    from £152.18
    from £152.18
    # 018
    MPN: 008700691
    SCREW
    VITE
    from £1.97
    from £1.97
    # 019
    MPN: 008400623
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 020
    MPN: 008200606
    NUT
    DADO
    Supersession
    Supersession
    # 021
    MPN: 008400606
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 022
    MPN: N10718801
    SCREW
    VITE
    from £0.59
    from £0.59
    # 023
    MPN: 009453168
    RIGHT BRACKET
    STAFFA DX
    from £37.44
    from £37.44
    # 023
    MPN: 009453169
    LEFT BRACKET
    STAFFASX
    from £37.44
    from £37.44
    # 024
    MPN: 009453172
    BRACKET
    STAFFA
    from £5.60
    from £5.60
    # 025
    MPN: N10718801
    SCREW
    VITE
    from £0.59
    from £0.59
    # 026
    MPN: 009453162
    GASKET
    Guarnizione
    from £24.89
    from £24.89
    # 027
    MPN: 009453170
    RIGHT SUPPORT
    SUPPORTO DX
    from £167.07
    from £167.07
    # 027
    MPN: 009453171
    LEFT SUPPORT
    SUPPORTO SX
    from £167.07
    from £167.07
