lamborghini diablo sv (1998) accelerator cables parts diagram

13.03.00 - accelerator cables

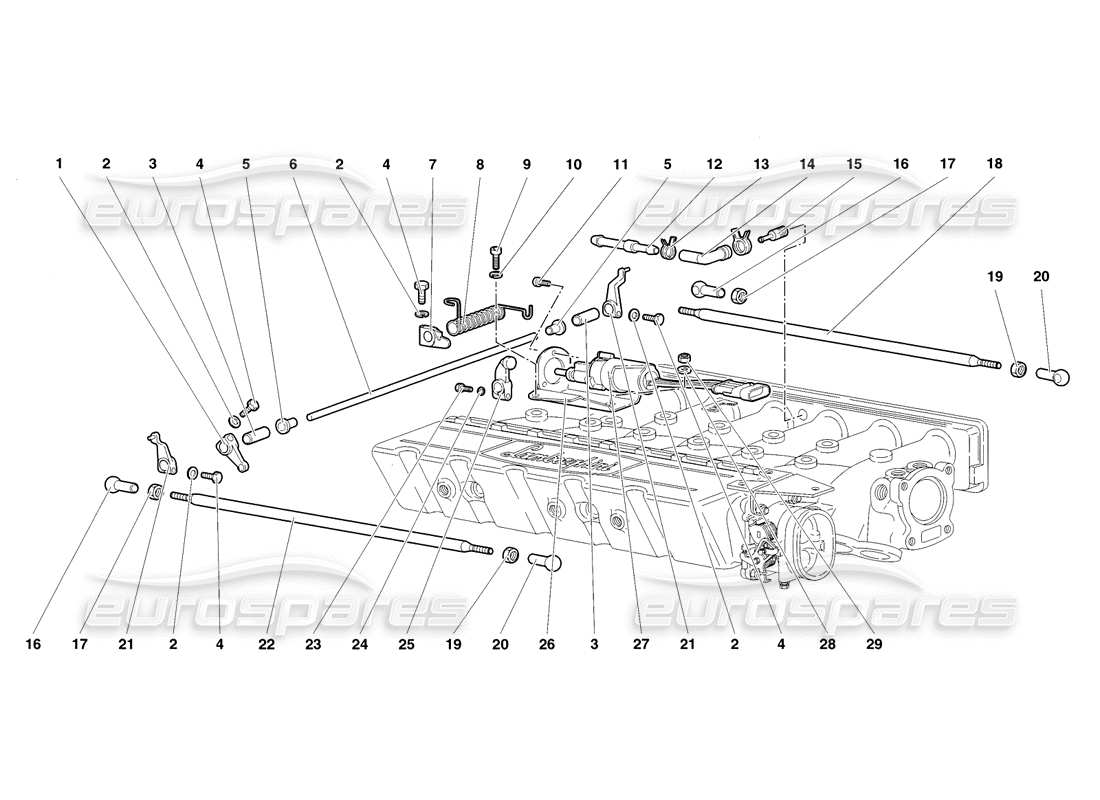

Lamborghini Diablo SV (1998) Accelerator Cables Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 001301093
LEVER
LEVA
from £143.10
from £143.10
# 002
MPN: 008410602
WASHER
RONDELLA
from £28.28
from £28.28
# 003
MPN: 001323136
SPACER
DISTANZIALE
from £8.58
from £8.58
# 004
MPN: 008100601
SCREW
VITE
Supersession
Supersession
# 005
MPN: 008801204
BUSHING
BOCCOLA
from £5.85
from £5.85
# 006
MPN: 001323135
SMALL SHAFT
ALBERINO
from £20.78
from £20.78
# 007
MPN: 001331005
LEVER
LEVA
from £23.97
from £23.97
# 008
MPN: 001335958
SPRING
MOLLA
from £20.98
from £20.98
# 009
MPN: 008700646
SCREW
VITE
from £0.54
from £0.54
# 010
MPN: 008410602
WASHER
RONDELLA
from £28.85
from £28.85
# 011
MPN: 008700465
SCREW
VITE
from £0.53
from £0.53
# 012
MPN: 001329319
CONNECTION
RACCORDO
from £0.76
from £0.76
# 013
MPN: 008830122
STRAP
FASCETTA
from £0.53
from £0.53
# 014
MPN: 07L131756
CONNECTION
RACCORDO
from £17.17
from £17.17
This part replaces part number 001329321
# 015
MPN: 001328721
CONNECTION
RACCORDO
from £12.66
from £12.66
# 016
MPN: 001300804
COUPLING HEAD
TESTA GIUNTO SFERICO
from £7.38
from £7.38
# 017
MPN: 008200501
NUT
DADO
Supersession
Supersession
# 018
MPN: 001328014
LEFT TIE ROD
TIRANTE SX
from £228.28
from £228.28
# 019
MPN: N10690001
NUT
DADO
from £318.19
from £318.19
# 020
MPN: 001308539
COUPLING HEAD
TESTA GIUNTO SFERICO
# 021
MPN: 001311580
LEVER
LEVA
from £208.10
from £208.10
# 022
MPN: 001328016
RIGHT TIE ROD
TIRANTE DX
from £323.35
from £323.35
# 023
MPN: 008100601
SCREW
VITE
Supersession
Supersession
# 024
MPN: 008410602
WASHER
RONDELLA
from £28.85
from £28.85
# 025
MPN: 001337826
LEVER
LEVA
from £53.23
from £53.23
# 026
MPN: 001337818
SUPPORT
SUPPORTO
from £40.12
from £40.12
# 027
MPN: 006137792
CONTROL
COMANDO
from £169.14
from £169.14
# 028
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 029
MPN: 008200606
NUT
DADO
Supersession
Supersession
