17.03.00 - Radiators and Electro-Fans

Lamborghini Diablo SV (1998) Radiators and Electro-Fans Parts Diagram

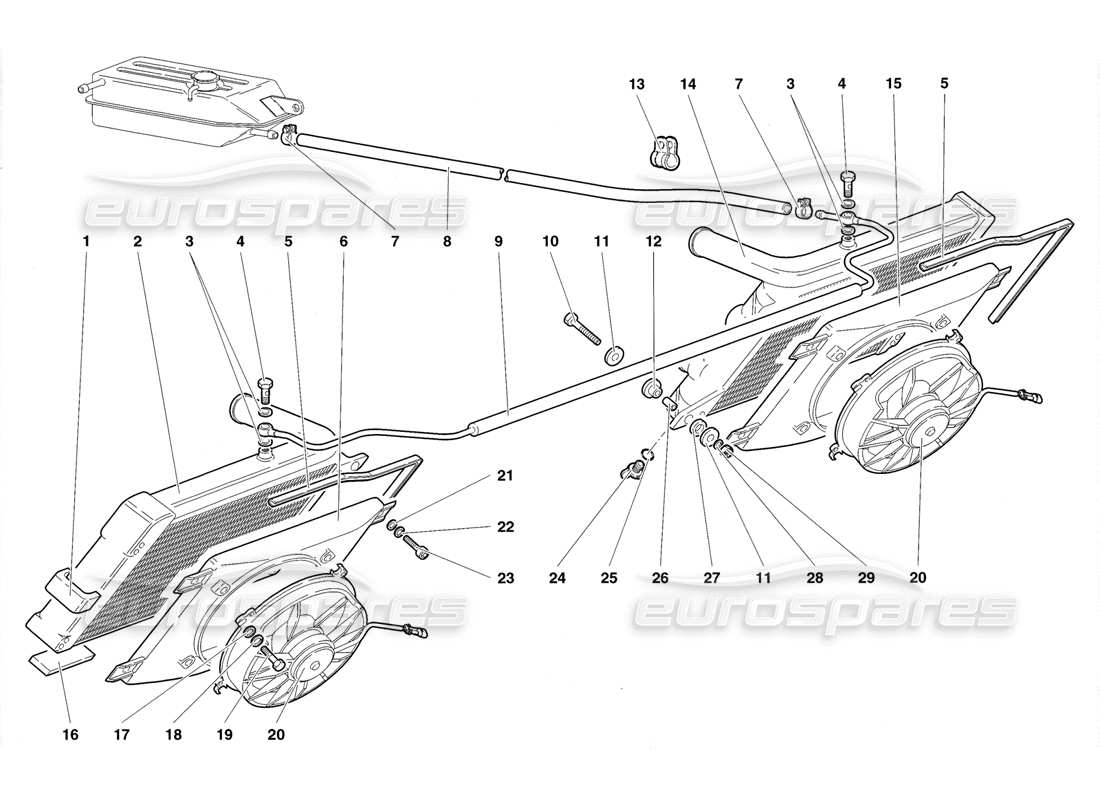

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 001733004
        SHIELD
        PROTEZIONE
        from £13.61
        from £13.61
        # 002
        MPN: 001737035
        LEFT RADIATOR
        RADIATORE SX
        # 003
        MPN: 008400818
        WASHER
        RON DELIA
        Supersession
        Supersession
        # 004
        MPN: WHT000524
        VENT SCREW
        from £14.96
        from £14.96
        This part replaces part number 001733423
        # 005
        MPN: 410121539
        GASKET
        Guarnizione
        from £35.11
        from £35.11
        # 006
        MPN: 410121333
        LEFT CONVEYOR
        CONVOGLIATORE SX
        Supersession
        Supersession
        # 007
        MPN: 008830817
        STRAP
        FASCETTA
        Supersession
        Supersession
        # 008
        MPN: 001735264
        PIPE
        Tubo
        from £10.49
        from £10.49
        # 009
        MPN: 001738038
        VENT PIPE
        TUBO Dl SFIATO
        Supersession
        Supersession
        # 010
        MPN: 008100824
        SCREW
        VITE
        from £0.89
        from £0.89
        # 011
        MPN: WHT001942
        WASHER
        RONDELLA
        from £2.06
        from £2.06
        # 012
        MPN: 001733266
        RUBBER BUSHING
        BOCCOLA GOMMA
        from £4.20
        from £4.20
        # 013
        MPN: 008831515
        STRAP
        FASCETTA
        from £5.63
        from £5.63
        # 014
        MPN: 001735034
        RH RADIATOR
        from £1,319.66
        from £1,319.66
        # 015
        MPN: 410121334A
        RIGHT CONVEYOR
        CONVOGLIATORE DX
        from £535.00
        from £535.00
        # 016
        MPN: 001731451
        SHIELD
        PROTEZIONE
        from £9.25
        from £9.25
        # 017
        MPN: WHT003040
        WASHER
        RONDELLA
        from £4.55
        from £4.55
        # 018
        MPN: 008410502
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 019
        MPN: 008100502
        SCREW
        VITE
        from £0.51
        from £0.51
        # 020
        MPN: 0017017063
        ELECTROFAN
        ELETTROVENTILATORE
        from £225.53
        from £225.53
        This part replaces part number 001734039
        # 021
        MPN: WHT002961
        WASHER
        RONDELLA
        from £0.51
        from £0.51
        This part replaces part number 008400607
        # 022
        MPN: 008410612
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 023
        MPN: 008700644
        SCREW
        VITE
        Supersession
        Supersession
        # 024
        MPN: 410121299
        PLUG
        TAPPO
        from £140.51
        from £140.51
        # 025
        MPN: 008600901
        SEAL
        use : WHT003058
        Supersession
        Supersession
        # 026
        MPN: 001733267
        BUSHING
        BOCCOLA
        from £7.26
        from £7.26
        # 027
        MPN: WHT001189
        RUBBER RING
        from £2.38
        from £2.38
        This part replaces part number 001707163
        # 028
        MPN: 008400801
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 029
        MPN: 008200804
        NUT
        DADO
        from £0.71
        from £0.71
        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
