lamborghini diablo sv (1998) crankcase parts diagram

18.01.00 - crankcase

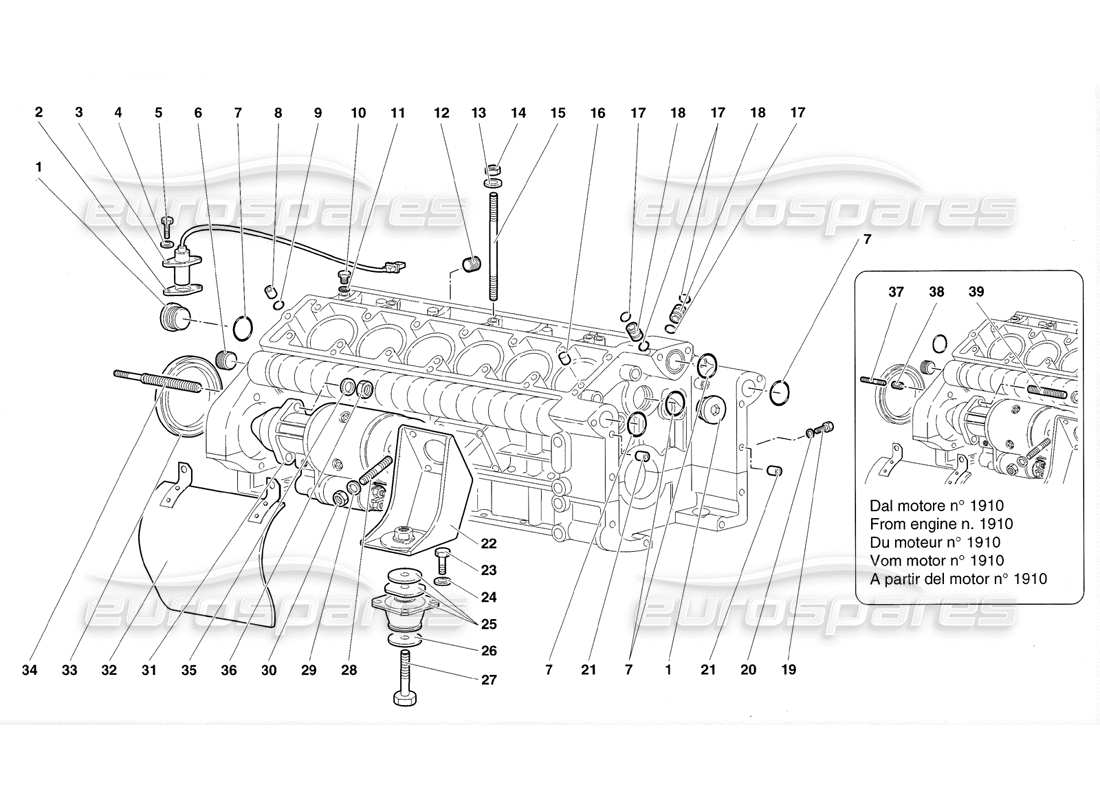

Lamborghini Diablo SV (1998) Crankcase Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 001830023
      PLUG
      TAPPO
      Supersession
      Supersession
      # 002
      MPN: 001628602
      SHIM
      SPESSORE Dl REGISTRO 0,4 MM
      Supersession
      Supersession
      # 002
      MPN: 07M103899
      SHIM
      SPESSORE Dl REGISTRO 0,2 MM
      from £3.34
      from £3.34
      # 003
      MPN: 07M905381
      TIMING SENSOR
      (replaces: 001625411)
      from £393.41
      from £393.41
      This part replaces part number 001628403
      # 003
      MPN: 07M905381
      TIMING SENSOR
      from £393.41
      from £393.41
      This part replaces part number 001628403
      # 004
      MPN: 008410502
      WASHER
      RONDELLA
      Supersession
      Supersession
      # 005
      MPN: N01020717
      SCREW
      VITE
      from £0.47
      from £0.47
      This part replaces part number 008100504
      # 006
      MPN: 008933503
      PLUG
      TAPPO
      # 007
      MPN: 008603503
      SEAL
      ANELLOTENUTA
      from £2.61
      from £2.61
      This part replaces part number 008603501
      # 008
      MPN: 001832161
      DOWEL
      GRAND
      from £242.94
      from £242.94
      # 009
      MPN: WHT003059
      SEAL
      ANELLO TENUTA
      from £102.73
      from £102.73
      This part replaces part number 008601102
      # 010
      MPN: 008101402
      PLUG
      TAPPO
      from £18.20
      from £18.20
      # 011
      MPN: 008401425
      WASHER
      RONDELLA
      Supersession
      Supersession
      # 012
      MPN: 008931209
      PLUG
      TAPPO
      # 013
      MPN: 008400801
      WASHER
      RONDELLA
      Supersession
      Supersession
      # 014
      MPN: 008200809
      NUT
      DADO
      Supersession
      Supersession
      # 015
      MPN: 008300891
      STUD
      PRIGIONIERO
      from £9.47
      from £9.47
      # 017
      MPN: WHT003057
      SEAL
      ANELLO TENUTA
      from £0.87
      from £0.87
      This part replaces part number WHT003507 which we have in stock
      # 018
      MPN: 001833995
      DOWEL
      GRANO
      from £20.15
      from £20.15
      # 019
      MPN: 008100620
      BOLT
      VITE
      from £3.65
      from £3.65
      # 020
      MPN: WHT003041
      WASHER
      RONDELLA
      from £0.54
      from £0.54
      This part replaces part number 008400609 - and 1 more. Click to view details
      # 021
      MPN: 008851304
      DOWEL
      GRANO
      from £39.64
      from £39.64
      # 022
      MPN: 001835941
      SUPPORT
      SUPPORTO
      from £195.68
      from £195.68
      # 023
      MPN: 008101031
      SCREW
      VITE
      Supersession
      Supersession
      # 024
      MPN: 008411014
      WASHER
      RONDELLA
      from £0.51
      from £0.51
      # 025
      MPN: 400199703A
      FLEXIBLE SUPPORT
      SUPPORTO ELASTICO
      from £256.80
      from £256.80
      This part replaces part number 400199703
      # 026
      MPN: 001831606
      WASHER
      RONDELLA
      Supersession
      Supersession
      # 027
      MPN: 004131471
      SCREW
      VITE
      from £21.18
      from £21.18
      # 028
      MPN: 008300814
      STUD
      PRIGIONIERO
      from £4.15
      from £4.15
      # 029
      MPN: 008410806
      WASHER
      RONDELLA
      Supersession
      Supersession
      # 030
      MPN: N01100845
      NUT
      DADO
      from £0.47
      from £0.47
      This part replaces part number 008200801 - and 2 more. Click to view details
      # 031
      MPN: 07M911023
      STARTER MOTOR
      from £3,951.42
      from £3,951.42
      # 032
      MPN: 001635959
      SHIELD
      PROTEZIONE
      from £405.17
      from £405.17
      # 033
      MPN: 07M103089
      SEAL
      from £134.88
      from £134.88
      # 034
      MPN: 008301240
      STUD
      PRIGIONIERO
      from £26.70
      from £26.70
      # 035
      MPN: 008411213
      WASHER
      RONDELLA
      from £1.41
      from £1.41
      # 036
      MPN: 001832869
      NUT
      DADO
      # 037
      MPN: WHT003028
      STUD
      PRIGIONIERO
      from £12.54
      from £12.54
      # 039
      MPN: 008301249
      STUD
      PRIGIONIERO
      from £9.63
      from £9.63
