lamborghini diablo sv (1998) crankcase and lower mounti parts diagram

18.02.00 - Crankcase and Lower Mounti

Lamborghini Diablo SV (1998) Crankcase and Lower Mounti Parts Diagram

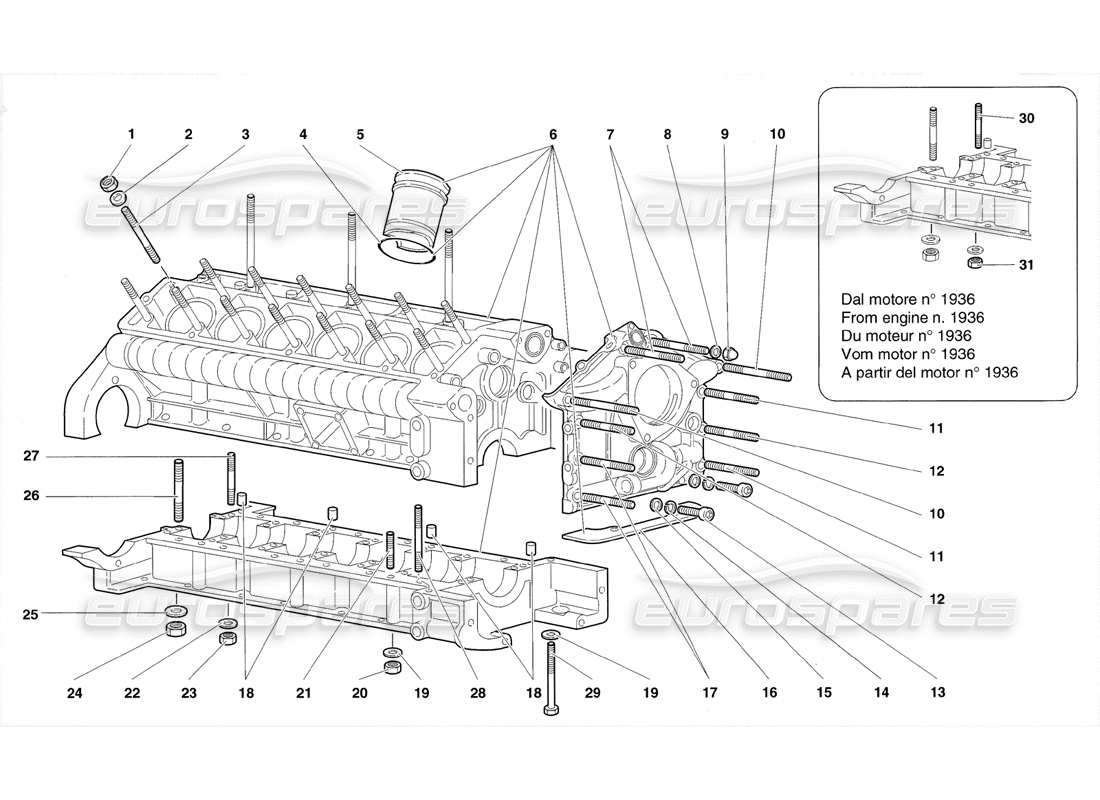

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
    #
    Part number
    Description
    Price
    # 001
    MPN: 001120924
    NUT
    DADO
    from £22.93
    from £22.93
    # 002
    MPN: 008401230
    WASHER
    RONDELLA
    from £32.72
    from £32.72
    # 003
    MPN: 001824761
    STUD
    PRIGIONIERO
    from £64.60
    from £64.60
    # 004
    MPN: WHT003085
    SEAL
    ANELLO TENUTA
    from £2.68
    from £2.68
    # 005
    MPN: 001829442
    CYLINDER
    CILINDRO
    from £297.66
    from £297.66
    # 006
    MPN: 400132000
    crankcase
    WORKED BASE
    # 007
    MPN: 008300904
    STUD
    PRIGIONIERO 45 MM
    from £17.88
    from £17.88
    # 008
    MPN: 008400806
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 009
    MPN: 008200816
    NUT
    DADO
    from £2.90
    from £2.90
    # 010
    MPN: 008300905
    STUD
    PRIGIONIERO 55 MM
    from £11.69
    from £11.69
    # 011
    MPN: 008300902
    STUD
    PRIGIONIERO 35 MM
    from £5.77
    from £5.77
    # 012
    MPN: N0444416
    STUD
    PRIGIONIERO 40 MM
    from £2.31
    from £2.31
    # 013
    MPN: 008700822
    SCREW
    VITE
    from £0.53
    from £0.53
    # 014
    MPN: 008410806
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 015
    MPN: 008400806
    WASHER
    RONDELLA
    Supersession
    Supersession
    # 016
    MPN: 001232219
    GASKET
    Guarnizione
    from £2.99
    from £2.99
    # 017
    MPN: 008300902
    STUD
    PRIGIONIERO 35 MM
    from £5.77
    from £5.77
    # 019
    MPN: 008410815
    WASHER
    RONDELLA
    from £0.49
    from £0.49
    # 020
    MPN: N01100845
    NUT
    DADO
    from £0.47
    from £0.47
    This part replaces part number 008200801 - and 2 more. Click to view details
    # 021
    MPN: 008300808
    STUD
    use : WHT003027
    Supersession
    Supersession
    # 021
    MPN: WHT003028
    STUD
    PRIGIONIERO 25 MM
    from £12.54
    from £12.54
    # 022
    MPN: 008400820
    WASHER
    RONDELLA
    from £10.30
    from £10.30
    # 023
    MPN: 008200805
    NUT
    from £0.49
    from £0.49
    # 024
    MPN: 008201221
    NUT
    DADO
    Supersession
    Supersession
    # 025
    MPN: 008401227
    WASHER
    RONDELLA
    from £9.64
    from £9.64
    # 026
    MPN: 008301238
    STUD
    PRIGIONIERO
    from £10.57
    from £10.57
    # 027
    MPN: 008300886
    STUD
    PRIGIONIERO
    from £27.99
    from £27.99
    # 028
    MPN: 008300884
    STUD
    PRIGIONIERO 95 MM
    from £20.98
    from £20.98
    # 029
    MPN: 008100871
    SCREW
    VITE 95 MM
    from £2.61
    from £2.61
    # 030
    MPN: 008300917
    STUD
    PRIGIONIERO
    from £8.09
    from £8.09
    # 031
    MPN: N01100845
    NUT
    DADO
    from £0.47
    from £0.47
    This part replaces part number 008200801 - and 2 more. Click to view details
