lamborghini diablo sv (1998) oil sump parts diagram

18.03.00 - oil sump

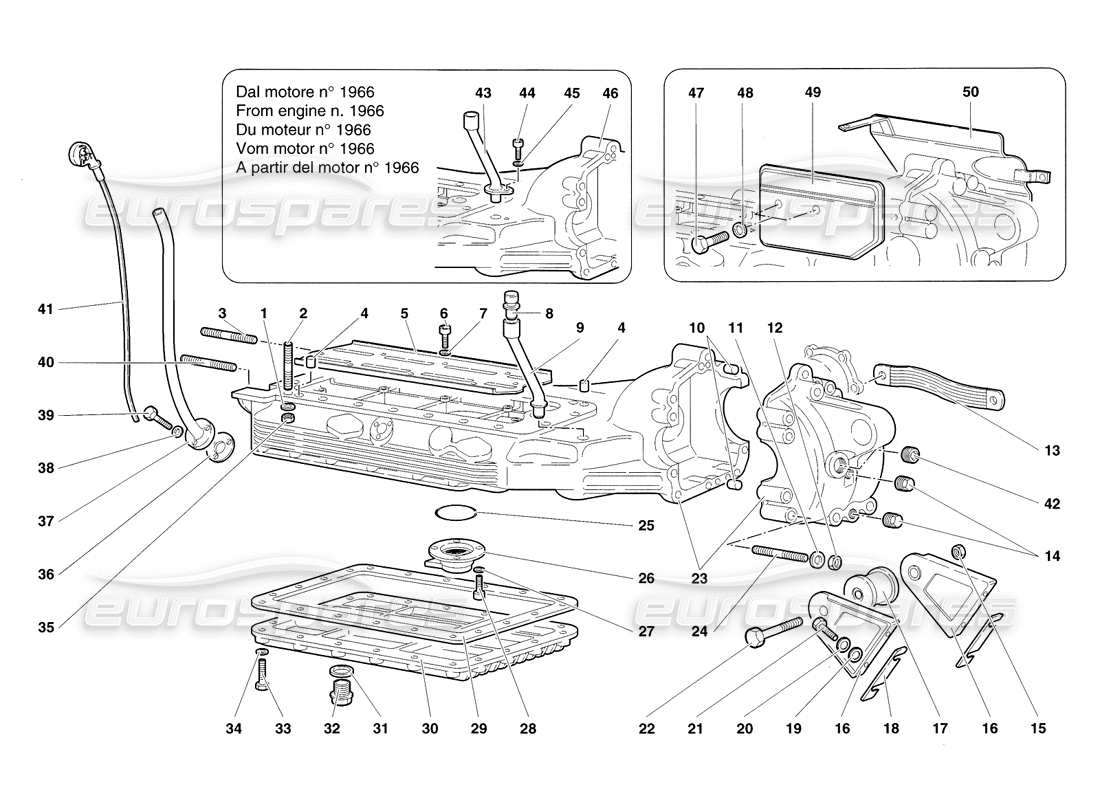

Lamborghini Diablo SV (1998) Oil Sump Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 008410810
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 002
        MPN: 008300806
        STUD
        PRIGIONIERO 70 MM
        from £3.48
        from £3.48
        # 002
        MPN: 008300897
        STUD
        PRIGIONIERO 106 MM
        from £9.37
        from £9.37
        # 002
        MPN: WHT003031
        STUD
        PRIGIONIERO 28 MM
        from £5.85
        from £5.85
        This part replaces part number 008300839
        # 003
        MPN: WHT003028
        STUD
        PRIGIONIERO
        from £12.54
        from £12.54
        # 004
        MPN: 008850806
        DOWEL
        GRANO
        Supersession
        Supersession
        # 005
        MPN: 001827775
        PLATE
        PARATIA ANTISBATTIMENTO
        from £53.81
        from £53.81
        # 006
        MPN: 008700644
        SCREW
        VITE
        Supersession
        Supersession
        # 007
        MPN: 008410602
        WASHER
        RONDELLA
        from £26.01
        from £26.01
        # 008
        MPN: 0B9507141
        VENT PIPE
        SFIATO OLIO
        from £41.85
        from £41.85
        # 009
        MPN: 002334402
        PIPE
        Tubo
        from £171.63
        from £171.63
        # 010
        MPN: 008850806
        DOWEL
        GRANO
        Supersession
        Supersession
        # 011
        MPN: WHT000768
        WASHER
        from £1.17
        from £1.17
        This part replaces part number 008410806 - and 1 more. Click to view details
        # 012
        MPN: N10155210
        NUT
        DADO
        from £1.21
        from £1.21
        This part replaces part number 008201001
        # 013
        MPN: 001604328
        GROUND CABLE
        CAVO MASSA
        Supersession
        Supersession
        # 014
        MPN: 086301141A
        MAGNETIC PLUG
        TAPPO MAGNETICO
        from £22.53
        from £22.53
        This part replaces part number TN-03165
        # 015
        MPN: 008201416
        NUT
        DADO
        from £1.21
        from £1.21
        # 016
        MPN: 004126765
        BRACKET
        STAFFA
        from £172.46
        from £172.46
        # 017
        MPN: 0B9501144
        SUPPORT MOUNT
        from £115.28
        from £115.28
        This part replaces part number 008921408 - and 1 more. Click to view details
        # 017
        MPN: 0B9501144
        SUPPORT MOUNT
        from £115.28
        from £115.28
        This part replaces part number 008921408 - and 1 more. Click to view details
        # 018
        MPN: 004126766
        SHIM
        SPESSORE Dl REGISTRO
        # 019
        MPN: 008400801
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 020
        MPN: 008410806
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 021
        MPN: 008100862
        SCREW
        VITE
        from £0.53
        from £0.53
        # 022
        MPN: 008101430
        SCREW
        VITE
        from £2.20
        from £2.20
        # 023
        MPN: 450132001
        oil sump
        MACHINED OIL PAN
        from £5,791.33
        from £5,791.33
        # 024
        MPN: 008301033
        STUD
        PRIGIONIERO
        from £22.97
        from £22.97
        # 025
        MPN: WHT002222
        SEAL
        from £7.96
        from £7.96
        # 026
        MPN: 001832017
        FLANGE
        FLANGIA
        from £206.04
        from £206.04
        # 027
        MPN: 008410602
        WASHER
        RONDELLA
        from £27.52
        from £27.52
        # 028
        MPN: 008700644
        SCREW
        VITE
        Supersession
        Supersession
        # 029
        MPN: 001826521
        GASKET
        Guarnizione
        from £78.27
        from £78.27
        # 030
        MPN: 001831852
        LOWER COVER
        COPERCHIO INFERIORE
        from £312.14
        from £312.14
        # 031
        MPN: 008402202
        WASHER
        RONDELLA
        from £2.69
        from £2.69
        # 032
        MPN: 008932211

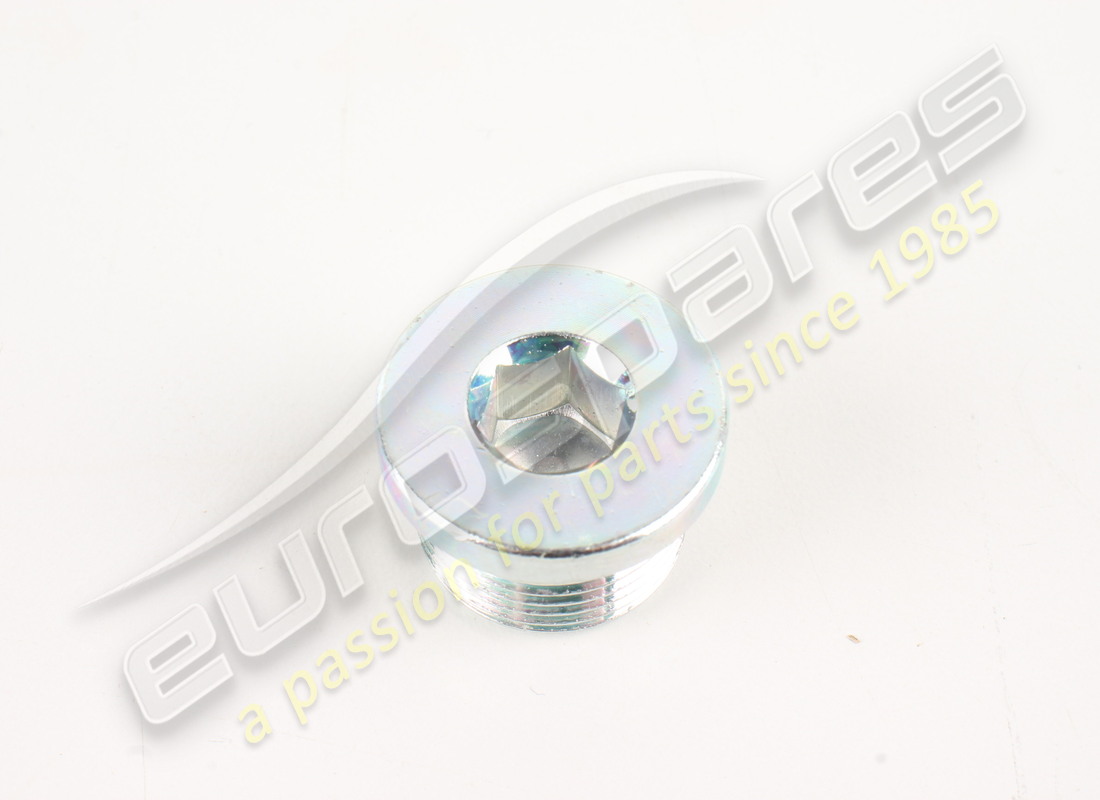

        DRAIN PLUG
        TAPPO Dl SCARICO
        from £14.53
        from £14.53
        This part replaces part number 008932206
        # 033
        MPN: 008100603
        SCREW
        VITE
        from £0.84
        from £0.84
        # 034
        MPN: 008410602
        WASHER
        RONDELLA
        from £25.25
        from £25.25
        # 035
        MPN: N01100845
        NUT
        DADO
        from £1.19
        from £1.19
        This part replaces part number 008200801 - and 2 more. Click to view details
        # 036
        MPN: 001830006
        GASKET
        Guarnizione
        from £4.67
        from £4.67
        # 037
        MPN: 001837263
        PIPE
        TUBO PORTAASTA
        from £65.34
        from £65.34
        # 038
        MPN: 008410602
        WASHER
        RONDELLA
        from £27.90
        from £27.90
        # 039
        MPN: 008100601
        SCREW
        VITE
        Supersession
        Supersession
        # 040
        MPN: 008300808
        STUD
        use : WHT003027
        Supersession
        Supersession
        # 041
        MPN: 001837261
        LEVEL ROD
        ASTALIVELLO
        from £195.41
        from £195.41
        # 042
        MPN: 008932602
        PLUG
        TAPPO
        from £2.20
        from £2.20
        # 043
        MPN: 0023001636
        PIPE
        Tubo
        from £55.23
        from £55.23
        # 044
        MPN: 008700547
        SCREW
        VITE
        from £0.51
        from £0.51
        # 045
        MPN: 008410503
        WASHER
        RONDELLA
        Supersession
        Supersession
        # 046
        MPN: 0018001707
        oil sump
        COPPA OLIO
        # 047
        MPN: 008100830
        SCREW
        (Valid for USA - November 1998) VITE
        from £0.53
        from £0.53
        # 047
        MPN: 008100830
        SCREW
        (Valid for CANADA - November 1998) VITE
        from £0.53
        from £0.53
        # 048
        MPN: 008400801
        WASHER
        (Valid for USA - November 1998) RONDELLA
        Supersession
        Supersession
        # 048
        MPN: 008400801
        WASHER
        (Valid for CANADA - November 1998) RONDELLA
        Supersession
        Supersession
        # 049
        MPN: 001836047
        PLATE
        (Valid for USA - November 1998) PARATIA
        from £252.88
        from £252.88
        # 049
        MPN: 001836047
        PLATE
        (Valid for CANADA - November 1998) PARATIA
        from £252.88
        from £252.88
        # 050
        MPN: 001836048
        PLATE
        (Valid for USA - November 1998) PARATIA
        from £252.88
        from £252.88
        # 050
        MPN: 001836048
        PLATE
        (Valid for CANADA - November 1998) PARATIA
        from £252.88
        from £252.88
