24.03.00 - GEARBOX
Lamborghini Diablo SV (1998) Gearbox Parts Diagram

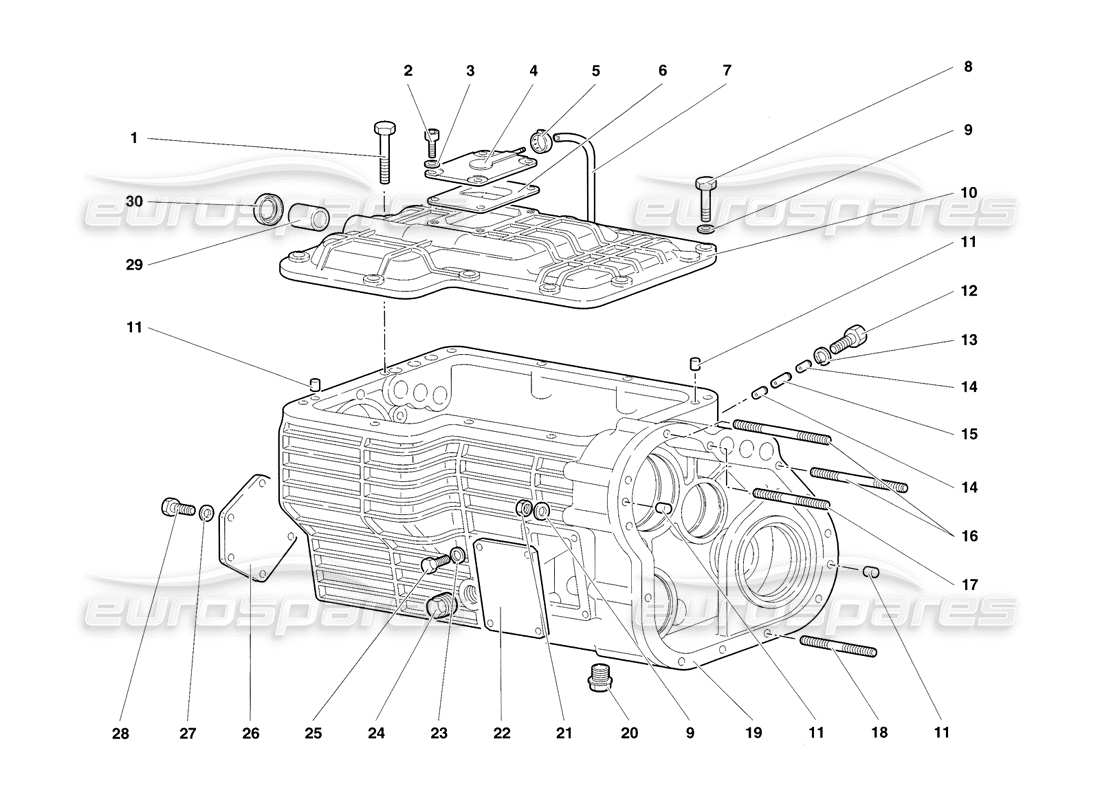

View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008100807
SCREW
VITE
from £0.53
from £0.53
# 002
MPN: 008700644
SCREW
VITE
Supersession
Supersession
# 003
MPN: 008410602
WASHER
RONDELLA
from £27.52
from £27.52
# 004
MPN: 002428645
COVER
COPERCHIO SFIATO
from £80.02
from £80.02
# 005
MPN: 008830128
STRAP
FASCETTA
Supersession
Supersession
# 006
MPN: 002428643
PAN
VASCHETTA
from £13.06
from £13.06
# 007
MPN: 002428649
VENT PIPE
TUBO Dl SFIATO
# 008
MPN: 008100821
SCREW
VITE
Supersession
Supersession
# 009
MPN: 008410810
WASHER
RONDELLA
Supersession
Supersession
# 010
MPN: 002424900
COVER
COPERCHIO
from £347.40
from £347.40
# 011
MPN: 008850806
DOWEL
GRAND
Supersession
Supersession
# 012
MPN: N01029315
SCREW
VITE
from £0.85
from £0.85
# 013
MPN: 008400802
WASHER
RONDELLA
from £1.03
from £1.03
# 014
MPN: 002425223
ROD
PUNTALINO
from £17.62
from £17.62
# 015
MPN: 002425224
ROD
PUNTALINO
from £18.12
from £18.12
# 016
MPN: 008300895
STUD
PRIGIONIERO
from £5.06
from £5.06
# 017
MPN: 008300897
STUD
PRIGIONIERO
from £9.37
from £9.37
# 018
MPN: 008300916
STUD
PRIGIONIERO
from £3.24
from £3.24
# 019
MPN: 002430746
GEAR BOX CASE
SCATOLA CAMBIO
from £2,147.40
from £2,147.40
# 020
MPN: 086301141A
MAGNETIC PLUG
TAPPO MAGNETICO
from £22.53
from £22.53
This part replaces part number TN-03165
# 021
MPN: 008200801
NUT
DADO
Supersession
Supersession
# 022
MPN: 002435931
COVER
COPERCHIO
from £20.69
from £20.69
# 023
MPN: 008410602
WASHER
RONDELLA
from £27.52
from £27.52
# 024
MPN: 086301141A
MAGNETIC PLUG
TAPPO MAGNETICO
from £22.53
from £22.53
This part replaces part number TN-03165
# 025
MPN: 008100861
SCREW
VITE
from £1.84
from £1.84
# 026
MPN: 002425638
COVER
COPERCHIO
from £39.93
from £39.93
# 027
MPN: 008410602
WASHER
RONDELLA
from £26.77
from £26.77
# 028
MPN: 008100601
SCREW
VITE
Supersession
Supersession
# 029
MPN: 008801612
BUSHING
BOCCOLA
Supersession
Supersession
# 030
MPN: 008611605
SEAL
ANELLOTENUTA
from £10.00
from £10.00
