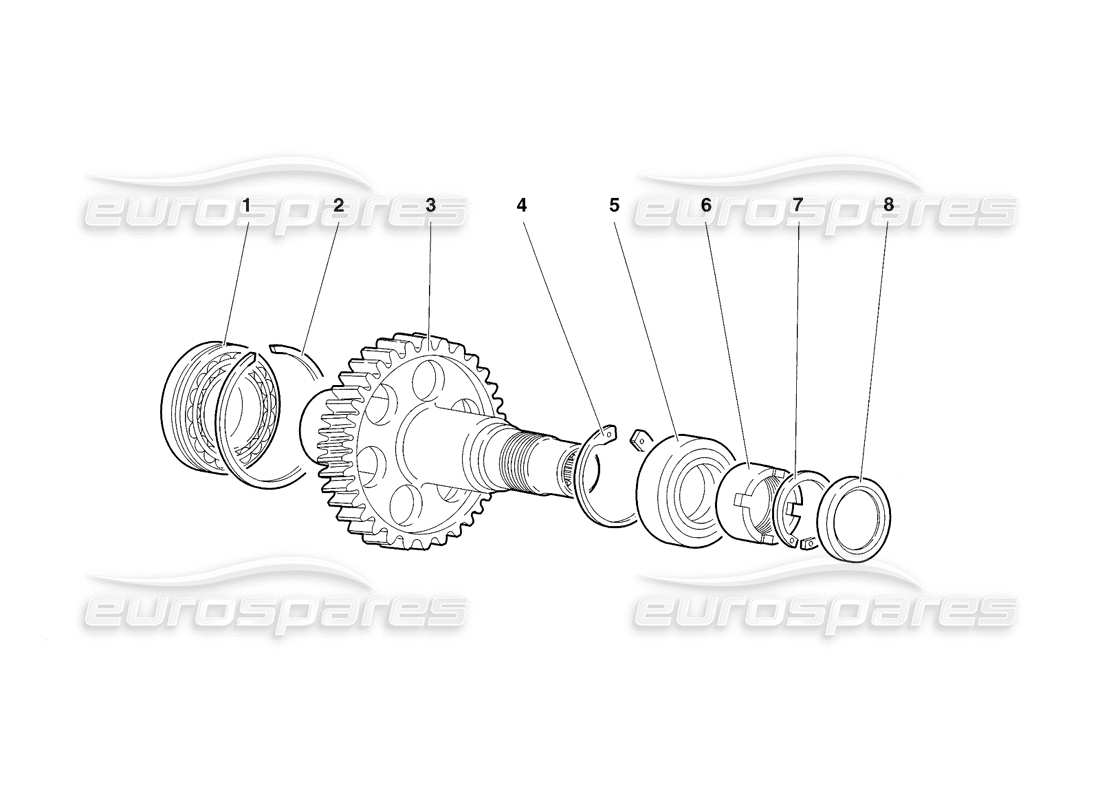

24.07.00 - Gear Transmission End
Lamborghini Diablo SV (1998) Gear Transmission End Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008525013
BEARING
CUSCINETTO
from £173.80
from £173.80
# 002
MPN: 008589001
RETAINER RING
ANELLO RITEGNO
from £2.16
from £2.16
# 003
MPN: 002437437
RING GEAR
CORONA DENTATA
from £629.30
from £629.30
# 004
MPN: 008578001
RETAINER RING
ANELLO RITEGNO
from £3.72
from £3.72
# 005
MPN: 008514001
BEARING
CUSCINETTO
from £92.03
from £92.03
# 006
MPN: 008254004
PLUG
GHIERA
from £88.72
from £88.72
# 007
MPN: 008575201
RETAINER RING
ANELLO RITEGNO
from £0.79
from £0.79
# 008
MPN: 086311819
SEAL
from £33.12
from £33.12
This part replaces part number 008613601
