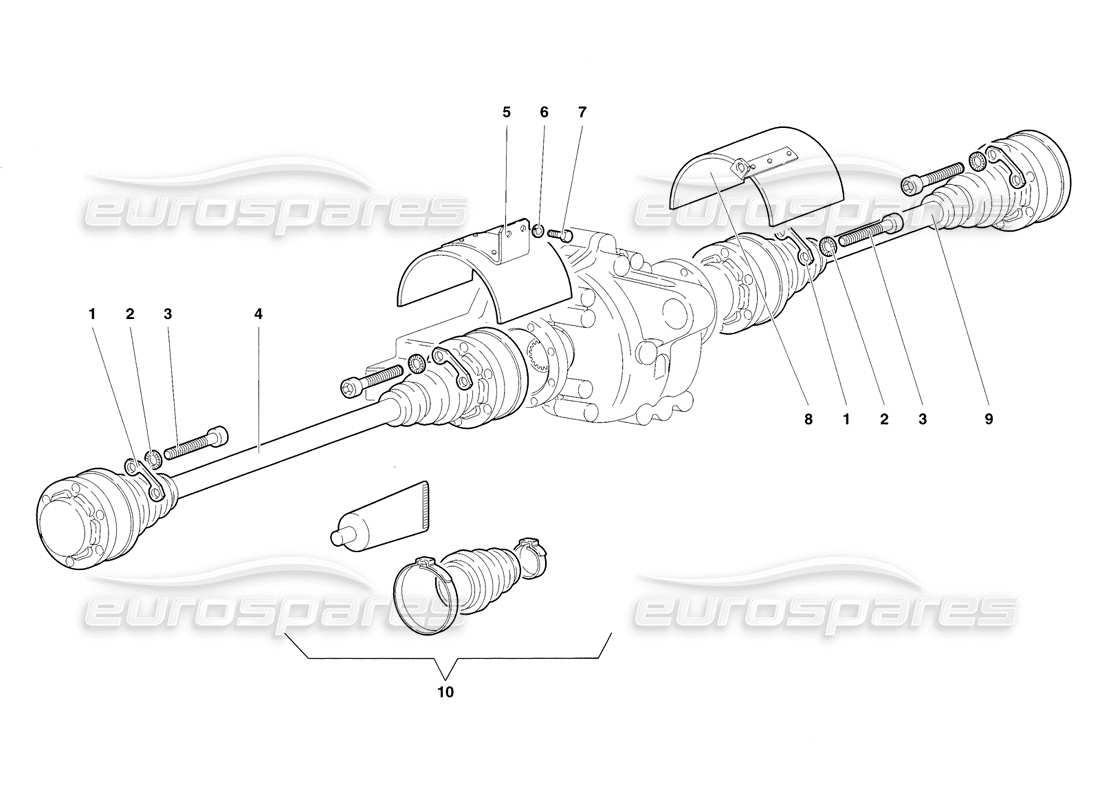

25.01.00 - Driveshafts and Propeller Shaft
Lamborghini Diablo SV (1998) Driveshafts and Propeller Shaft Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 002533290
PLATE
Piastrina
from £8.13
from £8.13
# 002
MPN: 008411011
WASHER
RONDELLA
from £0.50
from £0.50
# 003
MPN: 008701008
SCREW
VITE
Supersession
Supersession
# 004
MPN: 002534286
LEFT HALF SHAFT
SEMIASSE POST.SX
from £2,474.89
from £2,474.89
# 005
MPN: 002530901
LEFT SHIELD
PROTEZIONE SX
from £114.42
from £114.42
# 006
MPN: 008410602
WASHER
RONDELLA
from £28.28
from £28.28
# 007
MPN: 008700644
SCREW
VITE
Supersession
Supersession
# 008
MPN: 002530896
RIGHT SHIELD
PROTEZIONE DX
from £393.41
from £393.41
# 009
MPN: 002534285
RIGHT HALF SHAFT
REAR RIGHT HALF SHAFT
from £2,474.89
from £2,474.89
# 010
MPN: 002537315
BOOT KIT
KITCUFFIA
from £88.31
from £88.31
