3132.01.00 - Brake System

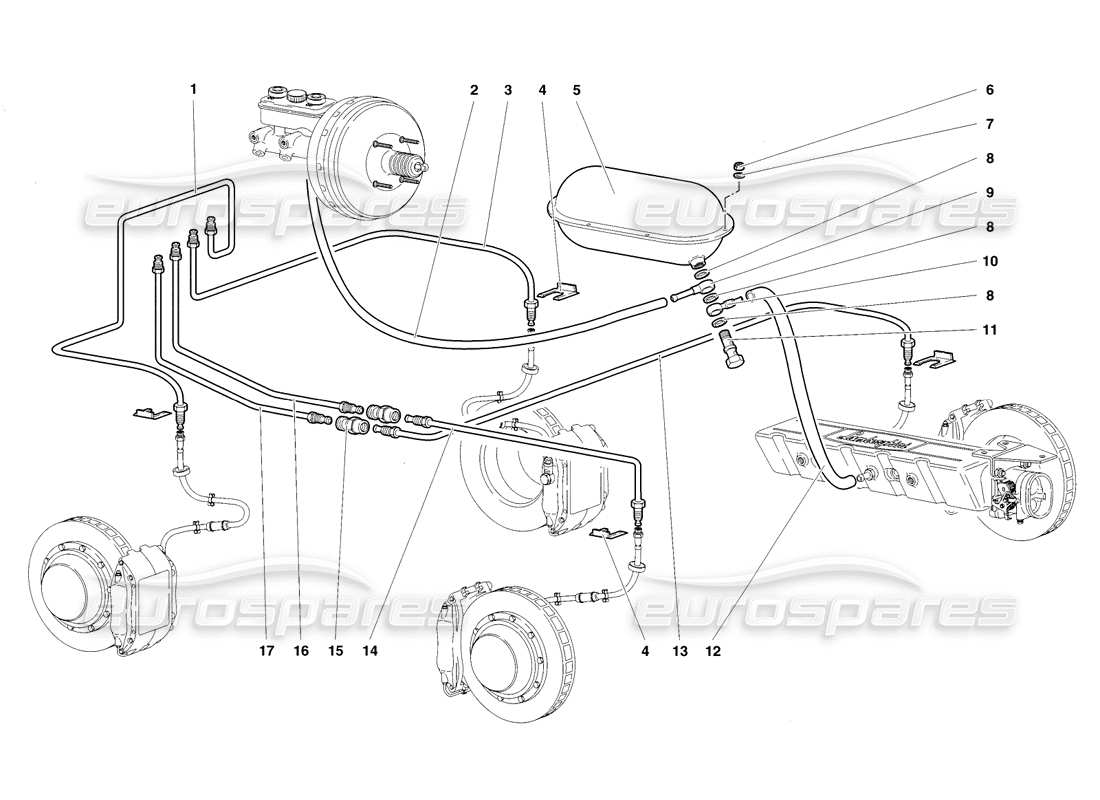

Lamborghini Diablo SV (1998) Brake System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0031001095
PIPE
Tubo
from £17.99
from £17.99
# 002
MPN: 003226068
FLEX. HOSE
TUBO FLESSIBILE
from £117.32
from £117.32
# 002
MPN: 003232549
FLEX. HOSE
(Valid for GB - November 1998) TUBO FLESSIBILE
from £67.96
from £67.96
# 003
MPN: 0031001092
PIPE
Tubo
from £79.20
from £79.20
# 004
MPN: 003130840
PLATE
Piastrina
from £16.77
from £16.77
# 005
MPN: 003204974
VACUM TANK
SERBATOIOADEPRES.
from £303.49
from £303.49
# 006
MPN: N0211963
NUT
DADO
from £0.51
from £0.51
# 007
MPN: WHT001187
WASHER
RONDELLA
from £0.53
from £0.53
This part replaces part number 008400502
# 008
MPN: 003101513
WASHER
RONDELLA
from £0.97
from £0.97
# 009
MPN: 003230031
CONNECTION
RACCORDO
from £21.81
from £21.81
# 010
MPN: 003230030
VALVE
VALVOLA Dl NON RITORNO
from £16.80
from £16.80
# 011
MPN: 003101486
SCREW
Vite forata
from £20.23
from £20.23
# 012
MPN: 410611937
FLEX. HOSE
TUBO FLESSIBILE
from £52.14
from £52.14
# 013
MPN: 0032001099
PIPE
Tubo
from £162.09
from £162.09
# 014
MPN: 0032001103
PIPE
Tubo
from £118.89
from £118.89
# 015
MPN: 0032001595
CONNECTION
RACCORDO
# 016
MPN: 0032001102
PIPE
Tubo
from £146.57
from £146.57
# 017
MPN: 0032001098
PIPE
Tubo
