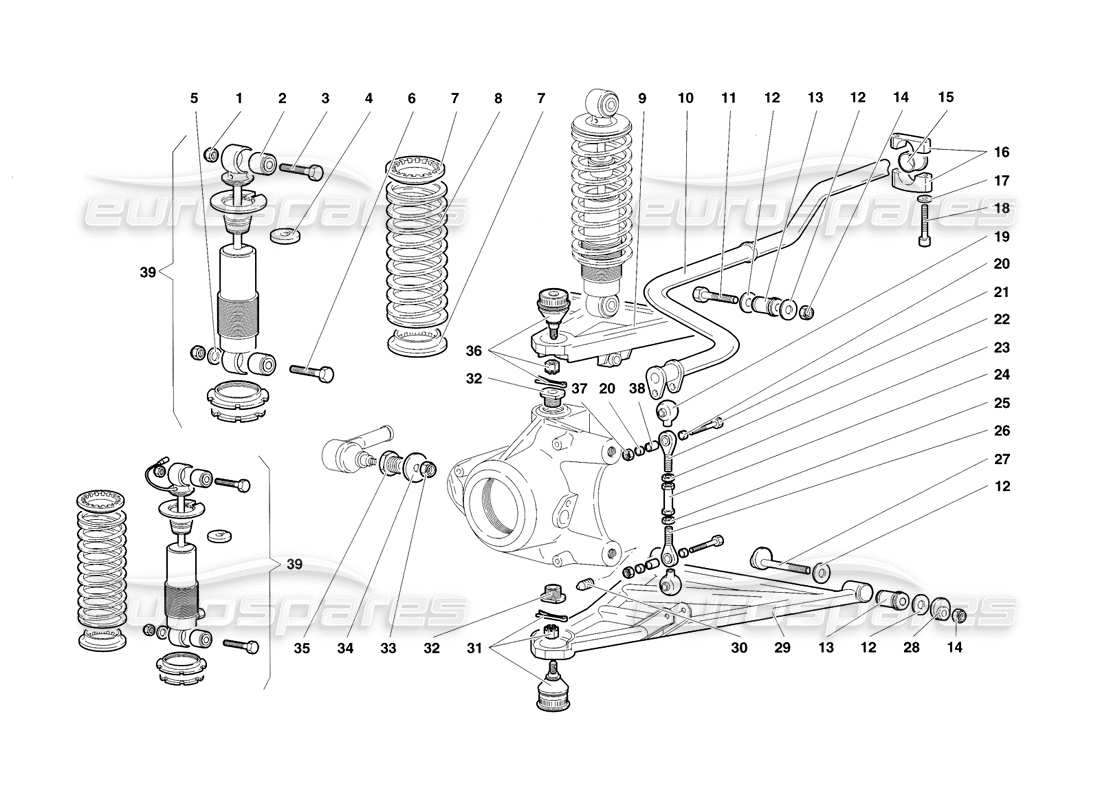

51.02.00 - Front Suspension
Lamborghini Diablo SV (1998) Front Suspension Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: WHT003355
NUT
DADO
from £13.28
from £13.28
# 002
MPN: 410512383
RESILIENT BUSHING
from £356.24
from £356.24
# 003
MPN: 008101269
SCREW
VITE
Supersession
Supersession
# 004
MPN: 005134315
SPACER
DISTANZIALE
from £22.64
from £22.64
# 005
MPN: 008401234
WASHER
RONDELLA
Supersession
Supersession
# 006
MPN: 005133229
SCREW
VITE
from £4.78
from £4.78
# 007
MPN: 410512385
RUBBER RING
from £32.34
from £32.34
# 008
MPN: 005133618
SPRING
MOLLA
from £124.79
from £124.79
# 009
MPN: 005133344
ARM
BRACCIO SUPERIORE DX
from £518.36
from £518.36
# 009
MPN: 005133345
ARM
BRACCIO SUPERIORE SX
from £544.51
from £544.51
# 010
MPN: 005134057
TORSION BAR
BARRATORSIONE
from £279.42
from £279.42
# 011
MPN: 008101269
SCREW
VITE
Supersession
Supersession
# 012
MPN: 005133488
SPACER
DISTANZIALE 1,5 MM
Supersession
Supersession
# 012
MPN: 410407295
SPACER
DISTANZIALE 1 MM
from £2.73
from £2.73
# 012
MPN: 410407295B
SPACER
DISTANZIALE 2 MM
from £2.39
from £2.39
# 012
MPN: 410407295C
SPACER
DISTANZIALE 2,5 MM
from £2.64
from £2.64
# 012
MPN: 410407295D
SPACER
DISTANZIALE 3 MM
from £17.99
from £17.99
# 013
MPN: 008921206
RESILIENT BUSHING
BOCCOLA ELASTICA
from £29.93
from £29.93
# 014
MPN: WHT003355
NUT
DADO
from £13.28
from £13.28
# 015
MPN: 005238302
BUSHING
BOCCOLA
from £88.31
from £88.31
This part replaces part number 005230804
# 016
MPN: 005230258
RETAINER
CAVALLOTTO
from £195.68
from £195.68
# 017
MPN: 008410602
WASHER
RONDELLA
from £27.52
from £27.52
# 018
MPN: WHT002960
SCREW
VITE
from £5.31
from £5.31
# 019
MPN: 005109714
BOOT
CUFFIA
from £16.55
from £16.55
# 020
MPN: 005227297
BUSHING
BOCCOLA
from £18.21
from £18.21
# 021
MPN: 008100807
SCREW
VITE
from £0.51
from £0.51
# 022
MPN: 417801931A
BALL JOINT
GIUNTO SFERICO
from £160.39
from £160.39
This part replaces part number 005206963 - and 1 more. Click to view details
# 023
MPN: 008201035
NUT
DADO
from £0.91
from £0.91
# 024
MPN: 005209770
TIE ROD
TIRANTE
from £154.04
from £154.04
# 025
MPN: 008201034
NUT
DADO
Supersession
Supersession
# 026
MPN: 005227295
BALL JOINT
GIUNTO SFERICO
from £72.47
from £72.47
# 027
MPN: 410407127A
BOLT
SCREW WITH ECCENTRIC
from £608.71
from £608.71
This part replaces part number 005231923
# 028
MPN: 410407127A
BOLT
ECCENTRICO
from £608.71
from £608.71
This part replaces part number 005231923
# 029
MPN: 005133038
ARM
BRACCIO INFERIORE DX
from £734.08
from £734.08
# 029
MPN: 005133039
ARM
BRACCIO INFERIORE SX
from £734.08
from £734.08
# 030
MPN: 008700606
SCREW
VITE
from £0.50
from £0.50
SCREW EI M6X1X10 12KD Genuine Lamborghini - New (other) In stock
(Valid for June 1992 version) GRAND (dalla 12678)
(Valid for June 1992 version) GRAND (dalla 12678)
# 031
MPN: 410407361B
COUPLING
TESTAASNODO
from £254.24
from £254.24
This part replaces part number 410407361
# 032
MPN: 410407171C
BUSHING
BUSSOLA
from £407.25
from £407.25
This part replaces part number 410407171
# 033
MPN: 008201003
NUT
DADO
from £2.18
from £2.18
# 034
MPN: WHT000919
WASHER
from £9.08
from £9.08
# 035
MPN: 0051001030
BUSHING
BUSSOLA
# 036
MPN: 410407365
COUPLING
TESTAASNODO
from £127.12
from £127.12
# 037
MPN: 008200804
NUT
DADO
from £0.71
from £0.71
# 038
MPN: 005227298
BUSHING
BOCCOLA
from £11.08
from £11.08
# 039
MPN: 005129802
SHOCK ABSORBER
AMMORTIZZATORE
from £653.67
from £653.67
# 039
MPN: 005133241
SHOCK ABSORBER
(Comfort pack) (LIFTING SYSTEM) AMMORTIZZATORE
from £2,585.28
from £2,585.28
