60.01.00 - dashboard instruments

Lamborghini Diablo SV (1998) Dashboard Instruments Parts Diagram

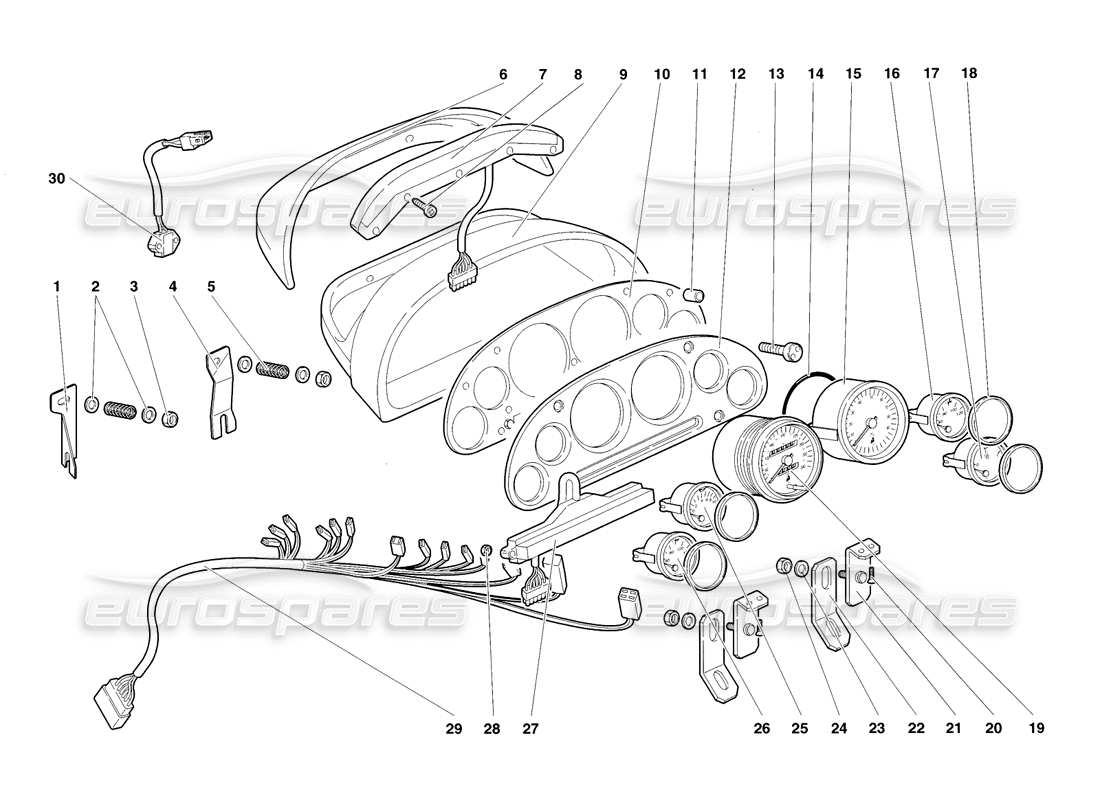

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009414415
LEFT BRACKET
STAFFA SX
from £43.53
from £43.53
# 001
MPN: 009414422
LEFT BRACKET
(Valid for GB - November 1998) STAFFA SX
from £30.68
from £30.68
# 002
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 003
MPN: N01100637
NUT
DADO
from £0.53
from £0.53
This part replaces part number 008200604
# 004
MPN: 009414414
RIGHT BRACKET
STAFFA DX
from £27.82
from £27.82
# 004
MPN: 009414435
RIGHT BRACKET
(Valid for GB - November 1998) STAFFA DX
from £21.27
from £21.27
# 005
MPN: 009414416
SPRING
MOLLA
from £11.77
from £11.77
# 006
MPN: 009414427
REAR DASHBOARD P.
CRUSCOTTO POST.
from £100.73
from £100.73
# 007
MPN: 006033214
WARNING LIGHTS
GRUPPOSPIE
from £252.88
from £252.88
# 008
MPN: 008700449
SCREW
VITE
from £1.87
from £1.87
# 009
MPN: 009414437
FRONT DASHBOARD P.
CRUSCOTTO ANT.
from £371.44
from £371.44
# 010
MPN: 009414428
INSTRUMENT PANEL
PLANCIA PORTASTRUMENTI
from £104.19
from £104.19
# 011
MPN: 009414407
SPACER
DISTANZIALE
from £20.69
from £20.69
# 012
MPN: 009414429
PLATE
PIASTRA
from £182.24
from £182.24
# 013
MPN: 009414420
SCREW
VITE
from £20.65
from £20.65
# 014
MPN: 008609802
RUBBER RING
ANELLO GOMMA
from £0.54
from £0.54
# 015
MPN: 006029656
REVOLUTION COUNT.
CONTAGIRI
from £999.07
from £999.07
# 016
MPN: 006029660
WATER TEMP. GAUGE
INDICATORE TEMPERATURAACQUA
from £251.22
from £251.22
# 017
MPN: 006029657
FUEL LEVEL GAUGE
INDICATORE LIVELLO CARBURANTE
from £169.56
from £169.56
# 018
MPN: 006030886
SPACER
DISTANZIALE
from £31.01
from £31.01
# 019
MPN: 006029655
SPEEDOMETER - KM
CONTACHILOMETRI
from £1,146.53
from £1,146.53
# 019
MPN: 006030773
SPEEDOMETER-MILES
(Valid for U.K & USA model)
from £835.25
from £835.25
# 019
MPN: 006030773
SPEEDOMETER-MILES
(Valid for U.K & USA model)
from £835.25
from £835.25
# 020
MPN: 008700457
SCREW
VITE
from £0.53
from £0.53
# 021
MPN: 009414433
BRACKET
STAFFA
from £39.72
from £39.72
# 022
MPN: 009414432
BRACKET
STAFFA
from £20.36
from £20.36
# 023
MPN: 008400509
WASHER
RONDELLA
from £0.53
from £0.53
# 024
MPN: 008200501
NUT
DADO
Supersession
Supersession
# 025
MPN: 006029658
OIL PRESSURE GAUGE
INDICATORE PRESSIONE OLIO
from £138.17
from £138.17
# 026
MPN: 006029659
OIL TEMPERA. GAUGE
INDICATORE TEMPERATURA OLIO
from £397.15
from £397.15
# 027
MPN: 006033213
WARNING LIGHTS
GRUPPOSPIE
from £364.89
from £364.89
# 028
MPN: WHT002959
NUT
DADO
from £0.56
from £0.56
# 029
MPN: 006133198
ELECT CABLE
DASHBOARD WIRING
from £115.00
from £115.00
# 030
MPN: 004526662
TEMPERATURE SENS.
SENSORE TEMPERATURA ESTERNA
from £135.31
from £135.31
