61.04.00 - electrical system

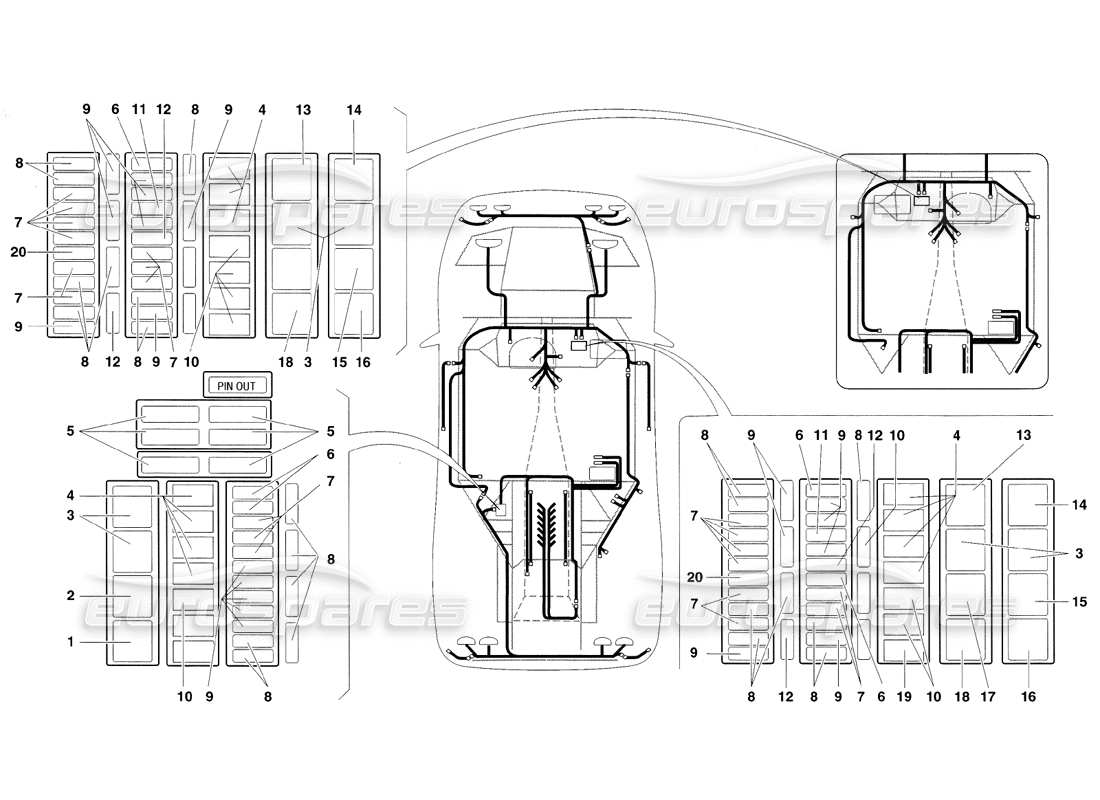

Lamborghini Diablo SV (1998) Electrical System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 006311154
RELAY
RELE BOSCH 332019151
from £30.30
from £30.30
# 002
MPN: 006311155
RELAY
RELE BOSCH 332015006
from £36.37
from £36.37
# 003
MPN: 006038007
RELAY
RELE ITALMEC510
from £7.71
from £7.71
# 004
MPN: 006138214
RELAY
RELE SIEMENS A302
from £8.00
from £8.00
# 005
MPN: 006138332
FUSE
FUSE 60A
from £2.20
from £2.20
# 006
MPN: 001638098
FUSE
FUSE 20A
from £0.53
from £0.53
# 007
MPN: 001638097
FUSE
FUSE 15A
from £0.50
from £0.50
# 007
MPN: 001638097
FUSE
(Valid for GB - November 1998) FUSIBILE 15A
from £0.50
from £0.50
# 008
MPN: 001638094
FUSE
FUSE 5A
from £0.49
from £0.49
# 009
MPN: 001638096
FUSE
FUSE 10A
from £0.50
from £0.50
# 009
MPN: 001638096
FUSE
(Valid for GB - November 1998) FUSIBILE 10A
from £0.49
from £0.49
# 010
MPN: 006038006
RELAY
RELE SIEMENS A303
from £12.03
from £12.03
# 010
MPN: 006038006
RELAY
(Valid for GB - November 1998) RELE SIEMENS A303
from £12.03
from £12.03
# 011
MPN: 001638099
FUSE
FUSE 25A
from £0.54
from £0.54
# 012
MPN: 001638121
FUSE
FUSE 30A
from £0.53
from £0.53
# 013
MPN: 005937770
RELAY
RELE COBOAV1 80024
from £22.48
from £22.48
# 014
MPN: 006311154
RELAY
RELE BOSCH 33201 91 51
from £30.30
from £30.30
# 015
MPN: 006138003
RELAY
RELE ITALMEC 063
from £20.15
from £20.15
# 016
MPN: 006038008
DIODES ASSEMBLY
DIODE GROUP N. 45410
from £22.89
from £22.89
# 017
MPN: 006137308
DIODE
DIODO D.R.L.
# 018
MPN: 006036297
RELAY
RELE ITALMEC 064
from £25.22
from £25.22
# 019
MPN: 006138104
RELAY
CONN. PONTATO GSM
from £4.78
from £4.78
# 020
MPN: 001638371
FUSE
FUSE 3A
from £0.54
from £0.54
