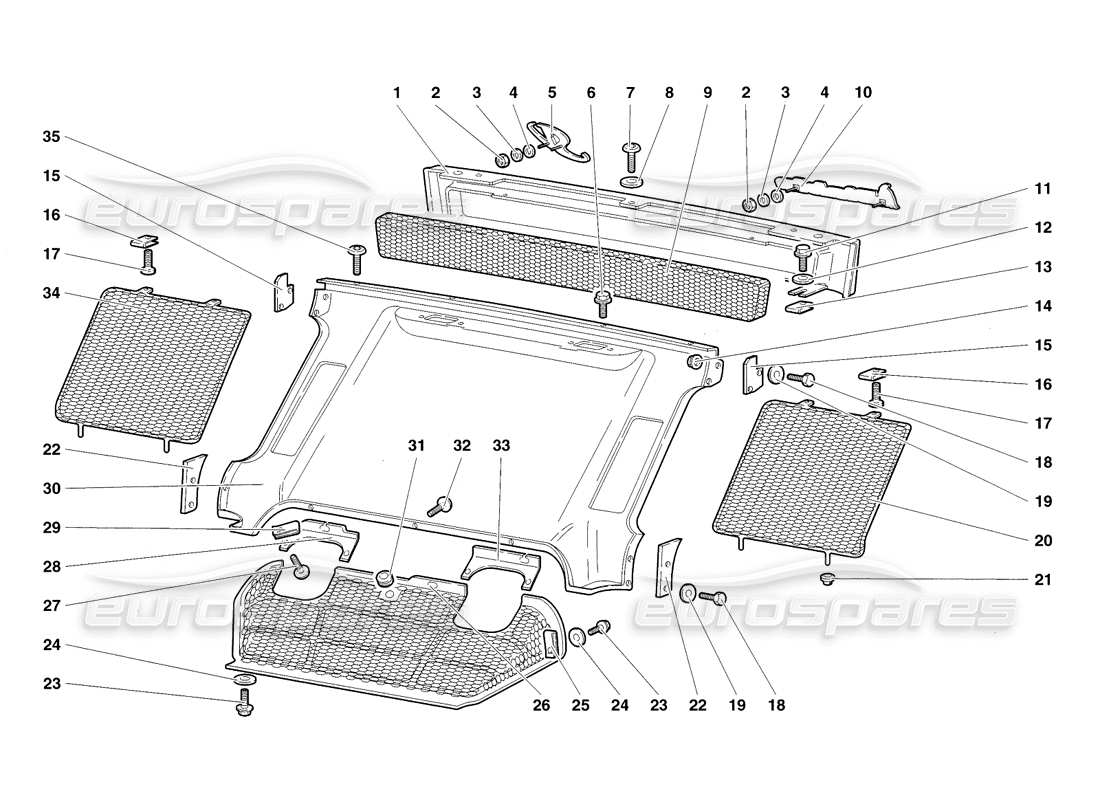

66.01.00 - Rear Body Elements
Lamborghini Diablo SV (1998) Rear Body Elements Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
-
You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
001
MPN:
009410218
Frame
CORNICE
from
£368.46
from
£368.46
#
002
MPN:
008200302
NUT
DADO
from
£0.53
from
£0.53
#
003
MPN:
008410307
WASHER
RONDELLA
from
£1.03
from
£1.03
#
004
MPN:
008400303
WASHER
RONDELLA
from
£0.53
from
£0.53
#

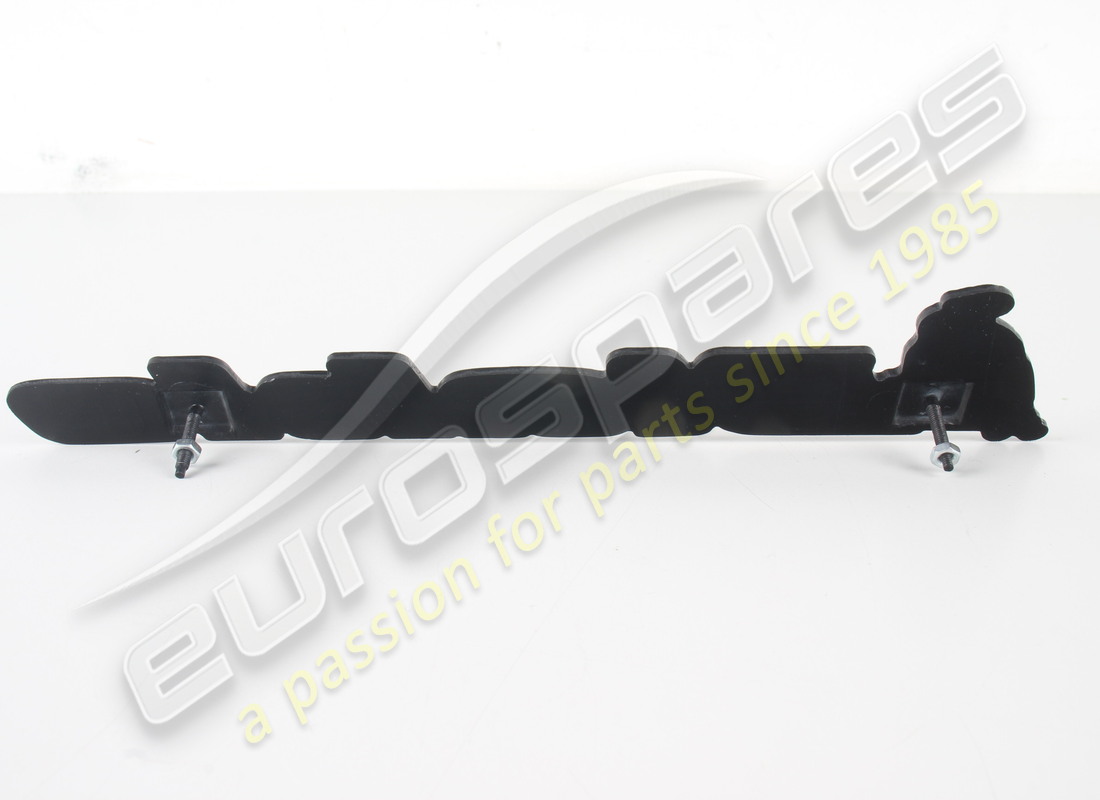

005
MPN:
009466142
ORNAMENT
FREGIOSV
from
£130.57
from
£130.57
#
006
MPN:
N10718801
SCREW
VITE
from
£0.59
from
£0.59
#
007
MPN:
008700685
SCREW
VITE
Supersession
Supersession
#
008
MPN:
008400629
WASHER
RONDELLA
from
£0.93
from
£0.93
#
009
MPN:
009430171
NET
RETE
from
£384.77
from
£384.77
#
010
MPN:
009466141
ORNAMENT
FREGIO DIABLO
from
£109.82
from
£109.82
#
011
MPN:
008700449
SCREW
VITE
from
£2.04
from
£2.04
#
012
MPN:
008400623
WASHER
RONDELLA
Supersession
Supersession
#
013
MPN:
N90834301
CLIP
from
£0.65
from
£0.65
#
014
MPN:
008200614
NUT
DADO
Supersession
Supersession
#
015
MPN:
009410205
SPACER
DISTANZIALE
from
£7.01
from
£7.01
#
016
MPN:
WHT000916A
CLIP
MOLLETTA
from
£9.30
from
£9.30
#
017
MPN:
008700437
SCREW
VITE
Supersession
Supersession
#
018
MPN:
008100621
SCREW
VITE
from
£1.11
from
£1.11
#
019
MPN:
WHT002961
WASHER
RONDELLA
from
£0.51
from
£0.51
This part replaces part number 008400607
#
020
MPN:
009430168
LEFT NET
RETE SX
from
£551.65
from
£551.65
#
021
MPN:
0066002463
BUSHING
BOCCOLA
from
£1.19
from
£1.19
#
022
MPN:
009410206
SPACER
DISTANZIALE
from
£28.15
from
£28.15
#
023
MPN:
008700449
SCREW
VITE
from
£1.93
from
£1.93
#
024
MPN:
008400623
WASHER
RONDELLA
Supersession
Supersession
#
025
MPN:
N90834301
CLIP
from
£0.65
from
£0.65
#
026
MPN:
009430174
GRILLE
GRIGLIA
from
£330.82
from
£330.82
#
027
MPN:
008700455
SCREW
VITE
Supersession
Supersession
#
028
MPN:
009430144
RIGHT PLATE
LAMIERINO DX
from
£26.74
from
£26.74
#
029
MPN:
008220402
CLIP
MOLLETTA
from
£2.78
from
£2.78
#
030
MPN:
009410200
REAR PANEL
REAR BODY ELEMENT
from
£695.00
from
£695.00
#
031
MPN:
008611202
RUBBER RING
ANELLO GOMMA
#
032
MPN:
008700685
SCREW
VITE
Supersession
Supersession
#
033
MPN:
009430146
LEFT PLATE
LAMIERINO SX
from
£26.74
from
£26.74
#
034
MPN:
009430167
RIGHT NET
RETE DX
from
£551.65
from
£551.65
#
035
MPN:
008700685
SCREW
VITE
Supersession
Supersession
