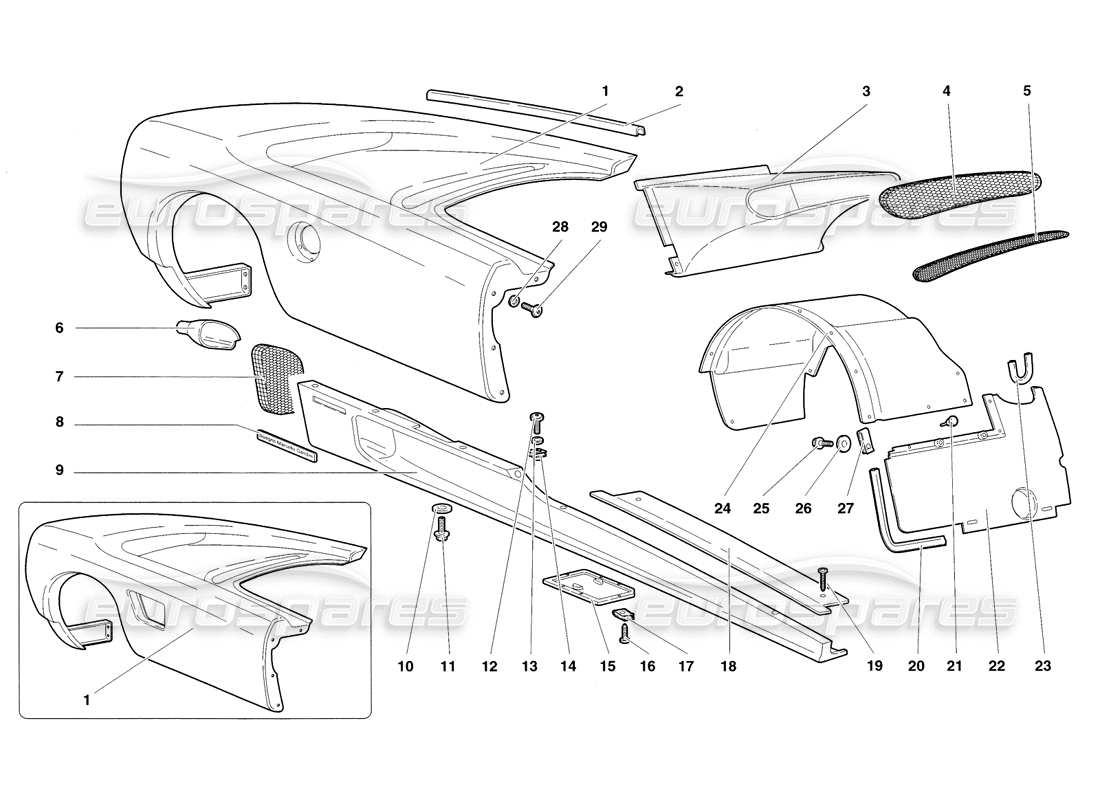

66.05.00 - Body Elements - Right Flank

Lamborghini Diablo SV (1998) Body Elements - Right Flank Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 009410011
REAR MUDG. FENDER
(RH S.) PARAFANGO POST.
from £6,251.48
from £6,251.48
This part replaces part number 009410008
# 001
MPN: 009410012
REAR MUDG. FENDER
(RH S.) (Valid for USA - November 1998) PARAFANGO POST.
from £6,251.48
from £6,251.48
# 001
MPN: 009410012
REAR MUDG. FENDER
(RH S.) (Valid for CANADA - November 1998) PARAFANGO POST.
from £6,251.48
from £6,251.48
# 002
MPN: 009490113
GASKET
(RH S.) GUARNIZIONE
from £15.35
from £15.35
This part replaces part number 009490110
# 003
MPN: 009453146
CONVEYOR
(RH S.) CONVOGLIATORE
from £522.35
from £522.35
# 004
MPN: 009430124
NET
(RH S.) RETE
from £297.44
from £297.44
# 005
MPN: 009430126
NET
(RH S.) RETE
from £343.26
from £343.26
# 006
MPN: 009453154
CONVEYOR
(RH S.) CONVOGLIATORE
from £151.32
from £151.32
# 007
MPN: 009430169
NET
(RH S.) RETE
from £54.07
from £54.07
# 008
MPN: 009466109
PLATE
(RH S.) TARGHETTA MARCELLO GANDINI
from £170.78
from £170.78
# 009
MPN: 009410304
PANEL
(RH S.) BRANCARDO
from £1,488.48
from £1,488.48
# 010
MPN: WHT002961
WASHER
(RH S.) RONDELLA
from £0.53
from £0.53
This part replaces part number 008400607
# 011
MPN: N10718801
SCREW
(RH S.) VITE
from £0.59
from £0.59
# 012
MPN: 008700685
SCREW
(RH S.) VITE
Supersession
Supersession
# 013
MPN: 008400624
WASHER
(RH S.) RONDELLA
from £2.68
from £2.68
# 014
MPN: N90327506
CLIP
(RH S.) MOLLETTA
from £0.58
from £0.58
# 015
MPN: 009410306
INSPECTION LID
(RH S.) SPORTELLO ISPEZIONE
from £42.46
from £42.46
# 016
MPN: WHT003114
SCREW
(RH S.) VITE
from £3.34
from £3.34
This part replaces part number WHT000766
# 017
MPN: WHT003424
CLIP
(RH S.) MOLLETTA
from £0.58
from £0.58
# 018
MPN: 009458606
DOORSILL MOULDING
(RH S.) BATTICALCAGNO
from £65.90
from £65.90
# 019
MPN: 008700334
SCREW
(RH S.) VITE
from £0.53
from £0.53
# 020
MPN: 009411511
GASKET
(RH S.) GUARNIZIONE
from £69.15
from £69.15
# 021
MPN: 009421408
RUBBER BUMPER
(RH S.) PARACOLPI GOMMA
from £13.06
from £13.06
# 022
MPN: 009411525
PROTECTION
(RH S.) PARASASSI
from £227.41
from £227.41
This part replaces part number 009411500
# 023
MPN: 009411513
GASKET
(RH S.) GUARNIZIONE
from £102.46
from £102.46
# 024
MPN: 009911500
REAR WHEELBOX
(RH S.) PASSARUOTA POST.
from £265.33
from £265.33
# 025
MPN: 008700449
SCREW
(RH S.) VITE
from £1.91
from £1.91
# 026
MPN: 008400508
WASHER
(RH S.) RONDELLA
Supersession
Supersession
# 027
MPN: WHT000916A
CLIP
(RH S.) MOLLETTA
from £9.30
from £9.30
# 028
MPN: 008400624
WASHER
(RH S.) RONDELLA
from £2.68
from £2.68
# 029
MPN: 008700685
SCREW
(RH S.) VITE
Supersession
Supersession
