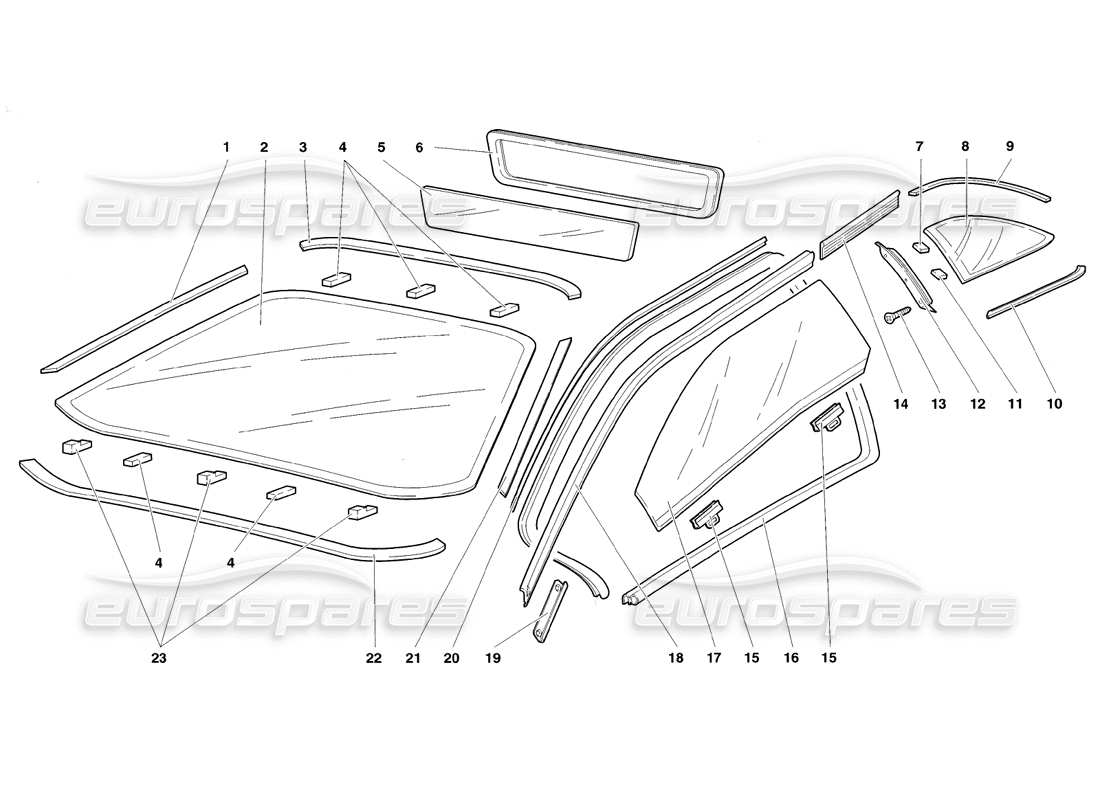

70.01.00 - Windows
Lamborghini Diablo SV (1998) Windows Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 009415204
RIGHT FRAME
CORNICE DX
from £232.59
from £232.59
# 002
MPN: 009415107
FRONT GLASS
CRISTALLO ANTERIORE
from £2,577.59
from £2,577.59
This part replaces part number 009415100
# 003
MPN: 009415200
top frame
CORNICE SUPERIORE
from £297.44
from £297.44
# 004
MPN: 410845235
SPACER
from £19.89
from £19.89
# 005
MPN: 009418100
REAR GLASS
CRISTALLO POSTERIORE
from £534.78
from £534.78
# 006
MPN: 009418103
GASKET
Guarnizione
from £380.57
from £380.57
# 007
MPN: 400845633
SPACER
DISTANZIALE
from £10.21
from £10.21
# 008
MPN: 0070004149
RIGHT HAND GLASS
CRISTALLO DX
from £1,811.43
from £1,811.43
# 008
MPN: 0070004150
LEFT HAND GLASS
CRISTALLO SX
from £6,454.55
from £6,454.55
# 009
MPN: 009417106
RIGHT FRAME
CORNICE DX
from £403.78
from £403.78
# 009
MPN: 009417107
LEFT FRAME
CORNICE SX
from £206.65
from £206.65
# 010
MPN: 009417102
RIGHT FRAME
CORNICE DX
from £174.53
from £174.53
# 010
MPN: 009417103
LEFT FRAME
CORNICE SX
from £131.42
from £131.42
# 011
MPN: 410845626
SPACER
from £7.18
from £7.18
# 012
MPN: 009417104
RIGHT FRAME
CORNICE DX
from £349.32
from £349.32
# 012
MPN: 009417105
LEFT FRAME
CORNICE SX
from £261.13
from £261.13
# 013
MPN: WHT003065
SCREW
VITE
from £0.85
from £0.85
# 014
MPN: 009421733
GASKET
Guarnizione
from £23.13
from £23.13
# 015
MPN: 009421608
BRACKET
STAFFA
from £76.70
from £76.70
# 016
MPN: 0072010205
RHS GASKET
from £449.38
from £449.38
# 016
MPN: 0072010206
LHS GASKET
Guarnizione
from £449.38
from £449.38
# 017
MPN: 0072004147
RIGHT DOOR GLASS
from £3,259.70
from £3,259.70
# 017
MPN: 0072004148
LEFT DOOR GLASS
from £2,455.58
from £2,455.58
# 018
MPN: 0072001177
GASKET
Guarnizione
from £305.22
from £305.22
This part replaces part number 009421703
# 019
MPN: 0072001470
PLATE
PIASTRINO
from £77.78
from £77.78
# 020
MPN: 009421708
RIGHT SUPPORT
SUPPORTO DX
from £202.32
from £202.32
# 020
MPN: 009421709
LEFT SUPPORT
SUPPORTO SX
from £210.98
from £210.98
# 021
MPN: 009415205
LEFT FRAME
CORNICE SX
from £294.85
from £294.85
# 022
MPN: 009415201
BOTTOM FRAME
CORNICE INFERIORE
from £265.44
from £265.44
# 023
MPN: 410845235
SPACER
from £19.89
from £19.89
