73.01.00 - Rear Hood and Wing

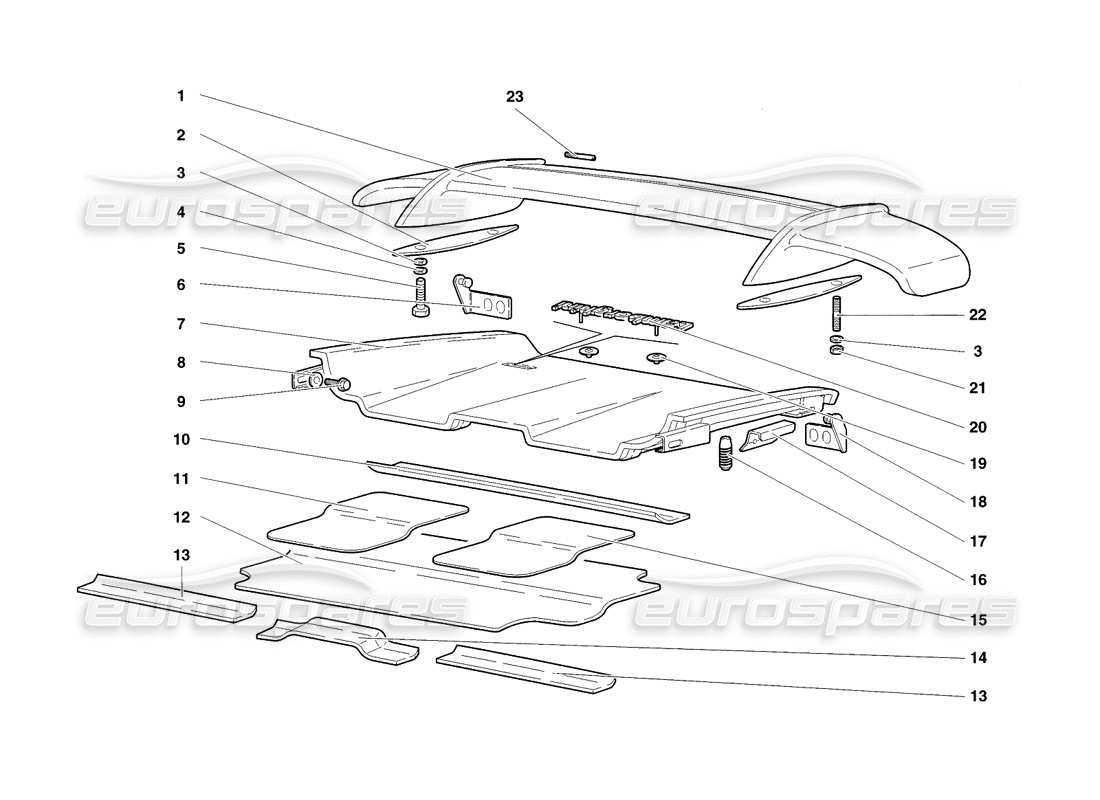

Lamborghini Diablo SV (1998) Rear Hood and Wing Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 0097001699
REAR SPOILER
from £3,154.77
from £3,154.77
# 001
MPN: 0097004614
REAR SPOILER
(Valid for JAPAN - July 1999)
from £6,346.84
from £6,346.84
# 002
MPN: 0097001880
GASKET
Guarnizione
from £116.73
from £116.73
# 003
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 004
MPN: 008410601
WASHER
RONDELLA
from £0.53
from £0.53
# 005
MPN: 008100621
SCREW
VITE
from £1.11
from £1.11
# 006
MPN: 004132637
RIGHT BRACKET
STAFFA DX
from £21.65
from £21.65
# 007
MPN: 009429001
BONNET
COFANO POST.
# 008
MPN: WHT003093
WASHER
RONDELLA
from £0.53
from £0.53
# 009
MPN: N10718801
SCREW
VITE
from £0.59
from £0.59
# 010
MPN: 009429111
CHANNEL
PROFILATO
from £18.83
from £18.83
# 011
MPN: 009455242
RIGHT LINING
ISOLAMENTO DX
from £46.61
from £46.61
# 012
MPN: 009455244
LINING
ISOLAMENTO
from £379.58
from £379.58
# 013
MPN: 009429109
CHANNEL
PROFILATO
from £37.48
from £37.48
# 014
MPN: 009429108
CHANNEL
PROFILATO
from £52.57
from £52.57
# 015
MPN: 009455243
LEFT LINING
ISOLAMENTO SX
from £46.61
from £46.61
# 016
MPN: 009460214
RUBBER PAD
RUBBER BUFFER
from £4.88
from £4.88
# 017
MPN: 009429112
CHANNEL
PROFILATO
from £32.84
from £32.84
# 018
MPN: 004132636
LEFT BRACKET
STAFFA SX
from £21.65
from £21.65
# 019
MPN: 008410305
CLIP
MOLLETTA
from £0.67
from £0.67
# 020
MPN: 006128566
ORNAMENT
SCRITTA Lamborghini
from £114.42
from £114.42
# 021
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 022
MPN: 008300663
STUD
PRIGIONIERO
from £15.72
from £15.72
# 023
MPN: 009490017
PIN
THREADED PIN
from £28.66
from £28.66
