11.01.00 - right cylinder head

Lamborghini Diablo SV (1999) Right Cylinder Head Parts Diagram

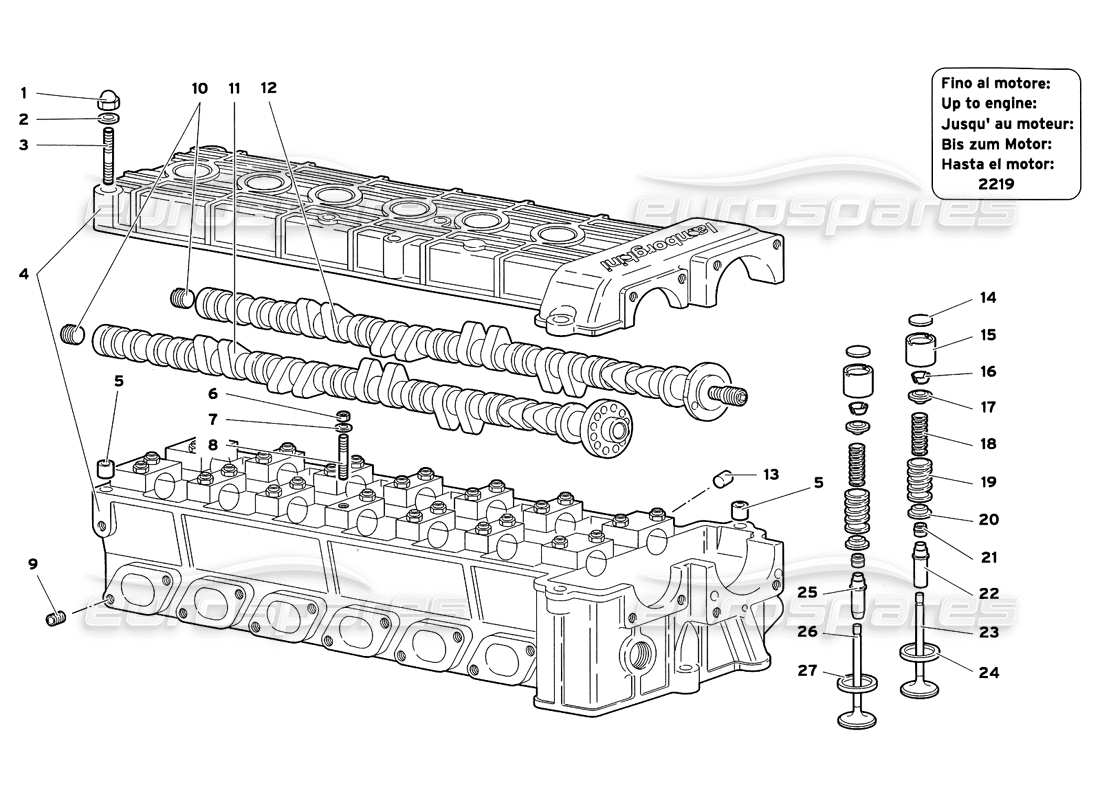

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 008200605
      NUT
      DADO
      from £1.89
      from £1.89
      # 002
      MPN: 008410602
      WASHER
      RONDELLA
      from £28.85
      from £28.85
      # 003
      MPN: 008300650
      STUD
      PRIGIONIERO
      from £7.55
      from £7.55
      # 004
      MPN: 460132000
      RIGHT CYLINDER HEAD.
      TESTA CILINDRI DX
      from £13,784.54
      from £13,784.54
      # 005
      MPN: 008800604
      BUSHING
      BOCCOLA
      Supersession
      Supersession
      # 006
      MPN: N01100637
      NUT
      DADO
      from £0.49
      from £0.49
      This part replaces part number 008200604
      # 007
      MPN: 008410602
      WASHER
      RONDELLA
      from £26.39
      from £26.39
      # 008
      MPN: 008300666
      STUD
      PRIGIONIERO
      from £26.62
      from £26.62
      # 009
      MPN: 008840802
      HELI-COIL
      HELI-COIL
      from £2.06
      from £2.06
      # 010
      MPN: 008931409
      PLUG
      TAPPO
      from £7.76
      from £7.76
      # 011
      MPN: 001232709
      camshaft
      ASSE A CAMME SCARICO
      from £10,206.34
      from £10,206.34
      # 012
      MPN: 0012001310
      camshaft
      ASSE A CAMME ASPIRAZIONE
      from £8,954.38
      from £8,954.38
      # 013
      MPN: 001122089
      DOWEL
      GRAND
      from £10.57
      from £10.57
      # 014
      MPN: 001220877
      SHIM
      SPESSORE Dl REGISTRO 3.25 MM
      Supersession
      Supersession
      # 014
      MPN: 001220878
      SHIM
      SPESSORE Dl REGISTRO 3.30 MM
      # 014
      MPN: 001220879
      SHIM
      SPESSORE Dl REGISTRO 3.35 MM
      # 014
      MPN: 001220880
      SHIM
      SPESSORE Dl REGISTRO 3.40 MM
      # 014
      MPN: 001220891
      SHIM
      SPESSORE Dl REGISTRO 3.95 MM
      # 014
      MPN: 001220892
      VALVE SHIMS
      4.00 MM
      Supersession
      Supersession
      # 014
      MPN: 001220895
      SHIM
      SPESSORE Dl REGISTRO 4.15 MM
      # 014
      MPN: 001220896
      SHIM
      SPESSORE Dl REGISTRO 4.20 MM
      Supersession
      Supersession
      # 014
      MPN: 001220897
      SHIM
      SPESSORE Dl REGISTRO 4.25 MM
      # 014
      MPN: 001220898
      SHIM
      SPESSORE Dl REGISTRO 4.30 MM
      # 014
      MPN: 001220899
      SHIM
      SPESSORE Dl REGISTRO 4.35 MM
      # 014
      MPN: 001220900
      SHIM
      SPESSORE Dl REGISTRO 4.40 MM
      # 014
      MPN: 001220901
      SHIM
      SPESSORE Dl REGISTRO 4.45 MM
      # 014
      MPN: 001220902
      SHIM
      SPESSORE Dl REGISTRO 4.50 MM
      # 014
      MPN: 001220903
      SHIM
      SPESSORE Dl REGISTRO 4.55 MM
      # 014
      MPN: 001220904
      SHIM
      SPESSORE Dl REGISTRO 4.60 MM
      # 014
      MPN: 001220905
      SHIM
      SPESSORE Dl REGISTRO 4.65 MM
      # 014
      MPN: 001220906
      SHIM
      SPESSORE Dl REGISTRO 4.70 MM
      # 014
      MPN: 07M109320D
      SHIM
      SPESSORE Dl REGISTRO 3.45 MM
      from £6.83
      from £6.83
      # 014
      MPN: 07M109320E
      SHIM
      SPESSORE Dl REGISTRO 3.50 MM
      from £33.81
      from £33.81
      # 014
      MPN: 07M109320F
      SHIM
      SPESSORE Dl REGISTRO 3.55 MM
      from £6.83
      from £6.83
      # 014
      MPN: 07M109320G
      SHIM
      SPESSORE Dl REGISTRO 3.60 MM
      from £33.81
      from £33.81
      # 014
      MPN: 07M109320H
      SHIM 3.65 MM
      from £35.11
      from £35.11
      # 014
      MPN: 07M109320J
      SHIM
      SPESSORE Dl REGISTRO 3.70 MM
      from £33.81
      from £33.81
      # 014
      MPN: 07M109320K
      SHIM
      SPESSORE Dl REGISTRO 3.75 MM
      from £33.81
      from £33.81
      # 014
      MPN: 07M109320L
      SHIM
      SPESSORE Dl REGISTRO 3.80 MM
      from £33.81
      from £33.81
      # 014
      MPN: 07M109320M
      SHIM
      SPESSORE Dl REGISTRO 3.85 MM
      from £6.83
      from £6.83
      # 014
      MPN: 07M109320N
      SHIM
      SPESSORE Dl REGISTRO 3.90 MM
      from £33.81
      from £33.81
      # 014
      MPN: 07M109320R
      SHIM 4.05 MM
      from £6.83
      from £6.83
      # 014
      MPN: 07M109320S
      SHIM
      SPESSORE Dl REGISTRO 4.10 MM
      from £33.81
      from £33.81
      # 015
      MPN: 07M109309
      TAPPET
      PUNTERIA
      from £22.27
      from £22.27
      # 016
      MPN: 001235955
      TAPPET LOCK CONE
      SEMICONO PUNTERIE
      # 017
      MPN: 07M109641
      TAPPET PLATE
      from £11.59
      from £11.59
      # 018
      MPN: 07M109633A
      SPRING
      MOLLA
      from £3.77
      from £3.77
      # 019
      MPN: 07M109623A
      SPRING
      MOLLA
      from £11.59
      from £11.59
      # 020
      MPN: 001220993
      TAPPET PLATE
      PIATTELLO PUNTERIA INFERIORE
      Supersession
      Supersession
      # 021
      MPN: 07M109675
      SEAL
      from £9.56
      from £9.56
      # 022
      MPN: 001238321
      GUIDE
      GUIDA VALVOLA ASPIRAZIONE
      from £44.44
      from £44.44
      # 023
      MPN: 07M109601
      INTAKE VALVE
      VALVOLA ASPIRAZIONE
      from £44.02
      from £44.02
      # 024
      MPN: 001234790
      VALVE SEAT
      SEDE VALVOLA ASPIRAZIONE
      # 025
      MPN: 001238320
      VALVE GUIDE
      GUIDA VALVOLA SCARICO
      from £54.64
      from £54.64
      # 026
      MPN: 07M109611
      EXHAUST VALVE
      VALVOLA SCARICO
      from £63.21
      from £63.21
      # 027
      MPN: 001234791
      VALVE SEAT
      SEDE VALVOLA SCARICO
      Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
