![lamborghini diablo sv (1999) accessories for left cylinder head parts diagram](/img/ixMAAMTaOW7uT8qyGPbv0_clRVCGaBQapLs9myu-X-SKZiccpEpRYRo7DAM%3D/lamborghini-diablo-sv-(1999)-part-diagram-11.04.01.webp)

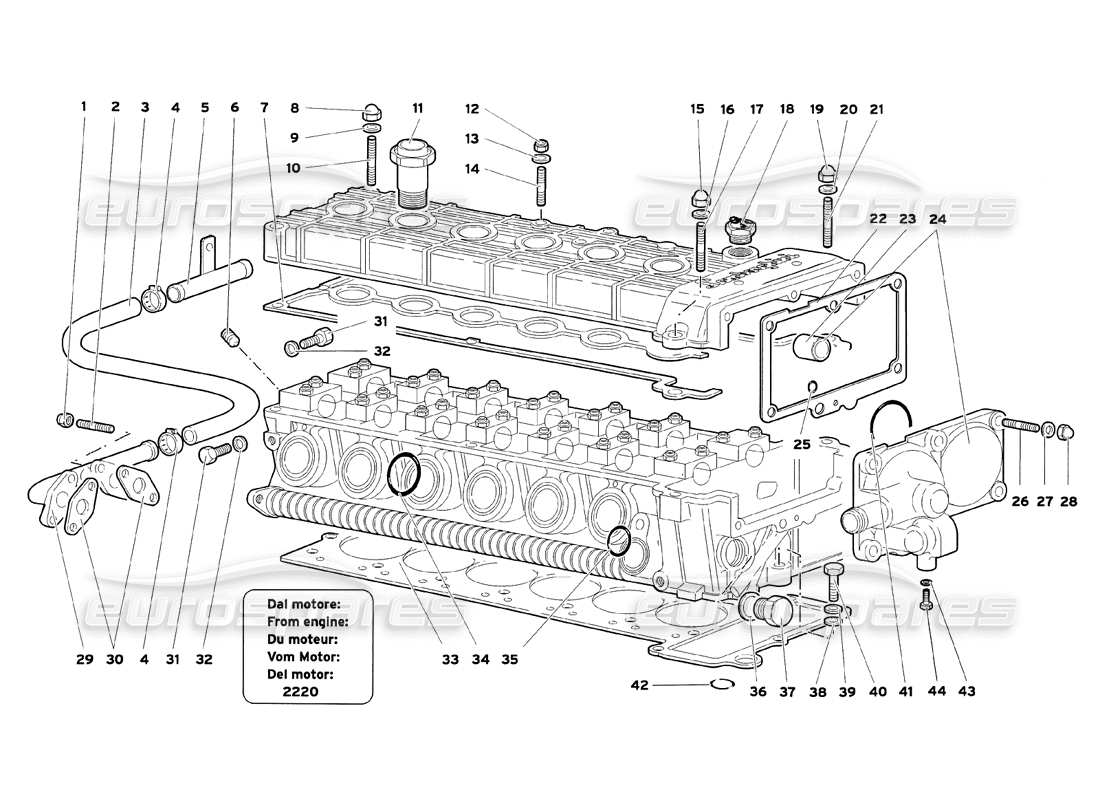

11.04.01 - accessories for left cylinder head
Lamborghini Diablo SV (1999) Accessories for Left Cylinder Head Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 008200605
NUT
DADO
from £1.74
from £1.74
# 002
MPN: 008300610
STUD
PRIGIONIERO
from £15.47
from £15.47
# 003
MPN: 410819370
PIPE
Tubo
from £38.09
from £38.09
# 004
MPN: 008832003
STRAP
FASCETTA
from £27.78
from £27.78
# 005
MPN: 001730064
CONNECTION
GIUNZIONE INTERMEDIA
from £14.85
from £14.85
# 006
MPN: 008700644
PLUG
TAPPO
Supersession
Supersession
# 007
MPN: 001103695
GASKET
Guarnizione
# 008
MPN: 008200605
NUT
DADO
from £1.89
from £1.89
# 009
MPN: 008410602
WASHER
RONDELLA
from £28.85
from £28.85
# 010
MPN: 008300650
STUD
PRIGIONIERO
from £7.55
from £7.55
# 011
MPN: 001134281
UNION
BOCCHETTONE
from £128.52
from £128.52
# 012
MPN: 008200606
NUT
DADO
Supersession
Supersession
# 013
MPN: 008400606
WASHER
RONDELLA
Supersession
Supersession
# 014
MPN: 008300613
STUD
PRIGIONIERO
from £3.07
from £3.07
# 015
MPN: 008200605
NUT
DADO
from £1.89
from £1.89
# 016
MPN: 008410602
WASHER
RONDELLA
from £28.85
from £28.85
# 017
MPN: 008300637
STUD
PRIGIONIERO
from £9.00
from £9.00
# 018
MPN: 001136032
CAP
TAPPO INTRODUZIOWt
from £8.79
from £8.79
# 019
MPN: 008200605
NUT
DADO
from £1.89
from £1.89
# 020
MPN: 008410602
WASHER
RONDELLA
from £28.85
from £28.85
# 021
MPN: 008300651
STUD
PRIGIONIERO
from £7.42
from £7.42
# 022
MPN: 0011004551
GASKET
Guarnizione
from £20.20
from £20.20
# 023
MPN: 0011000038
BUSHING
BOCCOLA
from £31.44
from £31.44
# 024
MPN: 0011006399
VENT PIPE - COVER
COPERCHIO - SFIATO COMPLETO
from £465.97
from £465.97
# 025
MPN: 008600906
SEAL
ANELLO TENUTA
Supersession
Supersession
# 026
MPN: WHT003028
STUD
PRIGIONIERO
from £12.54
from £12.54
# 027
MPN: 008410810
WASHER
RONDELLA
Supersession
Supersession
# 028
MPN: 008200816
NUT
DADO
from £2.90
from £2.90
# 029
MPN: 001734153
CONNECTION
RACCORDO
from £417.62
from £417.62
# 030
MPN: 001121254
GASKET
Guarnizione
from £5.23
from £5.23
# 031
MPN: 008100839
SCREW
VITE
Supersession
Supersession
# 032
MPN: 008400818
WASHER
RONDELLA
Supersession
Supersession
# 033
MPN: 0011000988
GASKET
Guarnizione
from £170.68
from £170.68
This part replaces part number 001129853 - and 1 more. Click to view details
# 034
MPN: 008604703
SEAL
ANELLO TENUTA
from £5.15
from £5.15
This part replaces part number 008604701
# 035
MPN: 008603503
SEAL
ANELLO TENUTA
from £2.61
from £2.61
This part replaces part number 008603501
# 036
MPN: 008402609
WASHER
RONDELLA
Supersession
Supersession
# 037
MPN: 07M103035
PLUG
from £38.19
from £38.19
# 038
MPN: 008400806
WASHER
RONDELLA
from £0.54
from £0.54
# 039
MPN: 008410806
WASHER
RONDELLA
Supersession
Supersession
# 040
MPN: 008100807
SCREW
VITE
from £0.53
from £0.53
# 041
MPN: 008606205
SEAL
ANELLO TENUTA
from £2.69
from £2.69
This part replaces part number 008606201
# 042
MPN: 008601203
SEAL
ANELLO TENUTA
Supersession
Supersession
# 043
MPN: WHT003041
WASHER
RONDELLA
from £0.54
from £0.54
This part replaces part number 008400609 - and 1 more. Click to view details
# 044
MPN: 008100631
SCREW
VITE
from £0.54
from £0.54
