lamborghini diablo sv (1999) timing system parts diagram

12.01.00 - timing system

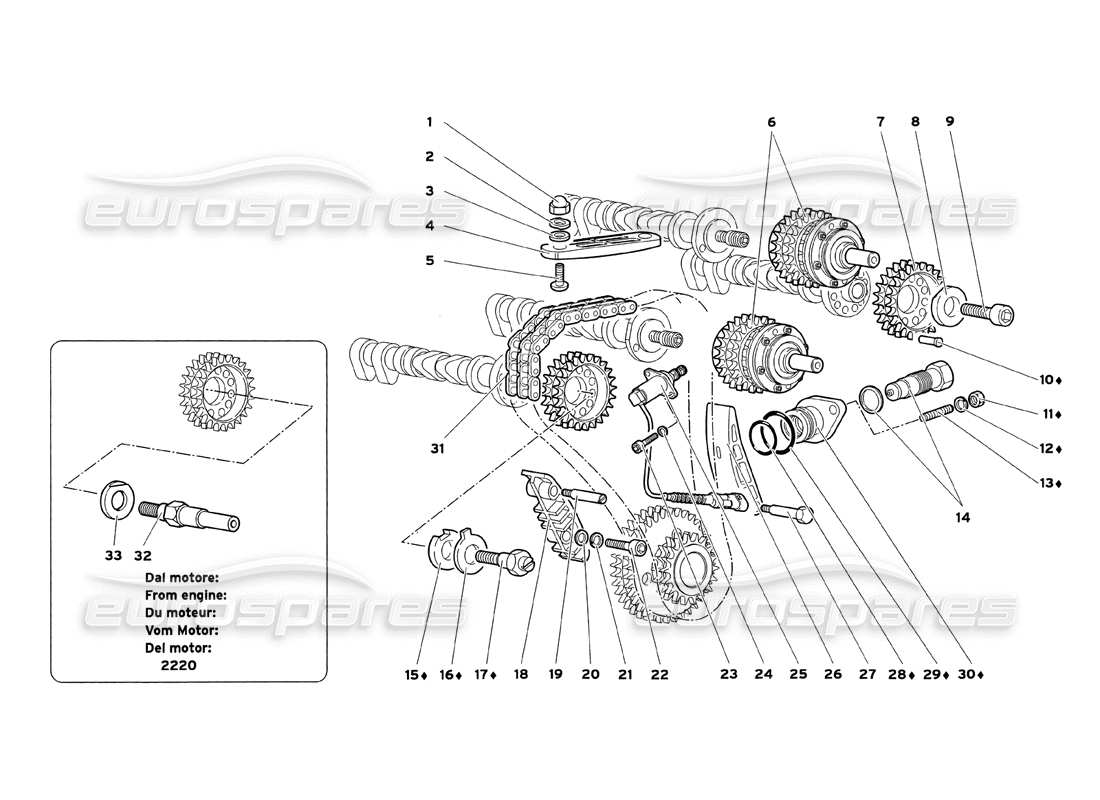

Lamborghini Diablo SV (1999) Timing System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
      #
      Part number
      Description
      Price
      # 001
      MPN: 008200605
      NUT
      DADO
      from £1.74
      from £1.74
      # 002
      MPN: 008410602
      WASHER
      RONDELLA
      from £28.28
      from £28.28
      # 003
      MPN: WHT003041
      WASHER
      RONDELLA
      from £0.53
      from £0.53
      This part replaces part number 008400609 - and 1 more. Click to view details
      # 004
      MPN: 07M109513
      BRAKE PAD
      PATTING
      from £465.18
      from £465.18
      # 005
      MPN: 008700682
      SCREW
      VITE
      from £0.53
      from £0.53
      # 006
      MPN: 07M109083
      VARIATOR
      VARIATOR
      from £3,700.68
      from £3,700.68
      # 007
      MPN: 001232198
      GEAR
      INGRANAGGIO
      from £371.44
      from £371.44
      # 008
      MPN: 001237892
      WASHER
      RONDELLA
      from £39.95
      from £39.95
      # 009
      MPN: 008701031
      SCREW
      VITE
      from £6.39
      from £6.39
      This part replaces part number 001220990
      # 010
      MPN: 001201964
      DOWEL
      (Eliminate as from part N° 2220) GRAND
      from £28.78
      from £28.78
      # 011
      MPN: N01100637
      NUT
      (Eliminate as from part N° 2220) DADO
      from £0.53
      from £0.53
      This part replaces part number 003303099 - and 1 more. Click to view details
      # 012
      MPN: 008410602
      WASHER
      (Eliminate as from part N° 2220) RONDELLA
      from £28.28
      from £28.28
      # 013
      MPN: 008300613
      STUD
      (Eliminate as from part N° 2220) PRIGIONIERO
      from £3.07
      from £3.07
      # 014
      MPN: 07M109255
      CHAIN STRETCHER
      TENDICATENA
      from £514.46
      from £514.46
      # 015
      MPN: 001219761
      WASHER
      (Eliminate as from part N° 2220) RONDELLA
      from £58.37
      from £58.37
      # 016
      MPN: 001219762
      LOCKPLATE
      (Eliminate as from part N° 2220)PIASTRINA SICUREZZA
      from £27.70
      from £27.70
      # 017
      MPN: 001233315
      SCREW
      (Eliminate as from part N° 2220) VITE
      from £76.54
      from £76.54
      # 018
      MPN: 07M109469
      BRAKE PAD
      PATTING
      from £30.18
      from £30.18
      # 019
      MPN: 001232837
      PIN
      Supersession
      Supersession
      # 020
      MPN: 008400816
      WASHER
      RONDELLA
      Supersession
      Supersession
      # 021
      MPN: 008410820
      WASHER
      RONDELLA
      Supersession
      Supersession
      # 023
      MPN: 008700605
      SCREW
      VITE
      from £0.53
      from £0.53
      # 024
      MPN: 008410602
      WASHER
      RONDELLA
      from £28.28
      from £28.28
      # 025
      MPN: 0012001214
      ELECTRO-VALVE
      ELETTROVALVOLA
      from £1,599.59
      from £1,599.59
      # 026
      MPN: 07M109508
      BRAKE PAD
      PATTING
      from £143.54
      from £143.54
      # 027
      MPN: 001232851
      PIN
      PERNO
      # 028
      MPN: 008602602
      SEAL
      from £0.53
      from £0.53
      # 029
      MPN: 008603702
      SEAL
      (Eliminate as from part N° 2220) ANELLO TENUTA
      from £0.58
      from £0.58
      # 030
      MPN: 001132218
      FLANGE
      (Eliminate as from part N° 2220) FLANGIA
      from £193.95
      from £193.95
      # 031
      MPN: 0012001138
      TIMING CHAIN
      CATENA SUPERIORE DISTRIBUZ.
      Supersession
      Supersession
      # 032
      MPN: 0012003892
      SMALL SHAFT
      ALBERINO
      from £123.54
      from £123.54
      # 033
      MPN: 0012003956
      WASHER
      RONDELLA
      from £13.11
      from £13.11
